MikroElektronika
mikromedia for Tiva
mikromedia for Tiva
SKU:MIKROE-1575
Couldn't load pickup availability
Share

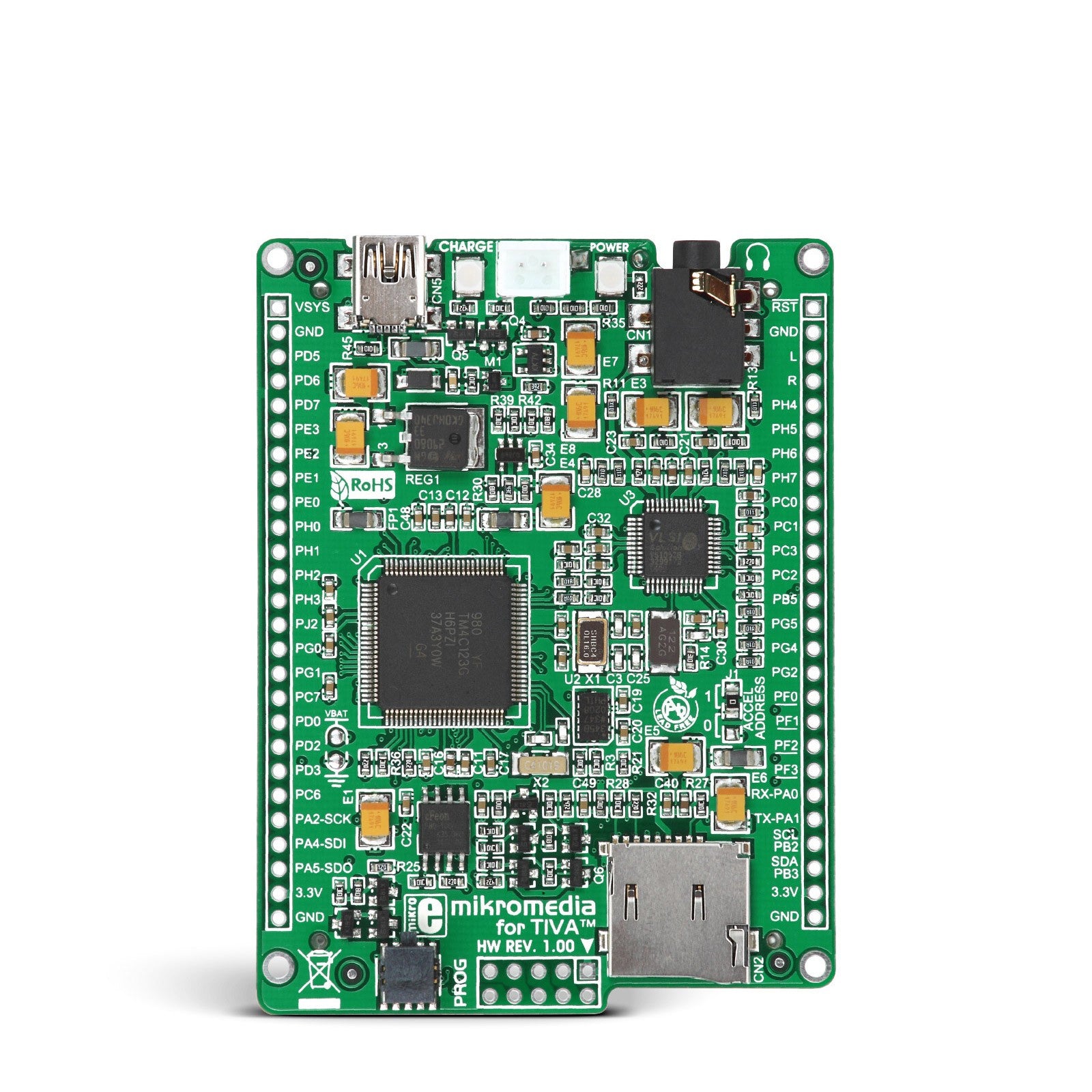

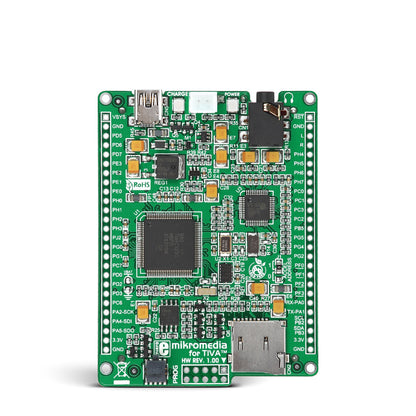

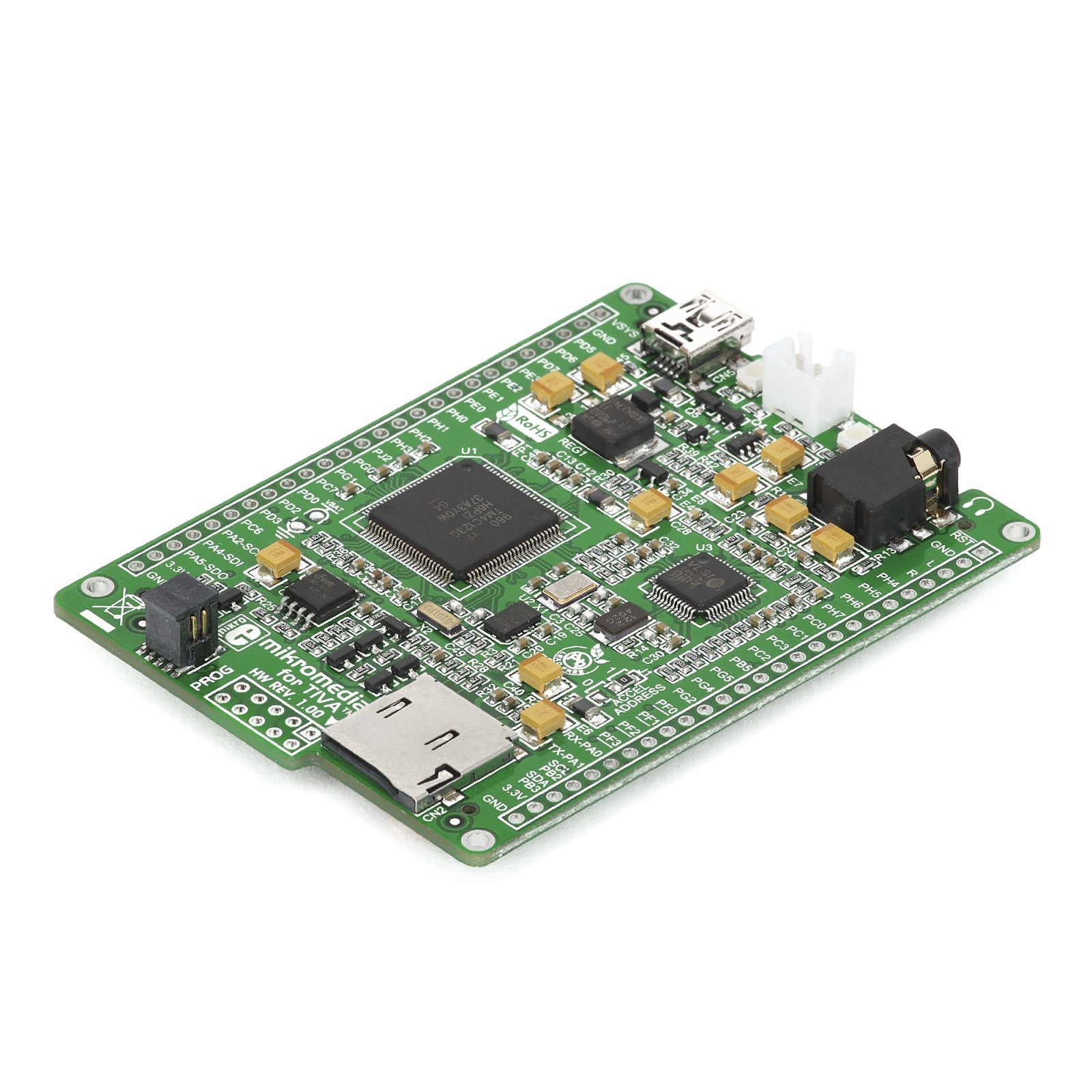

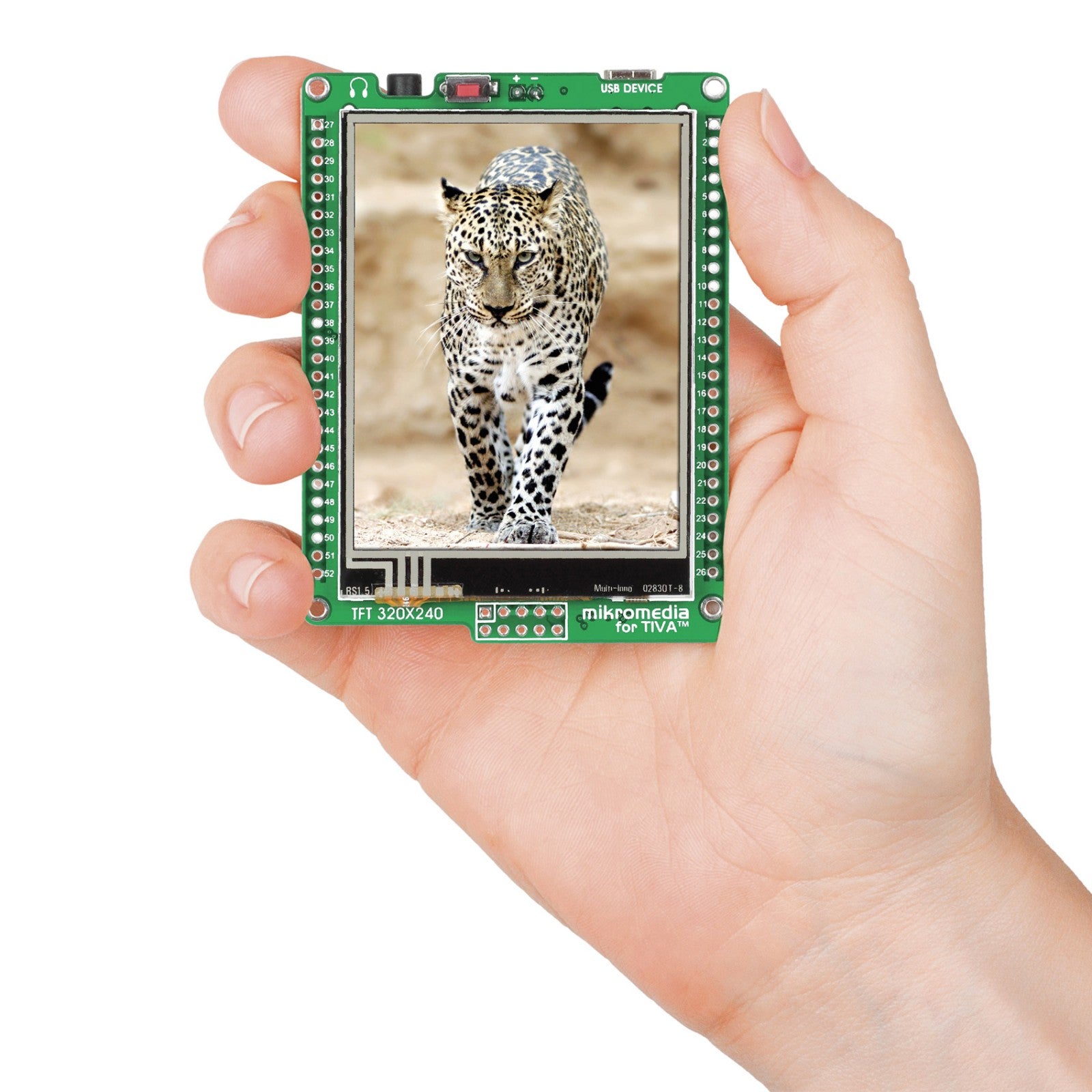

Start building your first applications with intuitive, user-friendly menus and dashboards using Ti Tiva ARM Cortex-M4 microcontroller. This board provides a compact high-quality multimedia development platform for TM4C123GH6PZ device.

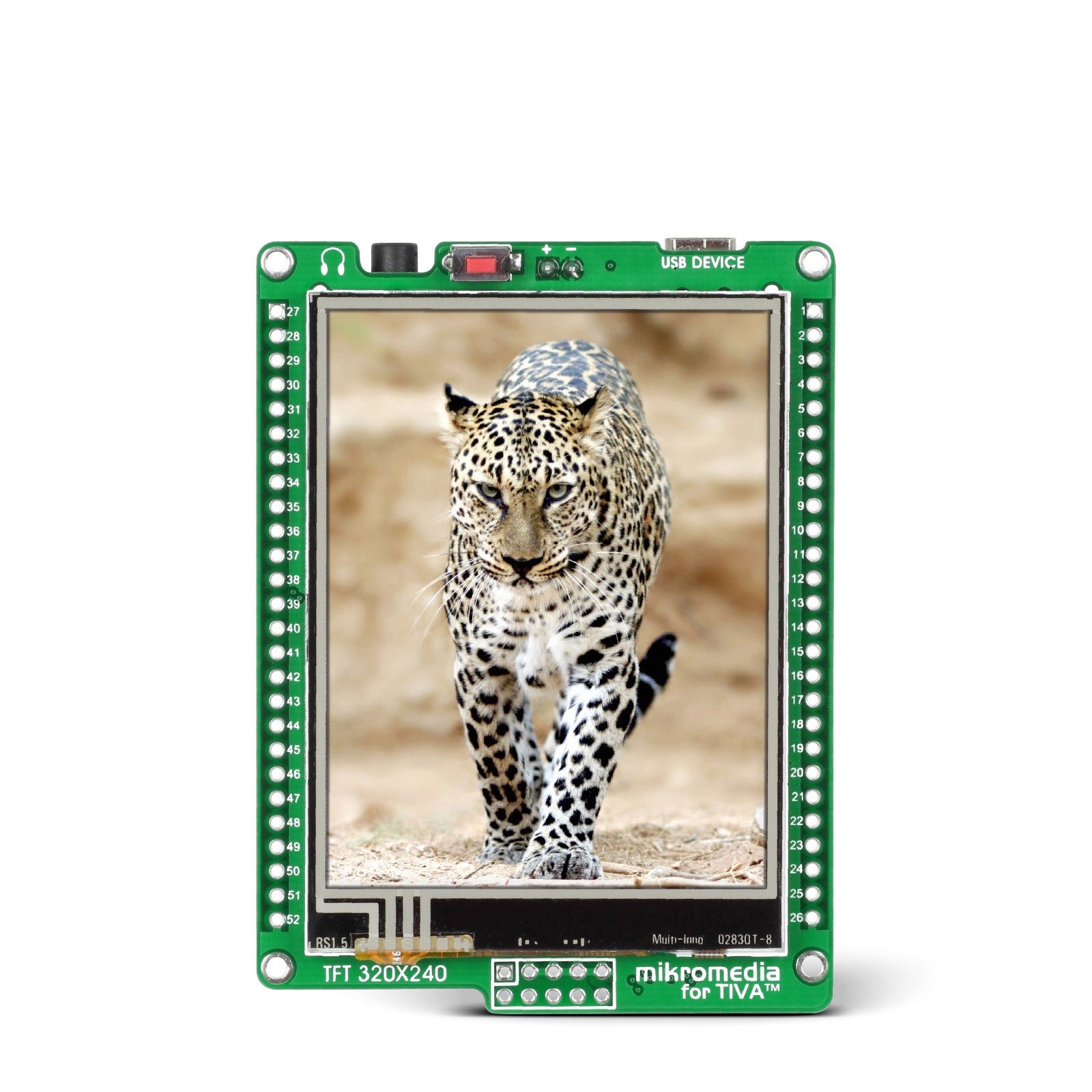

Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.
Programming. On-board microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. If you need a debugger use mikroProg™ for Tiva™.
Compilers. mikromedia for Tiva is fully supported by mikroC, mikroBasic and mikroPascal compilers for ARM. Compilers come with dozens of examples that demostrate every feature of the board.
GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.
Specification
Applications | Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment. |
Displays | TFT full-color |
Display size | 2.8" |
Resolution | 320x240px |
Graphic controller | ILI9341 |
Touch Screen | Resistive |
Architecture | ARM (32-bit) |
MCU | TM4C123GH6PZ |
MCU speed | 100 DMIPS, 80 MHz, 1.25 DMIPS/MHz |
MCU Memory | 256 KB of Flash, 32 KB of SRAM |
Programming | Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector. |
Storage | 8 Mbit Serial Flash, microSD card slot |
Sound and Audio | VS1053 MPEG audio decoder |
Peripherals include | USB connector, Accelerometer, Battery Charger |
Expandability | Two 1x26 headers, mikromedia standard pinout |
Integration | Mounting holes |
Input Voltage | 5V (via USB) |
