MikroElektronika

SpeakUp click

SpeakUp click

SKU:MIKROE-1534

Regular price Rs. 4,099.00
Regular price Sale price Rs. 4,099.00
Sale Sold out
Tax included.

Out of stock

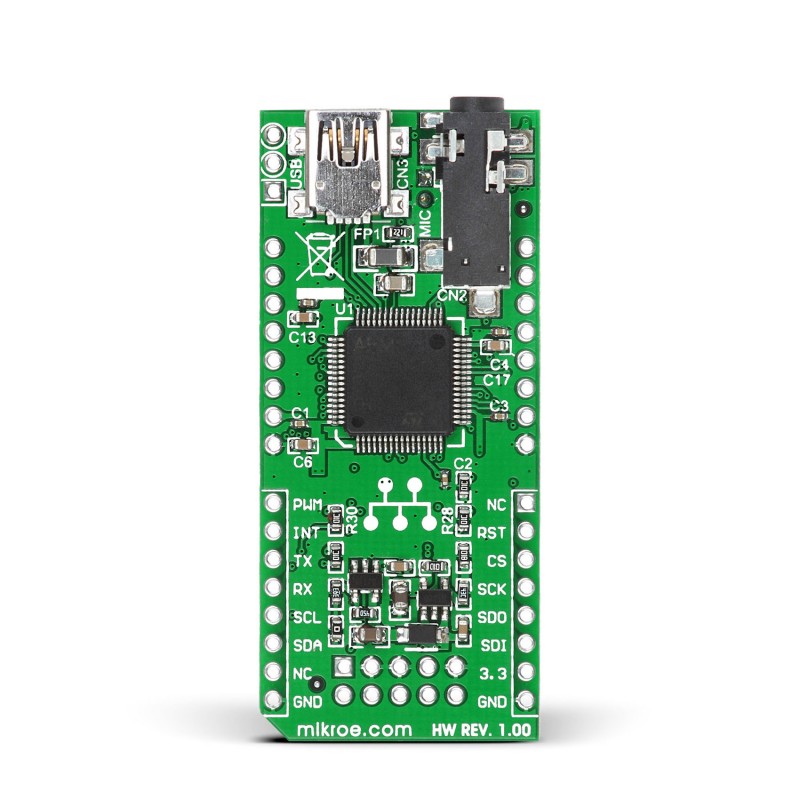

The SpeakUp is a speech recognition click board. You can set it up to recognize over 200 different voice commands and have the on-board MCU carry them out instantly.Using a simple interface on your computer, you record a word or phrase (up to 2 seconds) and assign it an instruction. Repeat for as many commands as you need.When you put it to work, it listens to what you're saying, matches the sound to one of the pre-recorded commands, and triggers the specified action which the on-board MCU executes.

Specification

Type Speech recognition,Audio
Applications Voice controlled robots, home automation devices or any human-machine interface
On-board modules On-board microphone, VS1053 IC with a built in stereo-audio codec, STM32F415RG MCU
Key Features STANDALONE MODE: On-board MCU directly controls external devices using 12 user programmable GPIOs CLICK MODE: Sends index of the matched voice command to a selectable interface: USB or UART

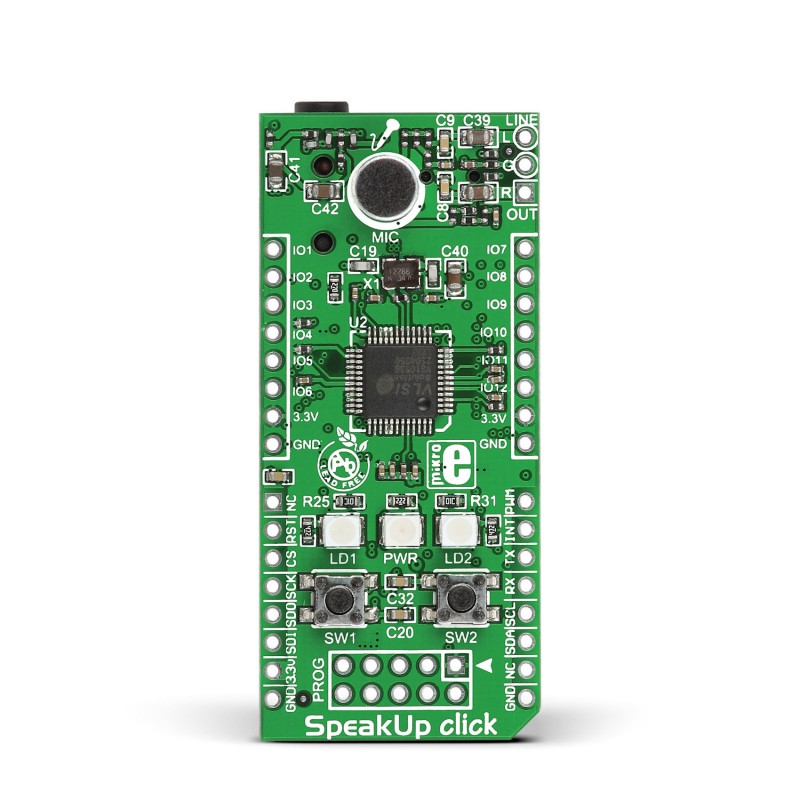

Key Benefits Along with its key components, the tiny click board packs other useful bits like two buttons for recording or deleting voice commands manually, three signal LEDs give recognition feedback and indicate power.
Interface SPI,PWM,UART,I2C
Input Voltage 3.3V

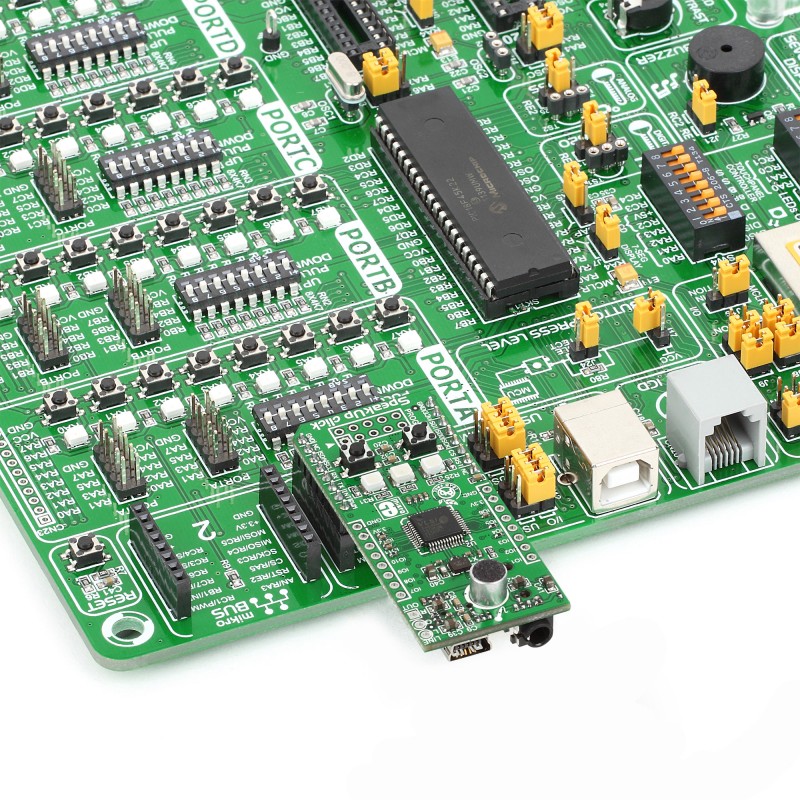

Compatibility mikroBUS

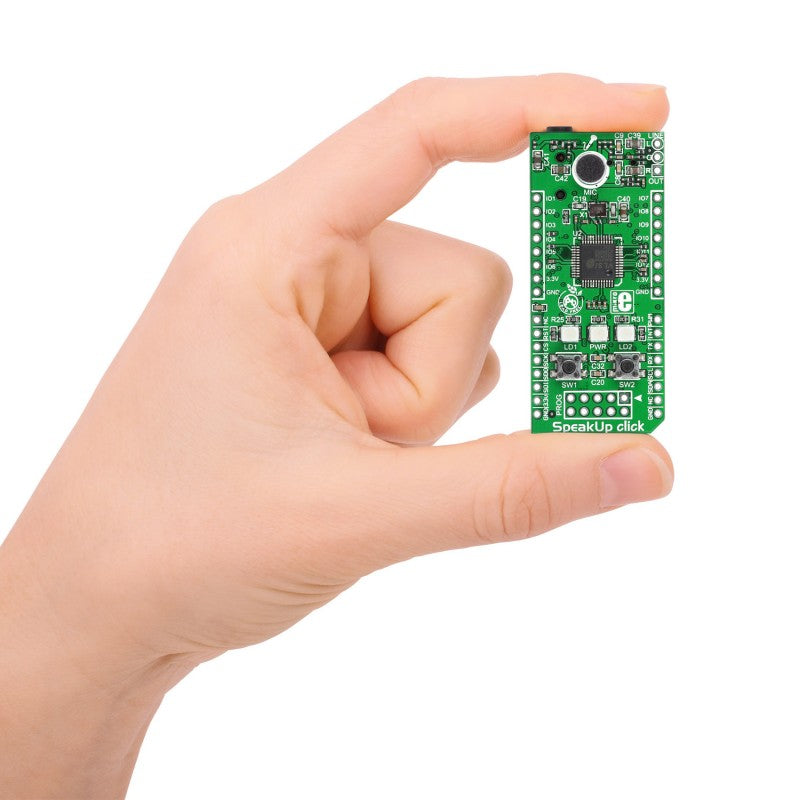

Click board size L (57.15 x 25.4 mm)
