Stepper click

Stepper click

SKU:MIKROE-1528

Regular price Rs. 1,889.00
Regular price Sale price Rs. 1,889.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

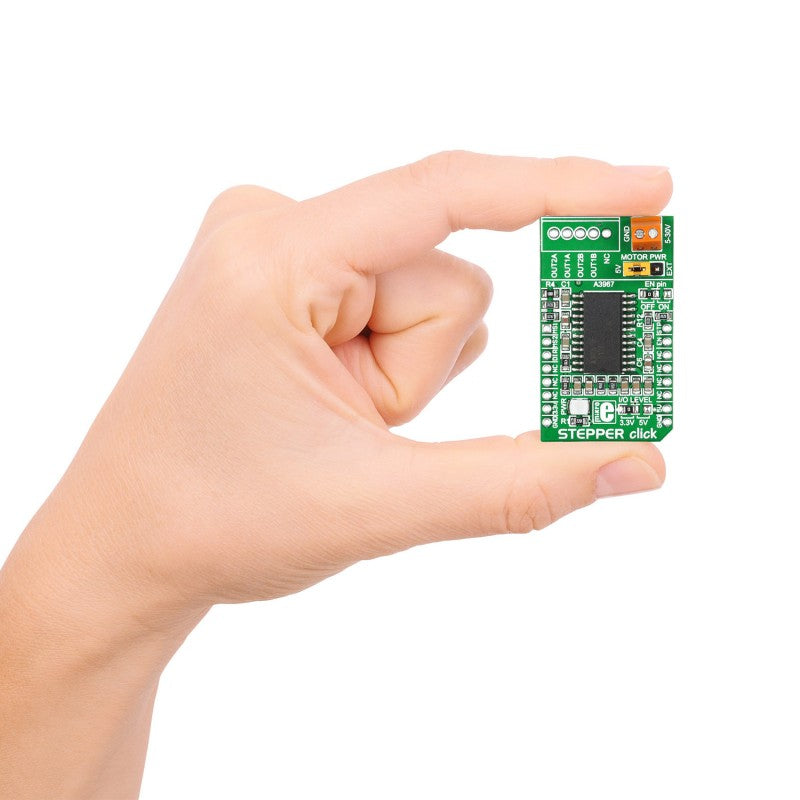

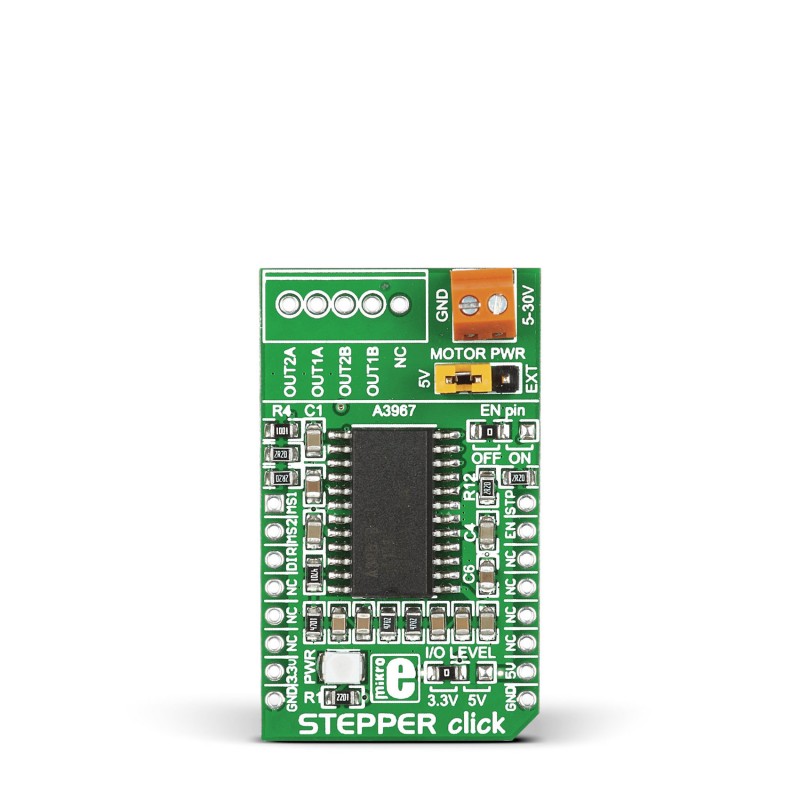

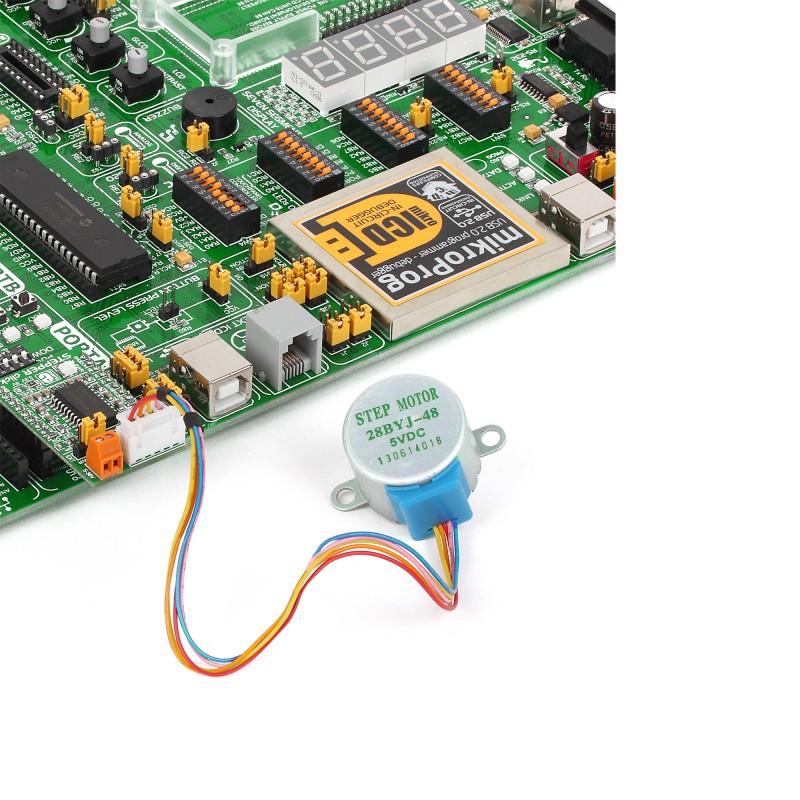

Stepper click is a stepper motor driver board in mikroBUS form factor. It features the A3967SLBT microstepping motor driver with a built-in translator. You can use it to drive bipolar step motors in full-, half-, quarter- and eighth-step modes with output drive capability of 30V and about ±500 mA. The package includes a B5B-XH-A connector (delivered unsoldered) to easily plug in or plug out your stepper motor. Two screw terminals are also provided as an alternative connecting option. The board is designed to use 3.3V or 5V power supplies. A LED diode serves as a power indicator.

Specification

Type Stepper
Applications Board is designed for driving bipolar step motors in full-, half-, quarter- and eighth-step modes
On-board modules A3967SLBT microstepping motor driver with a built-in translator
Key Features Maximum output drive capability is 30V and about ±500 mA
Key Benefits Optional B5B-XH-A connector included in package (unsoldered) makes it easy to plug-in or plug-out your motor
Interface GPIO
Input Voltage 3.3V or 5V

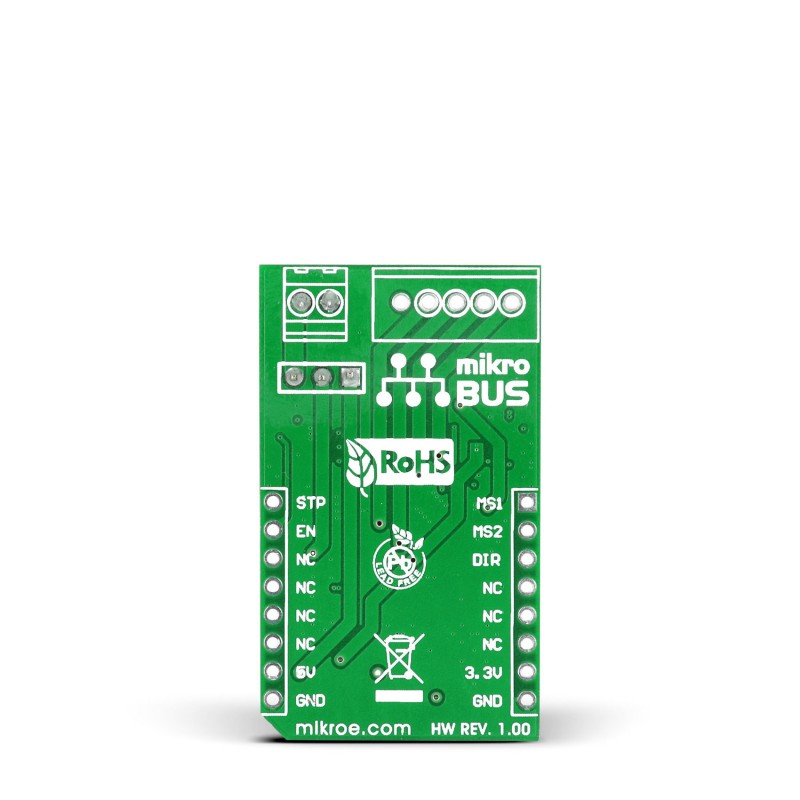

Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
