MikroElektronika

Pi click shield

Pi click shield

MIKROE-1513

Rs. 629.00
Rs. 629.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

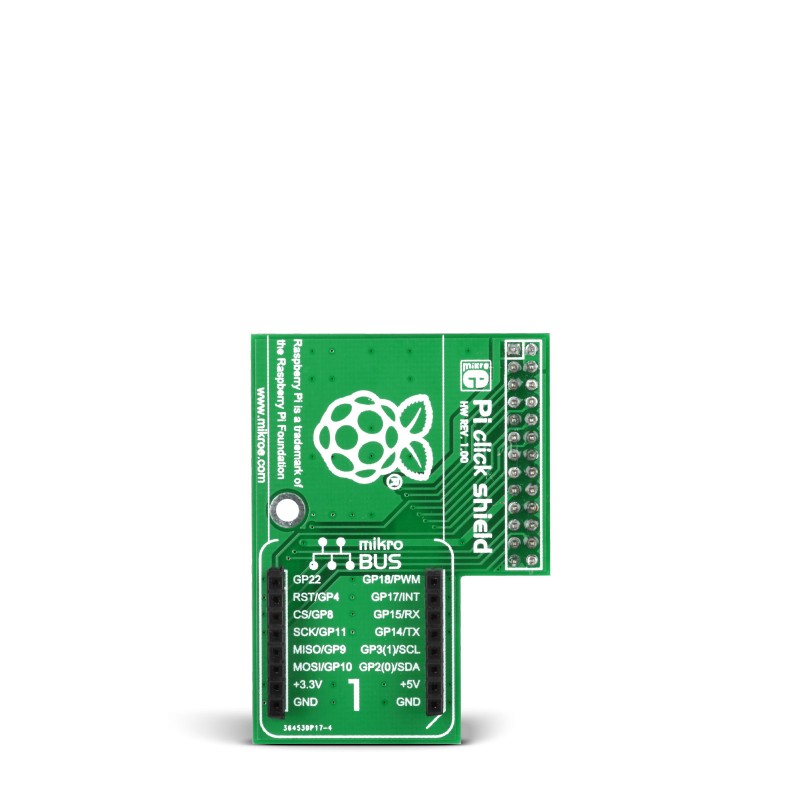

Pi click shield is an extension for Raspberry Pi®, the low-cost mini-computer. It's a simple shield with a mikroBUS™ host socket to make your Raspberry Pi compatible with more than 70 different types of click™ boards. The click board enhanced Pi can have GSM, GPS, WiFi, ZigBee, Bluetooth and a whole range of other, more unusual functionalities, like thunder detection, proximity and color sensing etc. Software examples for click Boards are available on Libstock, giving you a repository of working code to use as it is, or as a starting point for your own projects. The package includes two 1x8 and a single 2x13 female socket, as well as a 12mm distancer with two screws.

Specification

Type Shield
Applications Pi click shield allows you to use click add-on boards from MikroElektronika on your favorite Raspberry Pi® mini-computer
On-board modules mikroBUS host socket
Key Features Two 1x8 female sockets on top side form a mikroBUS™ host connector. Single 2x13 female socket on the opposite side is used for connecting with Raspberry Pi®
Key Benefits The shield without connectors can be soldered directly to Raspberry Pi’s connector, keeping your design low-profile and compact
Integration 2x13 female socket
Input Voltage 3.3V or 5V
Compatibility Raspberry Pi
