MikroElektronika
ccRF click
ccRF click
SKU:MIKROE-1435
Couldn't load pickup availability
Share

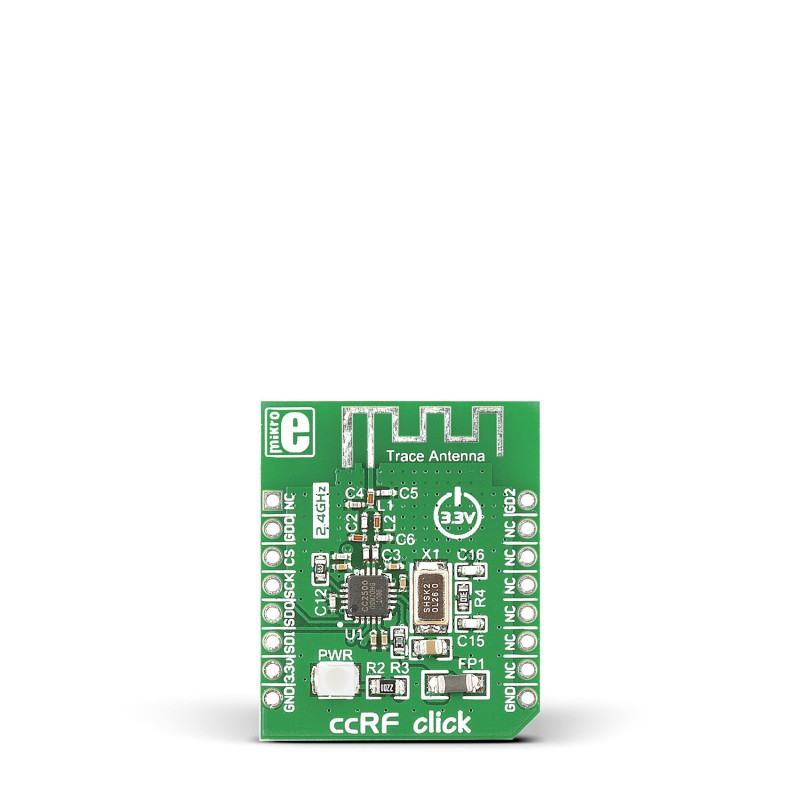

ccRF click is a low-power 2.4 GHz transceiver designed for the 2400- 2483.5 MHz ISM and SRD frequency bands. It features CC2500 Low-Power 2.4 GHz RF transceiver as well as PCB trace antenna. The CC2500 is integrated with a highly configurable baseband modem that supports various modulation formats and has data rate up to 500 kBaud. Maximum device range is up to 20 meters in open space. ccRF click communicates with the target microcontroller via mikroBUS SPI, RST and PWM lines. The board is designed to use 3.3V power supply only. All these features make this board ideal for consumer electronics, wireless audio, wireless keyboard and mouse RF remote controls...
Specification
Type | RF 2.4GHz |
Applications | This board is ideal for consumer electronics, wireless audio, wireless keyboard and mouse RF remote controls and many more |
On-board modules | CC2500 Low-Power 2.4 GHz RF transceiver and PCB trace antenna |
Key Features | High sensitivity (-104 dBm at 2.4 kBaud, 1% packet error rate), frequency range: 2400 - 2483.5 MHz, programmable data rate from 1.2 to 500 kBaud |
Key Benefits | Low current consumption (13.3 mA in RX, 250 kBaud) |
Interface | GPIO,SPI |
Input Voltage | 3.3V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
