MikroElektronika
mikromedia Plus for STM32 Shield
mikromedia Plus for STM32 Shield
SKU:MIKROE-1417
Regular price
Rs. 3,679.00
Regular price
Sale price
Rs. 3,679.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share

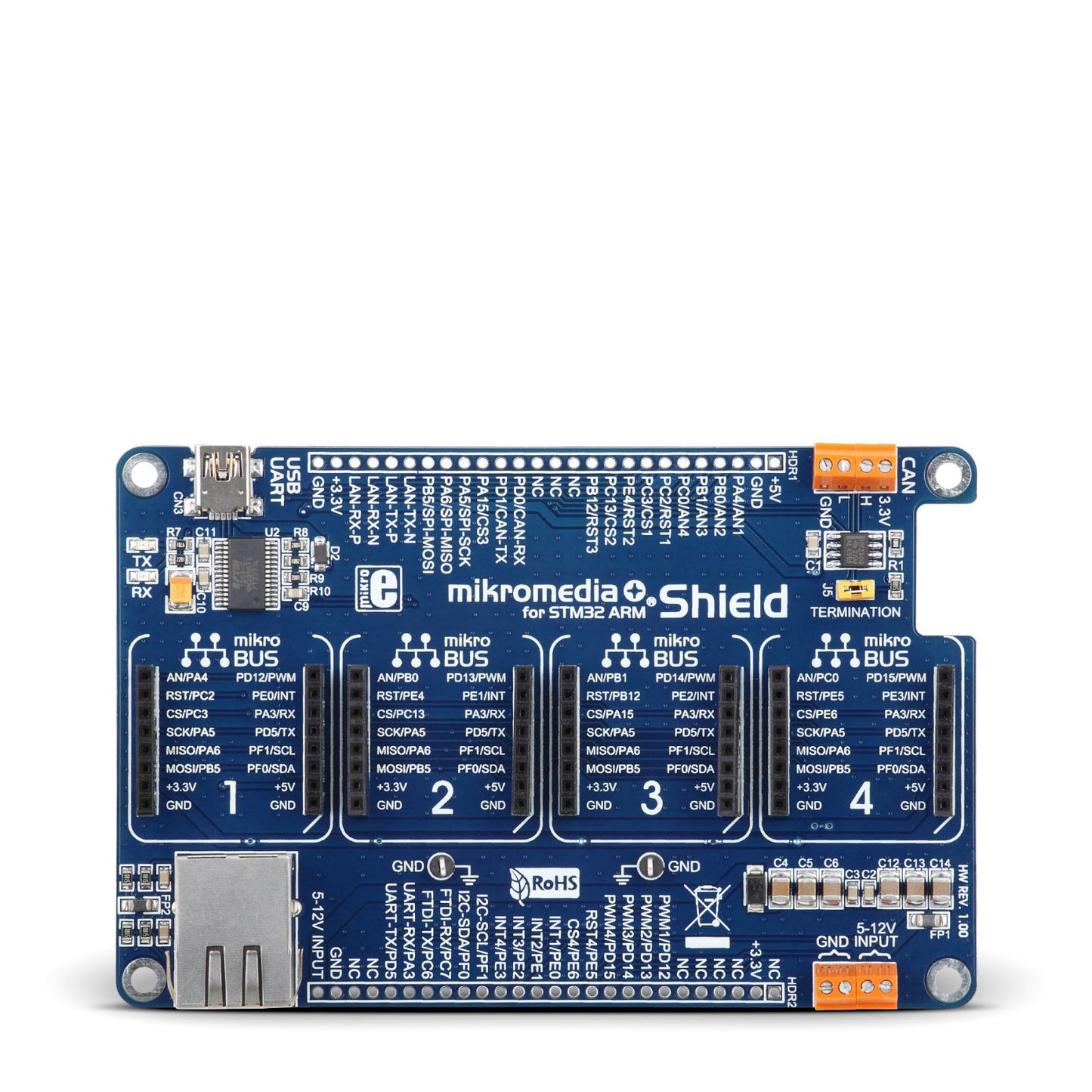

Expand the base functionality of your mikromedia+ for STM32 with a shield that features 4 mikroBUS host sockets. Easily add among 50+ Click boards, including WiFi, ZigBee, RS485, and other communication, measurement boards or sensors. Shield provides physical layer for CAN interface, Ethernet Connector, as well as USB-UART module. Two separate 1x26 pin female sockets come with the board package.
Specification
Type | Shield |
Applications | Shield provides the most convenient way for connecting Click additional boards with your mikromedia plus for STM32 |
Key Benefits | Compatible with mikromedia+ for STM32 board. Simple integration using provided female 1x26 connectors |
Expandability | 4 mikroBUS host sockets, Two 1x26 pin headers (mikromedia pinout) |
Integration | Mounting holes |
Input Voltage | 5V (Via USB) or 5-12V DC (via external adapter) |
Compatibility | mikromedia |
