MikroElektronika
SmartGPS Board
SKU: MIKROE-1381
₹ 5,209.00
Taxes included.
Shipping calculated at checkout.
Description

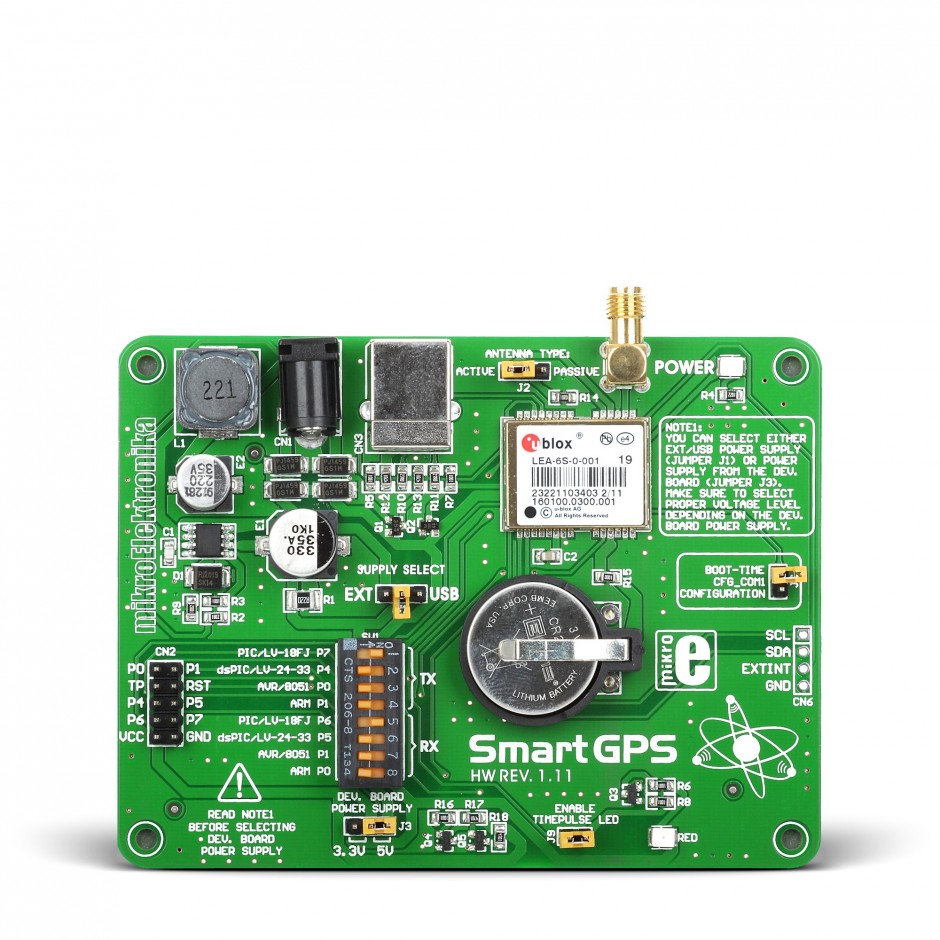

SmartGPS Board is a compact solution for adding GPS functionality to your device. It features popular ublox LEA-6S module, power supply circuit, USB and antenna connectors, li-polymer battery for data retention and IDC10 header for connection with the target board. Board has DIP switches for flexible choice of communication lines with various development systems. Communication is done using UART or USB interface. Board can be used with a microcontroller, or data can be acquired using PC application through USB. All communication lines can be driven with 3.3V or 5V logic.
Specification
| Type | GPS/GNSS |
| Applications | Easily acquire GPS data with minimum settings and with lots of flexibility. Board features one of the most popular LEA modules on the market |
| On-board modules | LEA-6S, USB and antenna connectors, li-polymer battery for data retention and IDC10 header, DIP switches |
| Key Features | Accelerated acquisition of weak signals. Once acquired, satellites are passed on to a power-optimized dedicated tracking engine. Simultaneously track up to 16 satellites while searching for new ones |
| Key Benefits | Supports active and passive antennas. Three separate powering options |
| Interface | UART |
| Input Voltage | 3.3V or 5V |
| Compatibility | IDC10 |
