MikroElektronika

MINI-M4 for Stellaris

MINI-M4 for Stellaris

SKU:MIKROE-1368

Regular price Rs. 3,049.00
Regular price Sale price Rs. 3,049.00
Sale Sold out
Tax included.

Out of stock

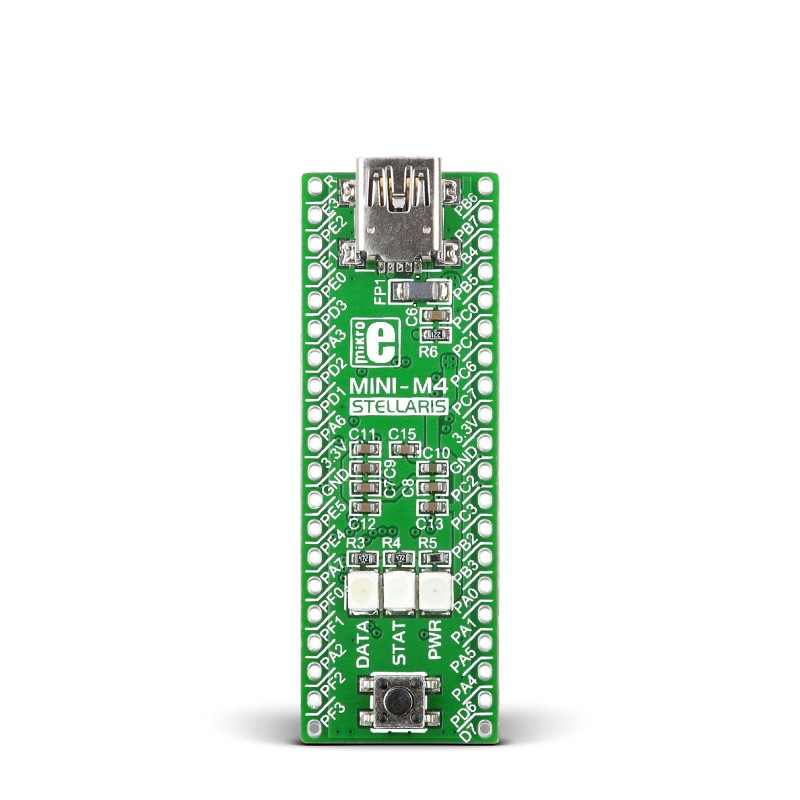

MINI-M4 for Stellaris is a small ARM® Cortex™-M4 development board containing LX4F230H5QR microcontroller. It is pin compatible with PIC16F887 and PIC18(L)F45K20 microcontrontrollers and it perfectly fits into standard DIP40 socket. Board is equipped with 16MHz SMD crystal oscillator, and 32.768KHz crystal which can be used for internal RTCC module. It has reset button and three signal LEDs. It operates on 3.3V power supply. On-board voltage regulator allows the board to be powered directly from USB cable.

Programming. Board comes preprogrammed with fast USB HID bootloader, so no external programmers are needed for development.

Specification

Architecture ARM (32-bit)
MCU LX4F230H5QR
MCU speed 80MHz
MCU Memory 256KB of Flash, 32KB of RAM
On-board modules 3 x LEDs, 1 x Reset Button, USB 2.0 OTG connector
Programming Comes preprogrammed with USB HID bootloader
Key Features Supports CAN communication
Integration Pin compatible with PIC16F887 and PIC18(L)F45K20 in DIP40 packaging
Input Voltage 5V (via USB) or 3.3V (via external source)
