MikroElektronika

OSD click

OSD click

MIKROE-1366

Rs. 3,679.00
Rs. 3,679.00
Sale Sold out
Taxes included.

Out of stock

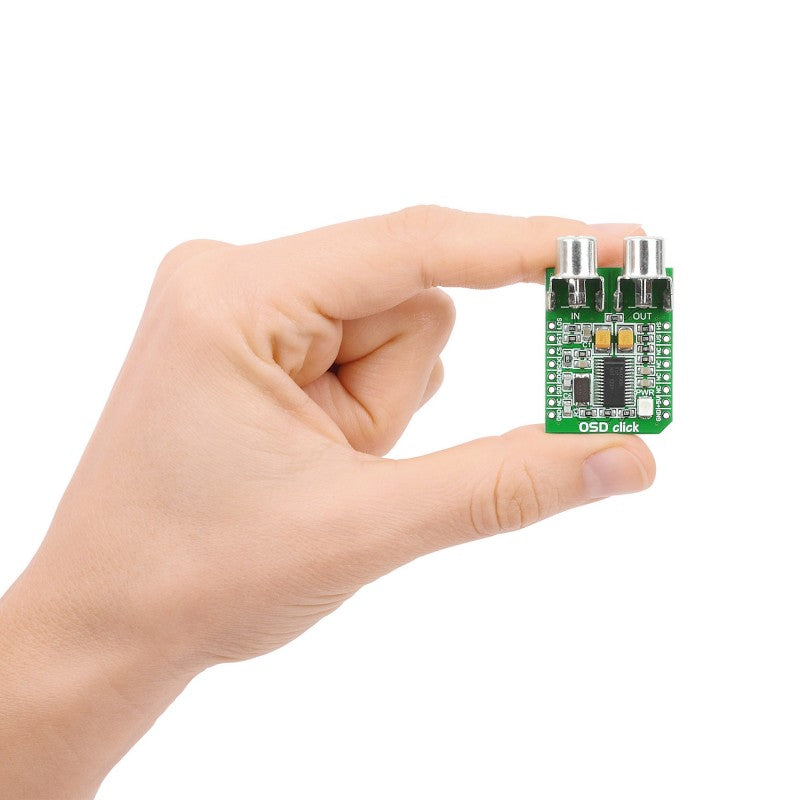

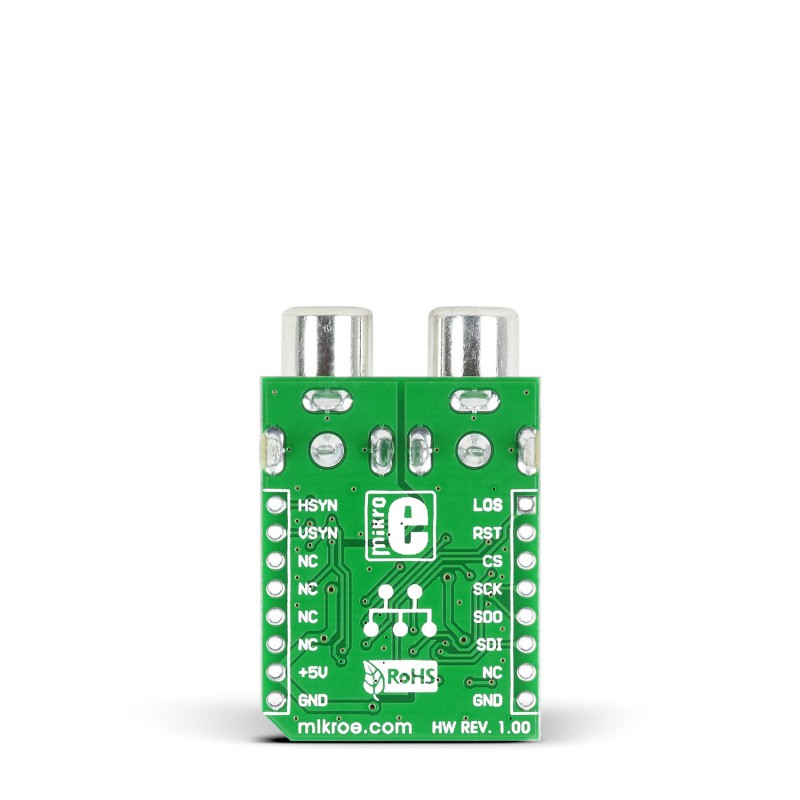

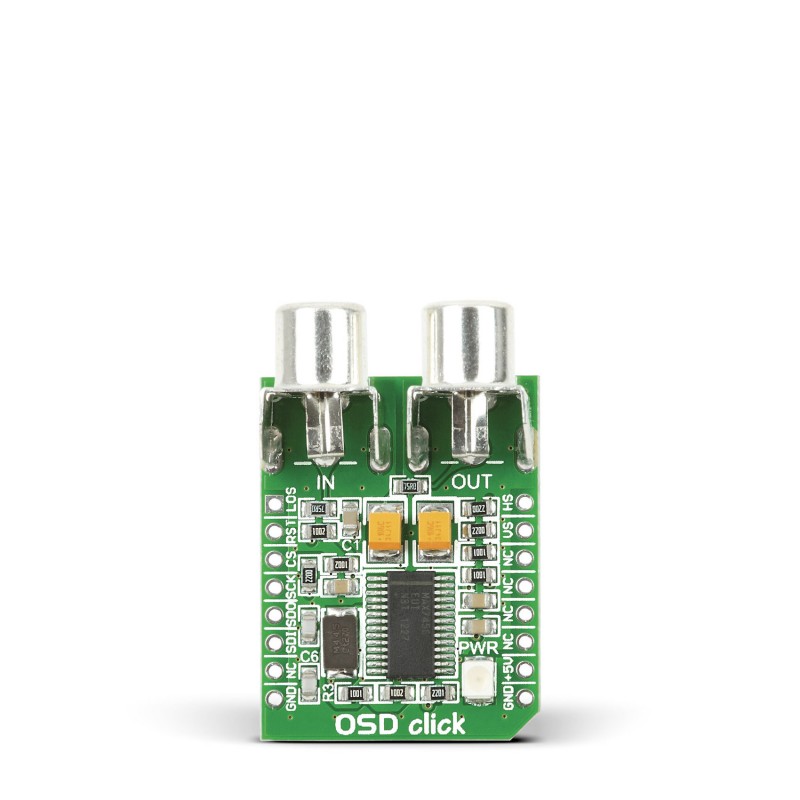

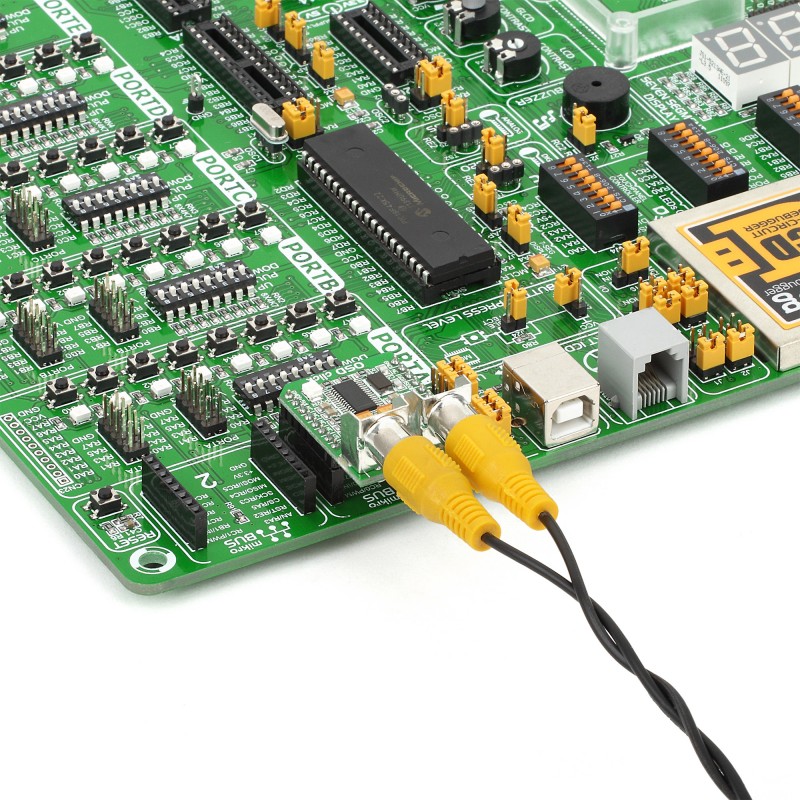

OSD Click features MAX7456 single-channel monochrome OSD module with integrated EEPROM memory as well as two RCA sockets. It is used to create on-screen menus and other video overlays, such as custom graphics, company logo, time and date using 256 user-programmable characters or pictographs. It is NTSC and PAL compatible and displays up to 16 rows x 30 characters. MAX7456 has internal sync generator. OSD Click™ communicates with target microcontroller via mikroBUS™ SPI (SDI, SDO, SCK, CS#), RST, LOS, HSYNC and VSYNC lines. The board is designed to use 5V power supply only. LED diode (Green) indicates the presence of power supply.

Specification

Type OSD
Applications Board is ideal for security switching systems and cameras, industrial applications, consumer electronics and many more
On-board modules MAX7456 single-channel monochrome OSD with integrated EEPROM memory as well as two RCA sockets.
Key Features 256 User-Defined Characters or Pictographs in Integrated EEPROM. 12 x 18 Pixel Character Size. Displays Up to 16 Rows x 30 Characters
Key Benefits Blinking, Inverse, and Background Control Character Attributes
Interface SPI,GPIO
Input Voltage 5V,5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)
