nRF C click

nRF C click

MIKROE-1304

Rs. 1,999.00
Rs. 1,999.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

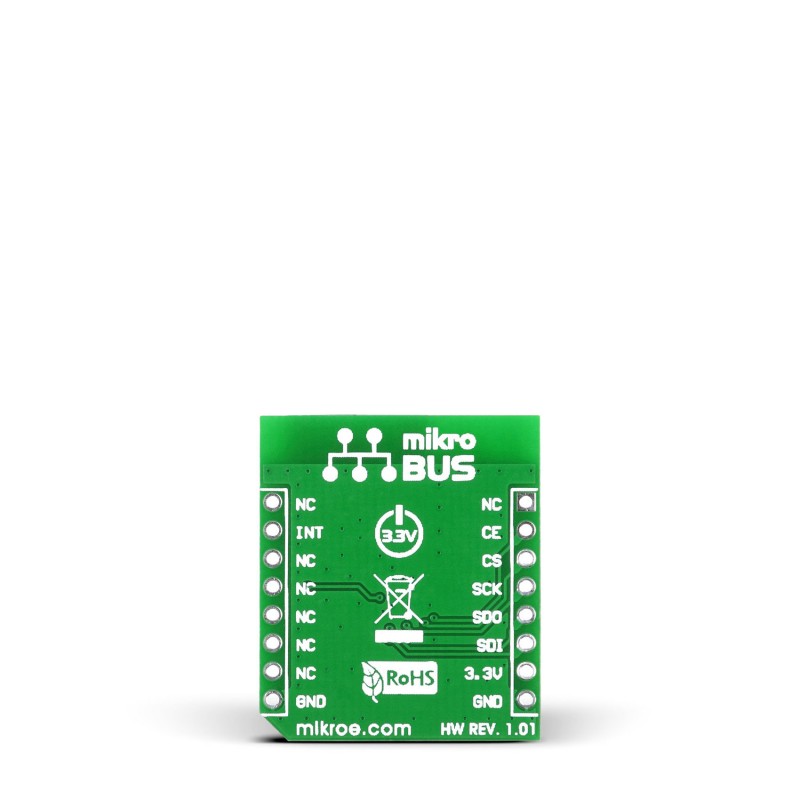

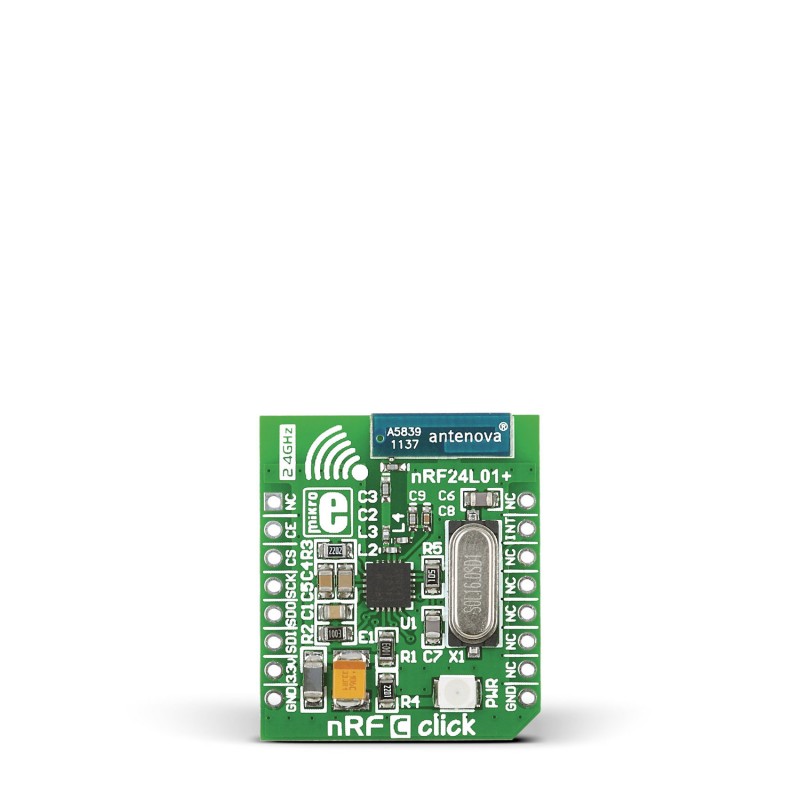

nRF C Click is an add-on board in mikroBUS form factor. It features Nordic nRF24L01P 2.4 GHz transceiver module with an embedded baseband protocol engine as well as 2.4 GHz SMD chip antenna. The board supports an air data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs. Typical applications include wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc. nRF C Click communicates with target board microcontroller via mikroBUS SPI (SDI, SDO, SCK, CS#), CE and INT lines. The board is designed to use 3.3V power supply only.

Specification

Type RF 2.4GHz
Applications Wireless PC peripherals, remotes, VoIP headsets, game controllers, sensors, home and commercial automation, active RFID, toys, etc
On-board modules Nordic nRF24L01P 2.4 GHz transceiver
Key Features Supports data rate of 250 Kbps, 1 Mbps and 2 Mbps and it is suitable for ultra low power designs
Key Benefits On-board chip antenna
Interface GPIO,SPI
Input Voltage 3.3V
Compatibility mikroBUS
Click board size S (28.6 x 25.4 mm)
