MikroElektronika

DALI Click

DALI Click

SKU:MIKROE-1297

Regular price Rs. 2,629.00
Regular price Sale price Rs. 2,629.00
Sale Sold out
Tax included.

Out of stock

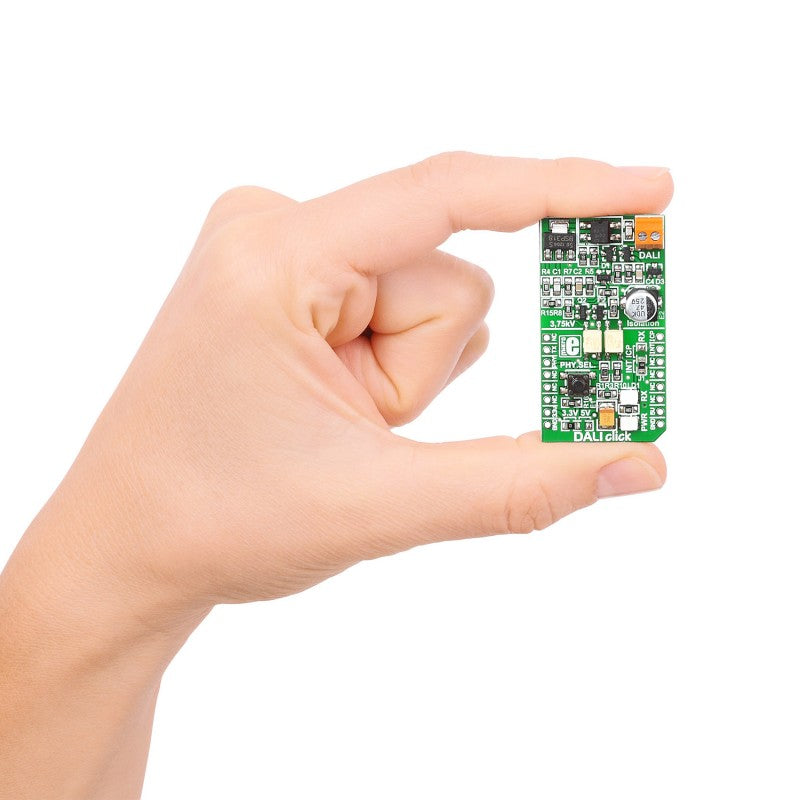

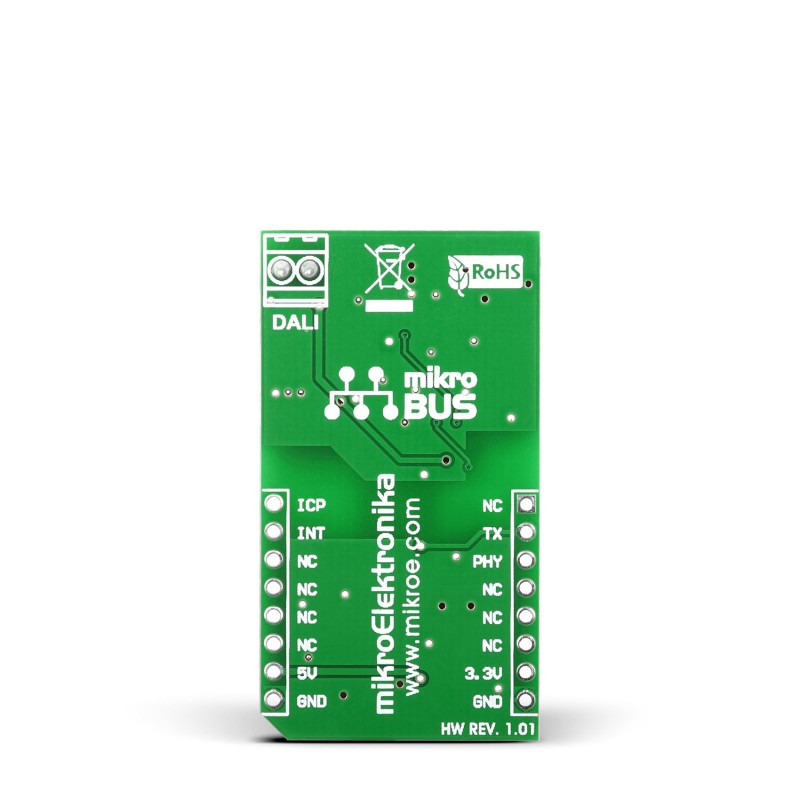

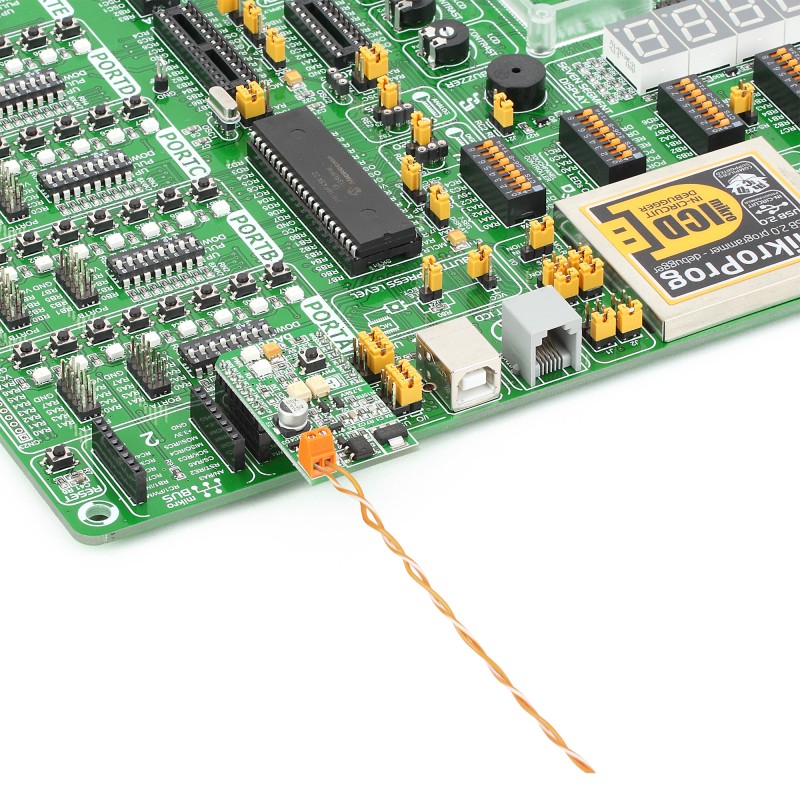

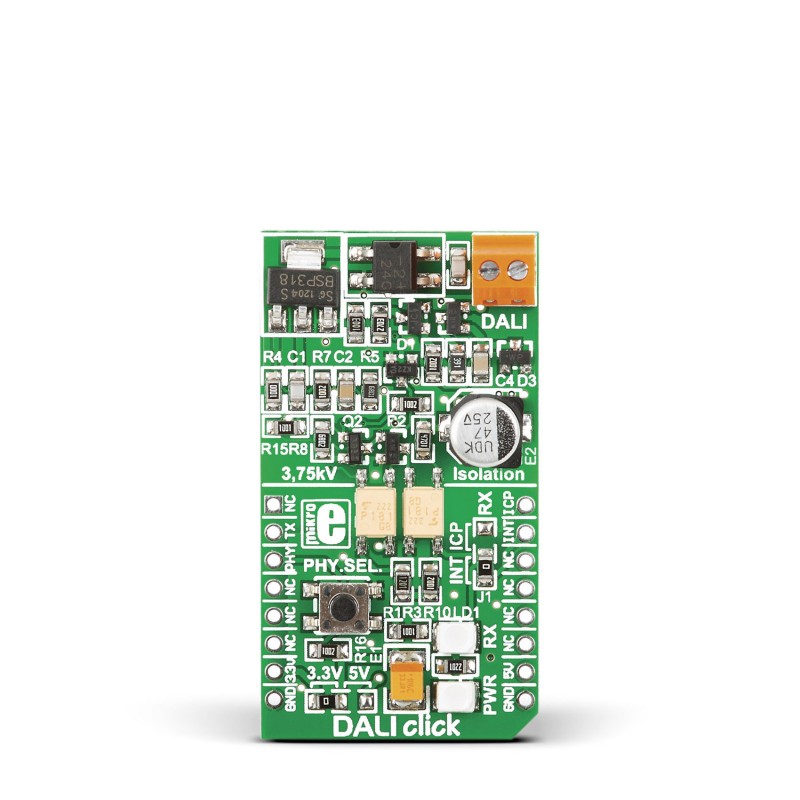

DALI Click is a compact board that provides Digital Addressable Lighting Interface (DALI) to your design. Board features two optocouplers, push button and screw terminals. DALI Click communicates with target board via four mikroBUS™ lines (RST, CS, PWM and INT). Data between MCU and devices is transferred over two-wire differential bus by means of asynchronous, half-duplex, serial protocol. It is possible to address up to 64 devices in DALI stand alone systems and more than 64 devices as DALI subsystem (gateways). The board is designed to use 3.3V or 5V power supply. LED diode indicates the presence of power supply.

Specification

Type DALI
Applications Board is ideal for controlling network based systems that controls lighting in buildings
On-board modules Two optocouplers, push button and screw terminal
Key Features The board is designed to use 3.3V or 5V power supply. LED diode indicates the presence of power supply
Key Benefits It is possible to address up to 64 devices in DALI stand alone systems and more than 64 devices as DALI subsystem (gateways)
Interface GPIO
Input Voltage 3.3V or 5V
Compatibility mikroBUS
Click board size M (42.9 x 25.4 mm)

Downloads

DALI Click Examples

DALI Click User Manual
