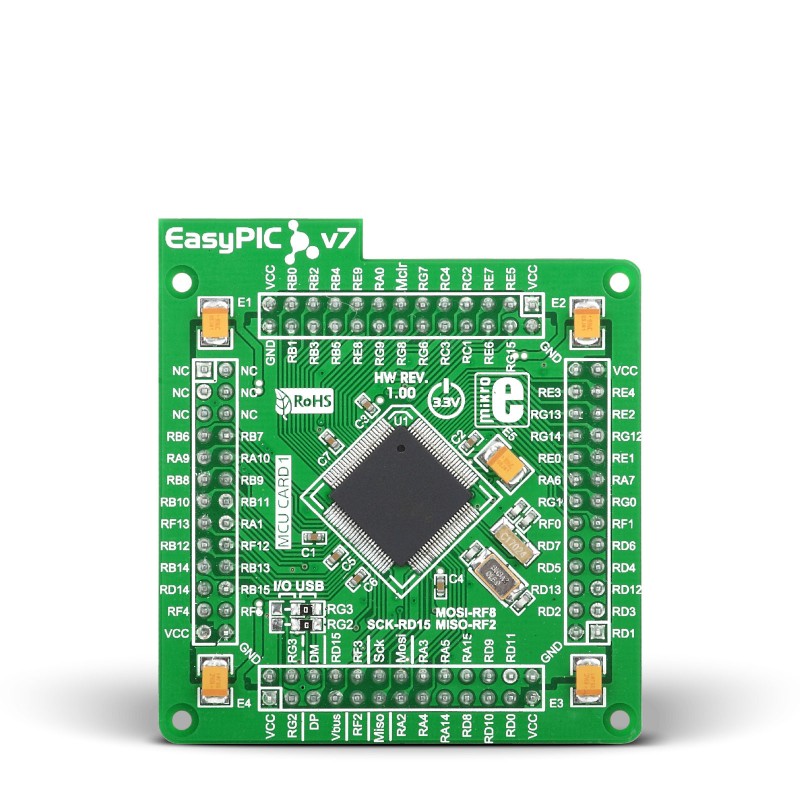

EasyPIC FUSION v7 MCUcard with PIC24EP512GU810

PIC24EP512GU810 has 70 MIPS CPU speed, 512K bytes of program memory (flash), 52K bytes of data memory. It has USB 2.0 OTG, 83 General purpose I/O pins, 9 16-bit timers, 2 ADC (32 ch), 4 UARTs, internal 7.37 MHz and 32kHz oscillators, internal Real time clock (RTC), 2 I2C, 4 SPI and 2 CAN controllers. It also contains 3 analog comparators and programming and debugging interface.

8MHz crystal oscillator. We carefully chose the most convenient crystal value that provides clock frequency which can be used directly, or with the PLL multipliers to create higher MCU clock value. MCU card also contains 32.768 kHz crystal oscillator which provides external clock waveform for RTCC module.

USB communications lines. These two jumpers, when in USB position, connect D+ and D- lines of the on-board USB connector with RG2 and RG3 microcontroller pins. Since PIC24EP512GU810 supports USB, jumpers are in USB position.

Specification
