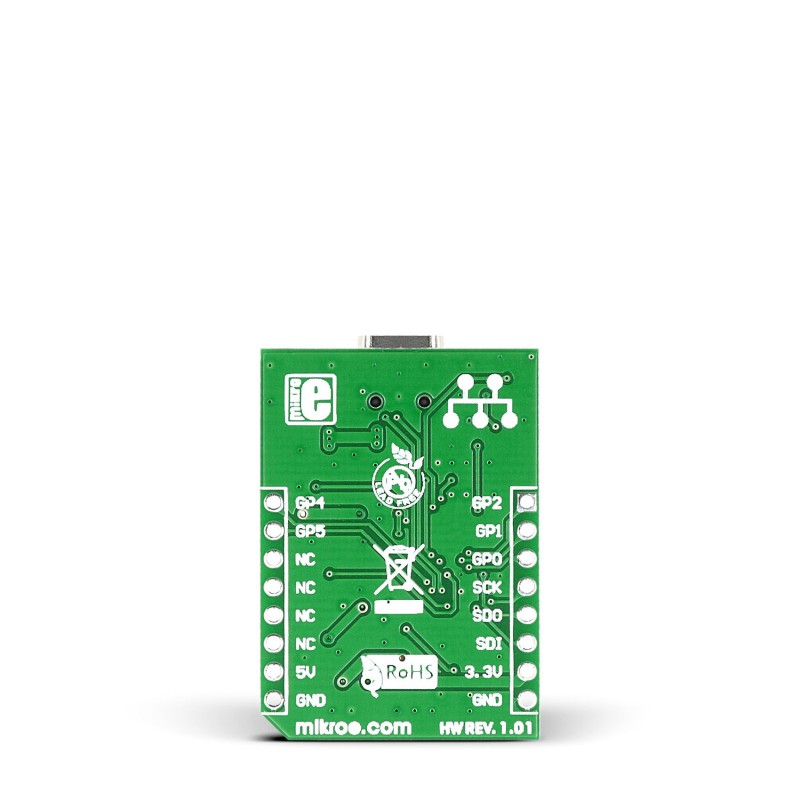

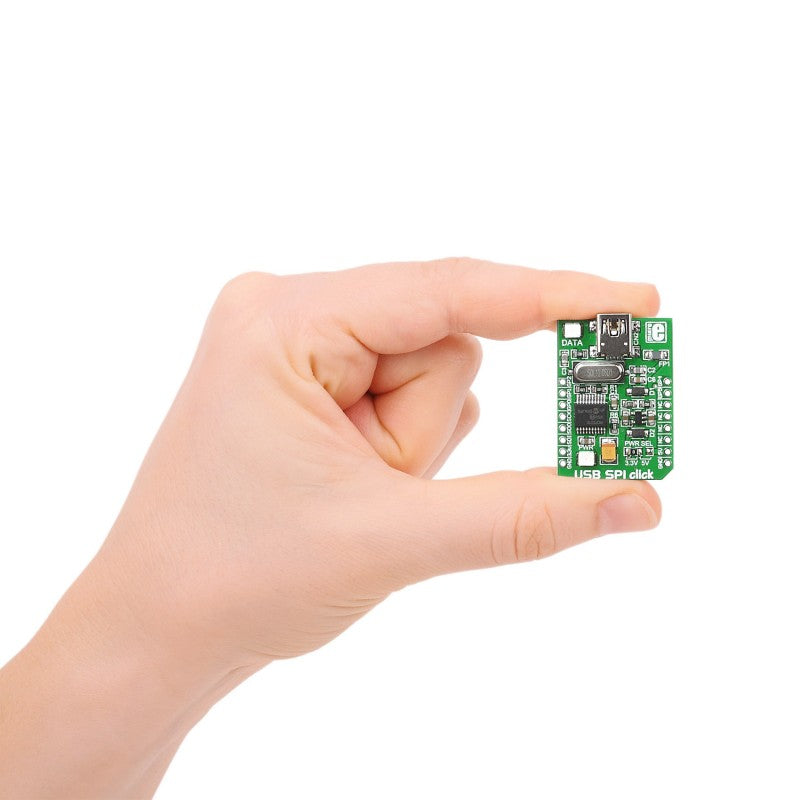

USB SPI click
USB SPI click
Regular price
Rs. 1,459.00
Regular price
Sale price
Rs. 1,459.00
Unit price
/
per
Share

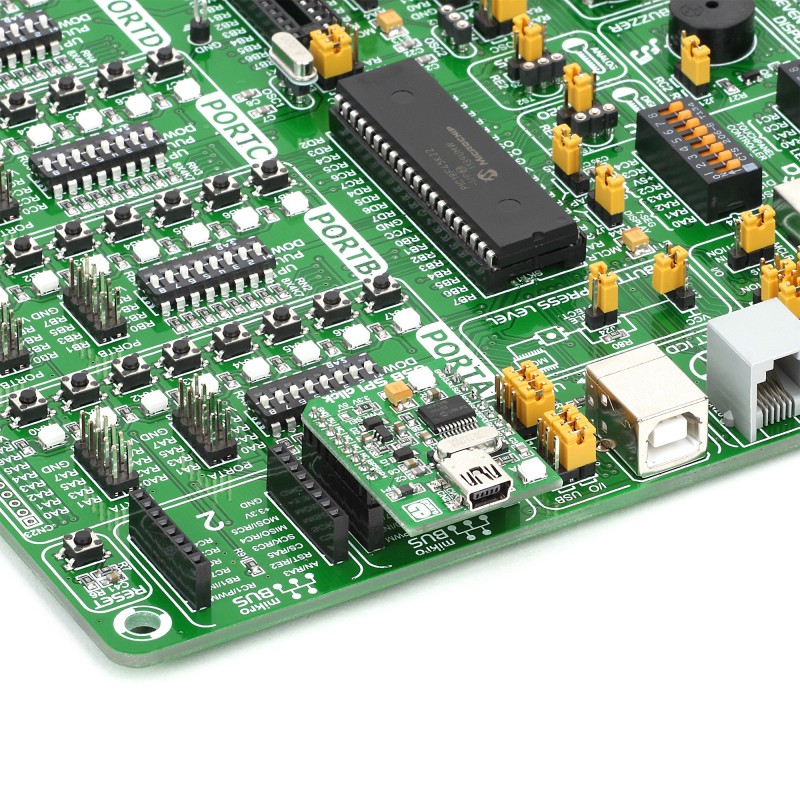

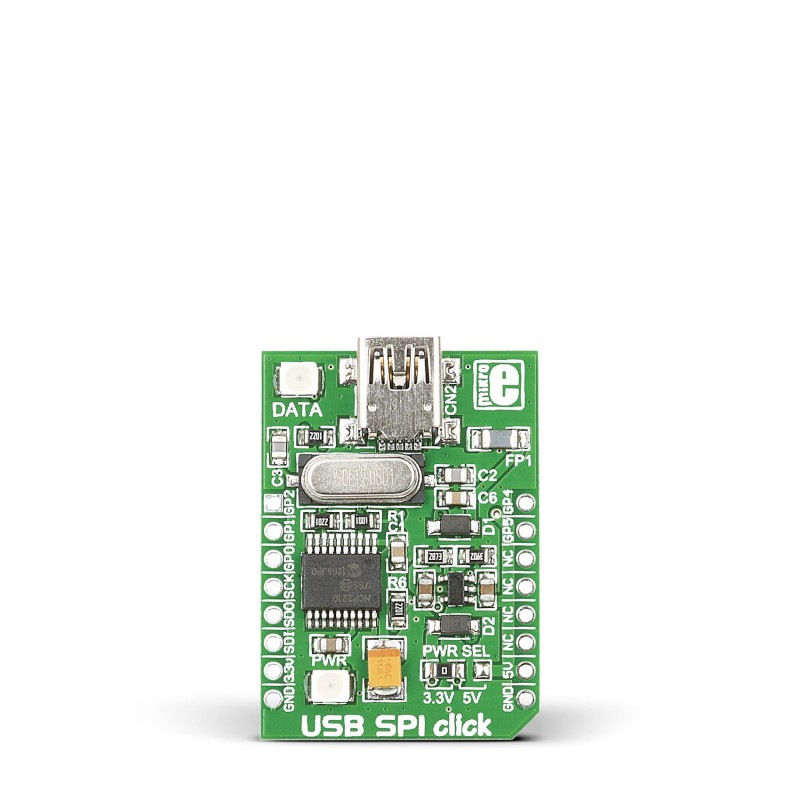

USB SPI Click is an accessory board in mikroBUS form factor. It’s a compact and easy solution for adding SPI serial communication via USB cable. It features MCP2210 USB-to-SPI protocol converter with GPIO as well as USB MINI B connector. USB SPI Click communicates with target board via SPI interface as a master device. SMD jumper is available for selecting whether board will be operating on 3.3V or 5V power supply. It has a LED diode (GREEN) that indicates the presence of power supply.
Specification
Type | USB |
Applications | Board can be used to communicate with SPI client devices directly from your PC, without the need for a microcontroller |
On-board modules | MCP2210 USB-to-SPI protocol converter |
Key Features | Supports Full-SpeedUSB (12Mb/s). USB 2.0 Compliant. Nine general purpose I/O pins. 256 Bytes of user EEPROM (accessible through certain USB commands). |
Key Benefits | Human Interface Device (HID) device with fully configurable VID, PID assignments and string descriptor (factory programming also avail- able) |
Interface | GPIO,SPI |
Input Voltage | 3.3V or 5V |
Compatibility | mikroBUS |
Click board size | S (28.6 x 25.4 mm) |
Downloads
