MikroElektronika
7seg click
SKU:
MIKROE-1201
₹ 1,049.00
Taxes included.
Shipping calculated at checkout.
Description

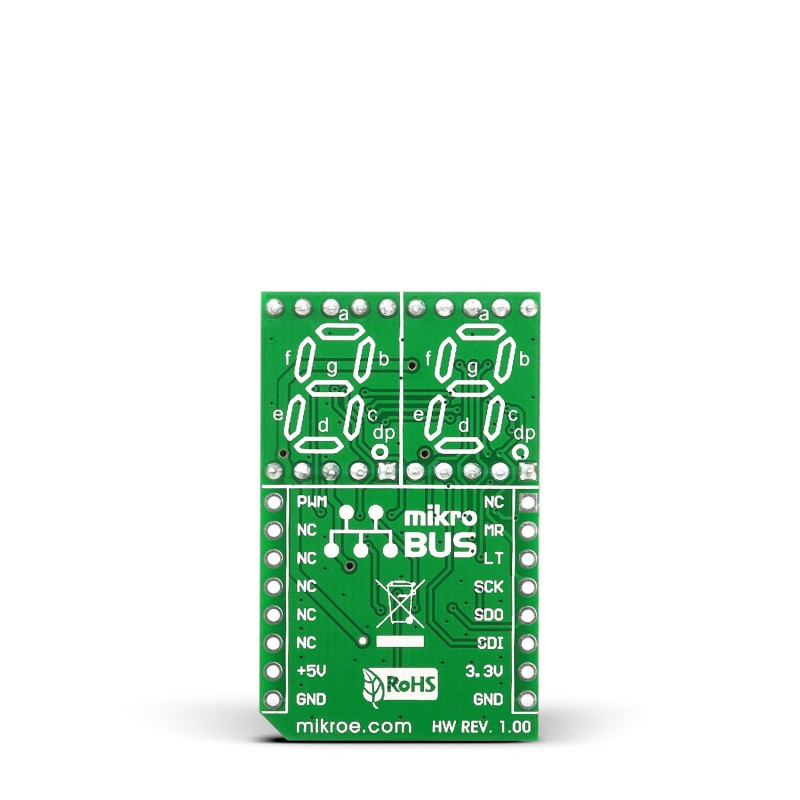

7seg click is an accessory board in mikroBUS form factor. It’s a compact and easy solution for adding 2-digit seven-segment display to your device. It features two 74HC595 8-bit serial-in, parallel-out shift register modules as well as two seven-segment digits. 7seg Click communicates with target board via SPI interface. It has a LED diode (GREEN) that indicates the presence of power supply. SMD jumper is available for selecting whether board will be operating on 3.3V or 5V power supply.
Specification
| Type | LED Segment |
| Applications | Board is ideal for adding popular 7 segment display to your device while using only 4 microcontroller pins |
| On-board modules | Two 74HC595 8-bit serial-in, parallel-out shift register modules and two seven-segment digits |
| Key Features | 100 MHz (typical) shift out frequency |
| Key Benefits | Compact display solution with simple serial interface |
| Interface | SPI,PWM,GPIO |
| Input Voltage | 3.3V or 5V |
| Compatibility | mikroBUS |
| Click board size | M (42.9 x 25.4 mm) |
