MikroElektronika

mikromedia workStation v7

mikromedia workStation v7

SKU:MIKROE-1189

Regular price Rs. 13,549.00
Regular price Sale price Rs. 13,549.00
Sale Sold out
Tax included.

1 in stock

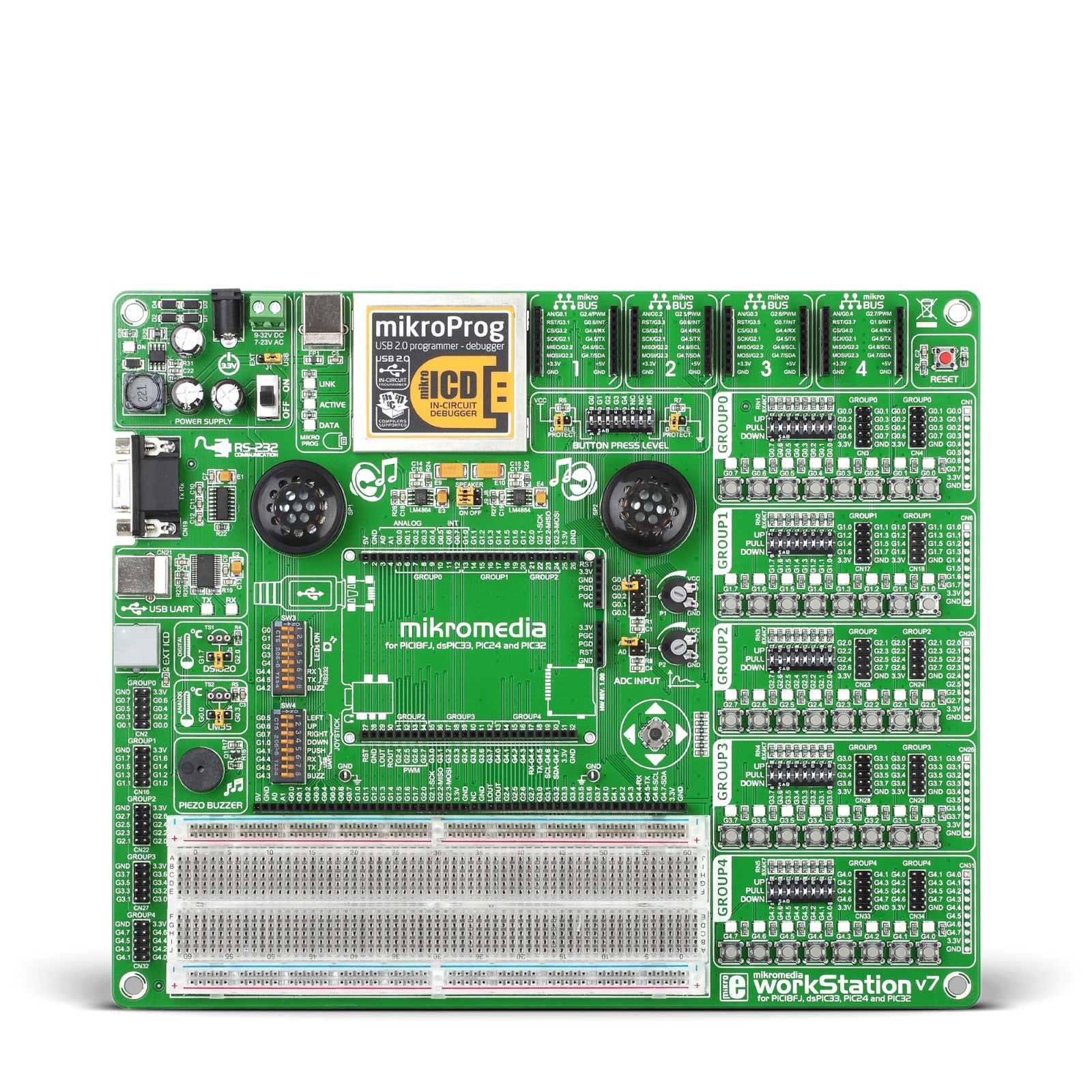

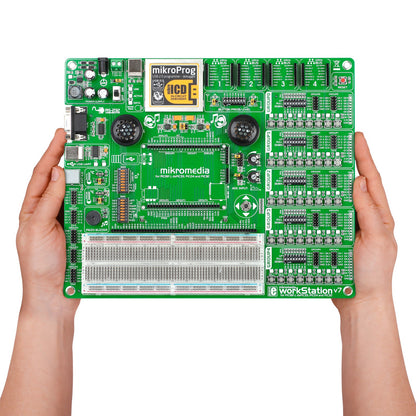

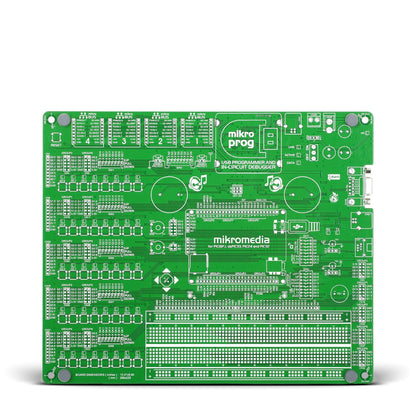

mikromedia workStation v7

mikromedia workStation v7 provides full development environment for mikromedia boards ver. 1.05 and above. It features on-board debugger, multimedia modules, four mikroBUS host sockets and a large breadboard area. Abstract pin names irrelevant of target mikromedia will bring you enormous flexibility and portability of your code for to supported architecture.

mikromedia workstation v7

PICFlash™ with mikroICD™

mikroProg™ is a fast USB 2.0 programmer with mikroICD™ hardware In-Circuit Debugger. Smart engineering allows mikroProg™ to support all mikromedia boards with Microchip® microcontrollers. Outstanding performance and easy operation are among it’s top features.

mikromedia workstation mikroicd

The mikroICD™ debugger enables you to execute your program on the host microcontroller and view variable values, Special Function Registers (SFR), RAM, CODE and EEPROM memory along with the code execution on hardware. Whether you are a beginner, or a professional, this powerful tool with convenient set of commands will enable you to track down bugs quickly. mikroICD™ is one of the fastest, and most reliable debugging tools on the market.

Modules

UART/RS-232

uart rs-232

Write UART applications for laptops too. We provided two USB-UART modules.

Power Supply

power supply

3.3V power supply makes sure that each module works correctly.

Mikromedia boards

mikromedia boards

mikromedia boards are plugged into the board via specialized header sockets.

Click boards

click boards

Four mikroBUS™ connectors enable you to use many additional boards.

Joystick

joystick

We provided 5-button joystick so you can easier handle the on-screen menus.

Mikromedia socket

mikromedia socket

mikromedia socket is rich in silkscreen markings which facilitate connections.

Audio amplifiers

audio amplifiers

Audio amplifiers and speakers are provided for left and right audio channel.

Breadboard

breadboards

Large breadboard is available for placing additional components.

Package Contains

  • Damage resistant protective box
  • mikromedia workStation v7 board in antistatic bag
  • USB cable and Wire Jumpers
  • User Manual and Board Schematic

Specification

Applications Developing and testing firmware, creating prototypes, learning embedded programming
Display size 2.8"
Resolution 320x240px
Touch Screen Resistive
Architecture dsPIC/PIC24 (16-bit),PIC32 (32-bit),AVR (8-bit),ARM (32-bit),PIC (8-bit)
On-board modules Sockets for LM35 and DS1820 temperature sensors, ADC inputs, joystick, large breadboard
Programming On-board mikroProg for PIC, dsPIC and PIC32. ICD2/ICD3 connector available for connecting external programmer
Sound and Audio Audio amplifier with two speakers, Piezo buzzer
Expandability 4 x mikroBUS sockets, 3 x IDC10 headers for each PORT
Integration Mounting holes
Input Voltage 5V (via USB) or 9-32V AC, 7-23V DC (via adapter)
