MikroElektronika

mikromedia for STM32 M3

mikromedia for STM32 M3

SKU:MIKROE-1101

Regular price Rs. 10,399.00
Regular price Sale price Rs. 10,399.00
Sale Sold out
Tax included.

Out of stock

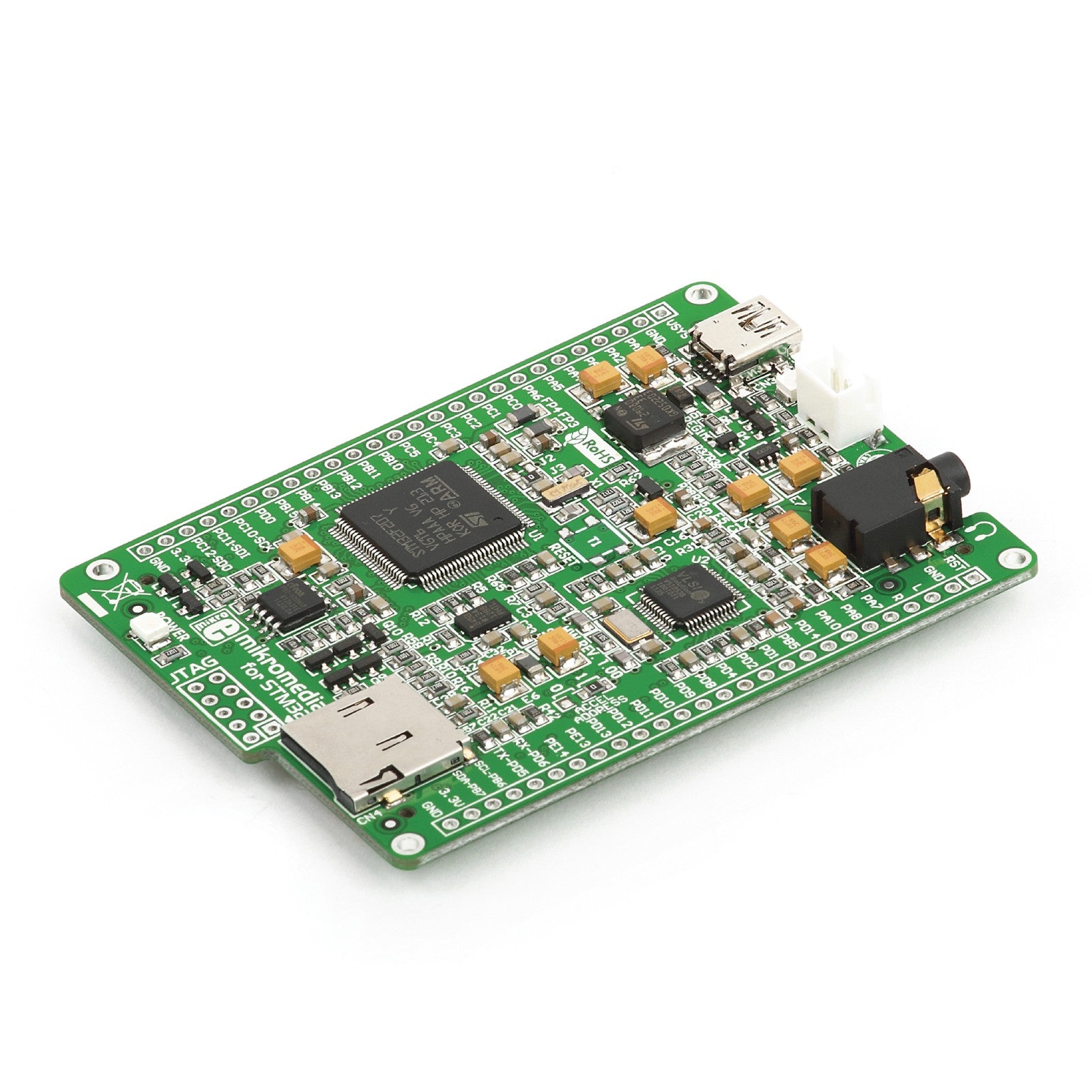

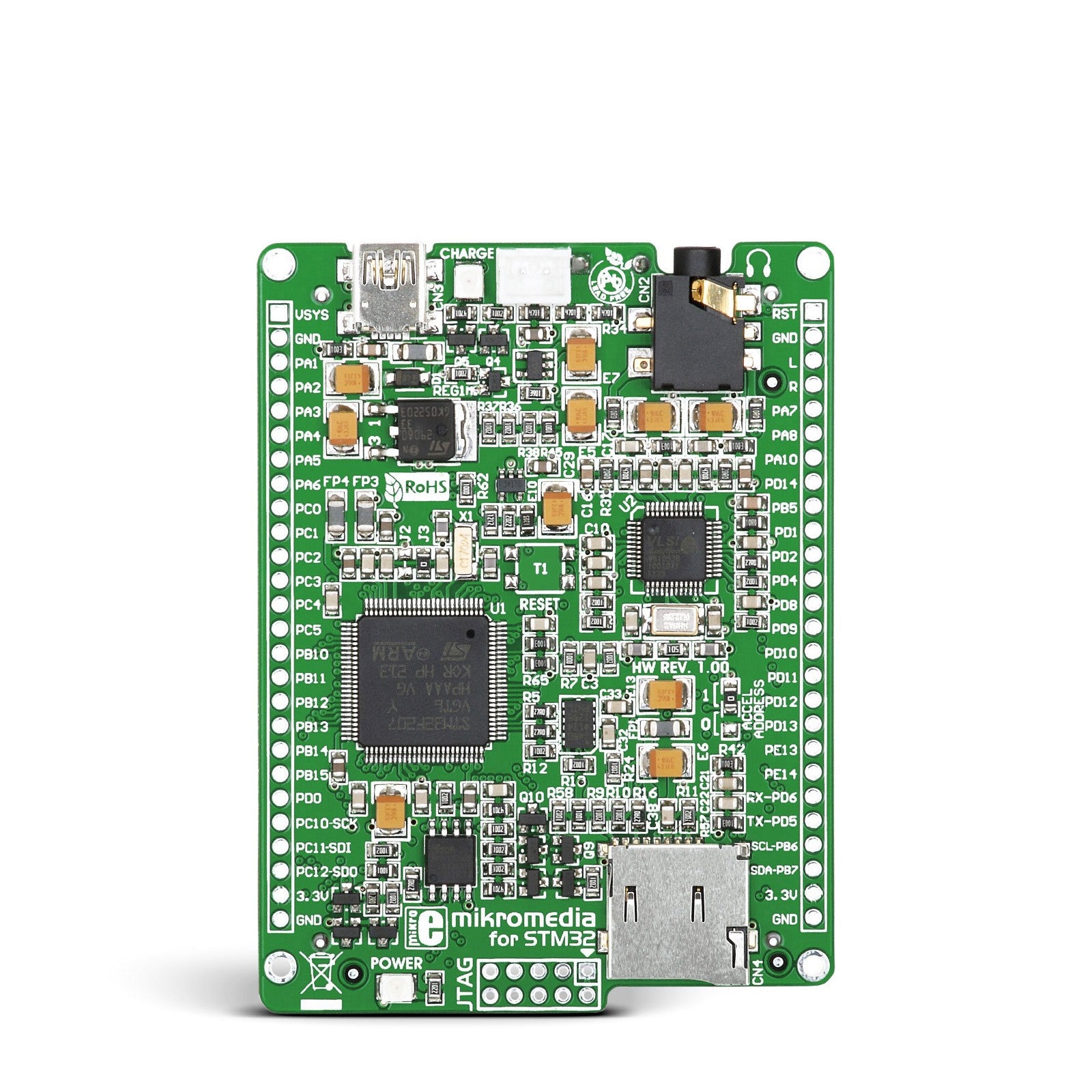

Start building your first applications with intuitive, user-friendly menus and dashboards using STM32 ARM Cortex-M3 microcontroller. This board provides a compact high-quality multimedia development platform for STM32F207VGT6 device.

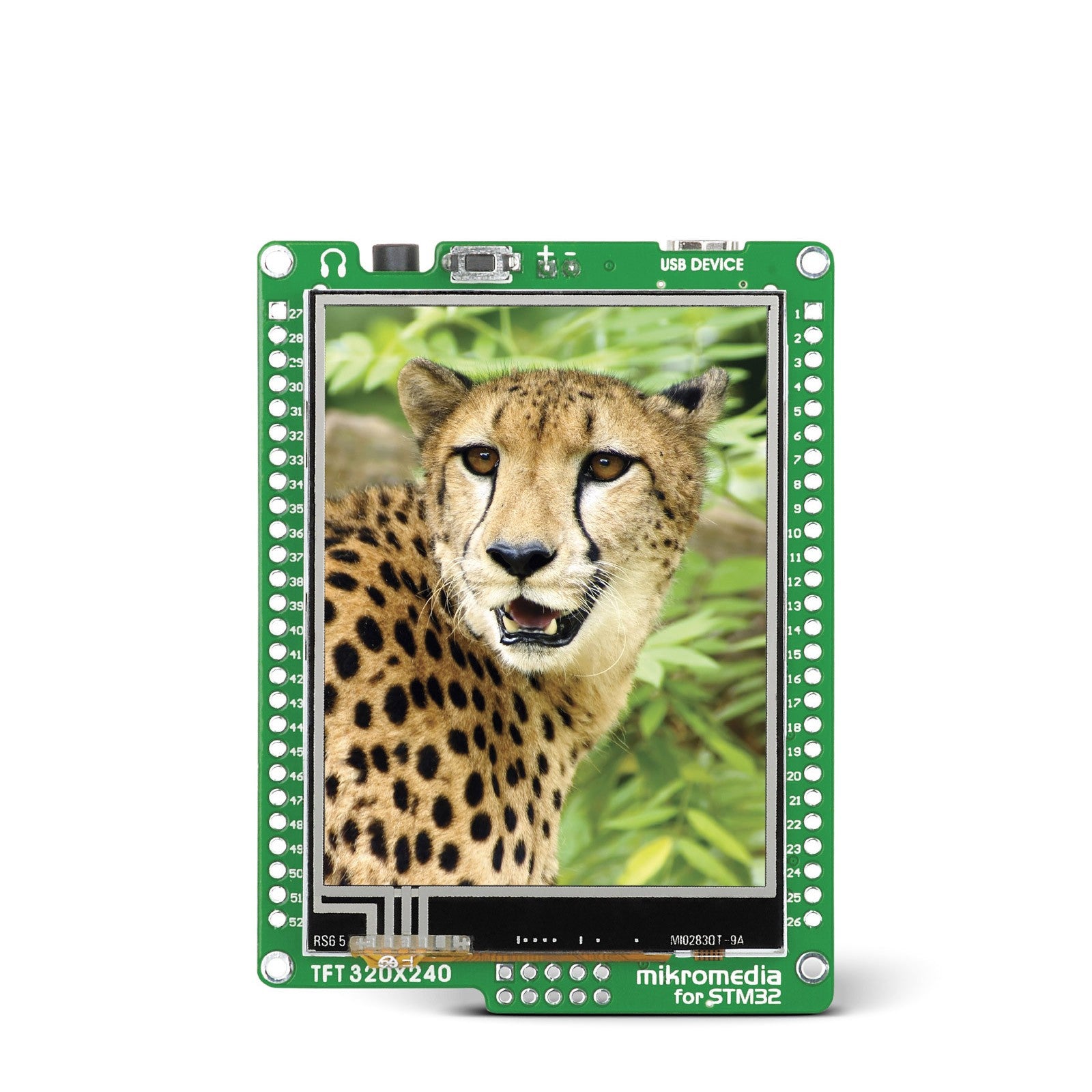

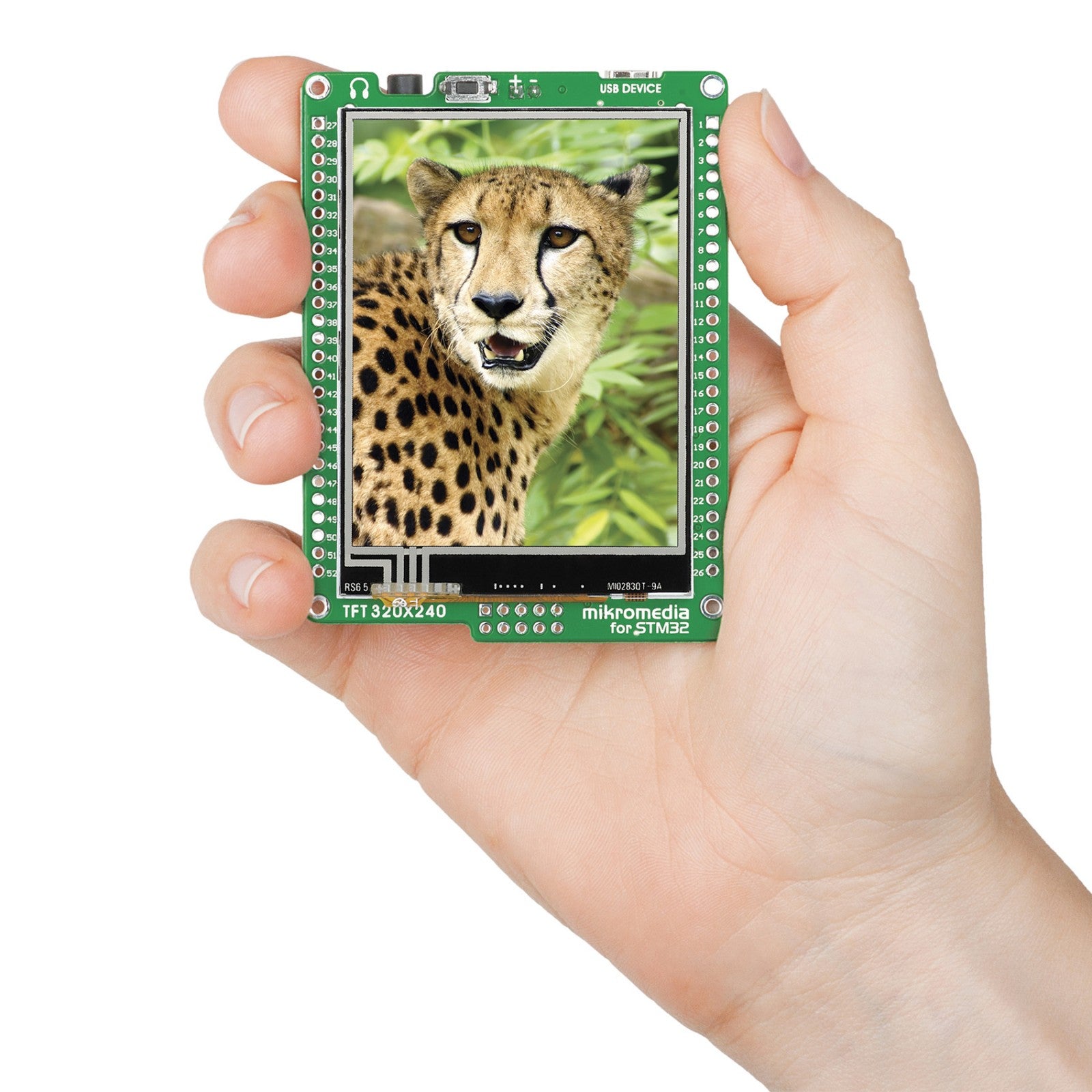

Highlights. Large 320x240 TFT Color Display with Touch Screen and Stereo MP3 Codec chip with great performance give you true power to build GUI-centric embedded devices. Charge your batteries directly from USB port. No additional electronics, or expensive adapters. You can save pictures, sounds and other media files on microSD memory card and 8Mbit Serial Flash Memory and use it in your application. On-board ADXL345 Digital Accelerometer allows you to measure acceleration.

Programming. On-board STM32 microcontroller is preprogrammed with fast USB HID bootloader, so it’s ready to work right out of the box. You don’t have to spend a dollar more on programmers. For those who need it, board can also be programmed and debugged using mikroProg™ for STM32 debugger.

Compilers. mikromedia for STM32 M3 is fully supported by mikroC, mikroBasic and mikroPascal compilers for ARM. Compilers come with dozens of examples that demostrate every feature of the board.

GUI design with Visual TFT. Easily create fantastic colourful graphical user interfaces (GUI) for mikromedia in Visual TFT software. Even total beginners will be able to create amazing applications.

Specification

Applications Best used as a development board but also as a final product. Use cases include industrial, medical, automotive and other dashboards and equipment.
Displays TFT full-color
Display size 2.8"
Resolution 320x240px
Graphic controller ILI9341
Touch Screen Resistive
Architecture ARM (32-bit)
MCU STM32F207VGT6
MCU speed 150 DMIPS, 125 MHz, 1.25 DMIPS/MHz
MCU Memory 1 MB of Flash, 128 of SRAM
Programming Preprogrammed with fast USB HID bootloader. Also features mikroProg for PIC, dsPIC and PIC32 connector.
Storage 8 Mbit Serial Flash, microSD card slot
Sound and Audio VS1053 MPEG audio decoder
Peripherals include USB connector, Accelerometer, Battery Charger
Expandability Two 1x26 headers, mikromedia standard pinout
Integration Mounting holes
Input Voltage 5V (via USB)
