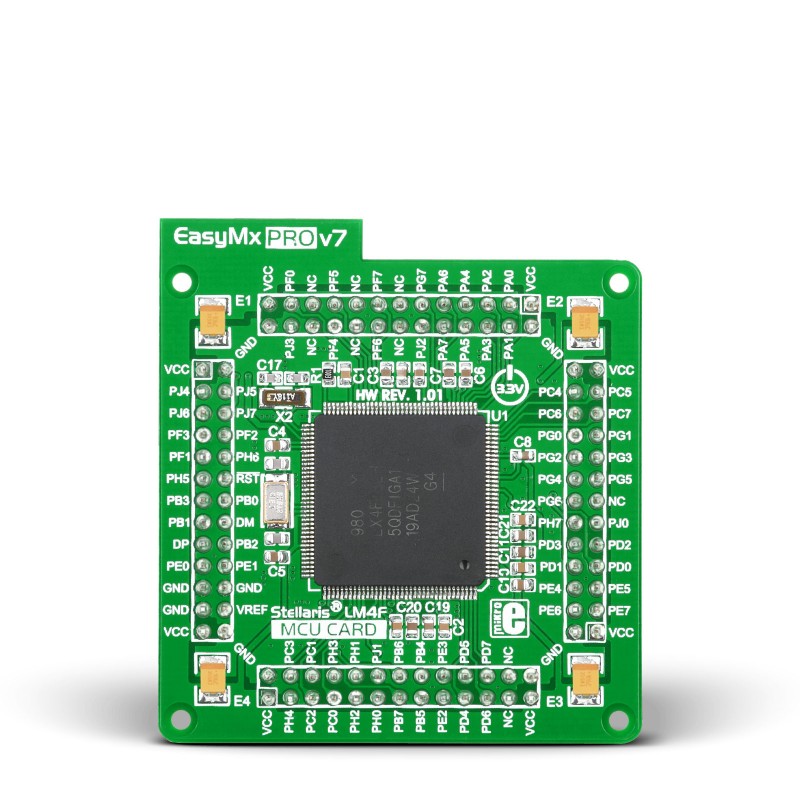

Standard MCU card with LX4F232H5QD (144-pin TQFP)
Standard MCU card with LX4F232H5QD (144-pin TQFP)
SKU:MIKROE-1043
Couldn't load pickup availability
Share
LM4F232H5QD belongs to ARM® Cortex™-M4 family. It has 80MHz operation, 256K bytes of flash memory , 32K bytes of SRAM memory and 2K bytes of EEPROM memory. It has USB (OTG, Host, Device), up to 105 General purpose I/O pins, 16/32-bit timers, 2 12-bit ADC modules, 8 UARTs, internal Real time clock (RTC), 6 I2C, 4 SPI and 2 CAN controllers. It also contains 3 analog comparators and 16 digital comparators. It is preloaded with StellarisWare® libraries and bootloader in ROM.
8MHz crystal oscillator. We carefully chose the most convenient crystal value that provides clock frequency which can be used directly, or with the PLL multipliers to create higher MCU clock value.
MCU card also contains 32.768 kHz crystal oscillator which provides external clock waveform for RTCC module.
Specification
Architecture | ARM (32-bit) |
MCU | LM4F232H5QD |
MCU speed | 80MHz |
MCU Memory | 256 KB of Flash, 32 KB of SRAM |
Input Voltage | 3.3V |
Compatibility | EasyMx PRO v7 for Stellaris |
