MCC USB-1808X: High-Speed, High-Precision, Simultaneous USB DAQ Device

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-1808X features eight high-precision, simultaneous analog inputs, 18-bit resolution, 200 kS/s/ch sample rate, two analog outputs, 4 digital I/O, two counters, and two quadrature encoder inputs.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

An OEM, board-only version of the USB-1808X with header connectors instead of screw terminals is available and can be ordered directly from MCC.

Features:

• 8 SE/8 DIFF simultaneous analog inputs
• 18-bit resolution
• 200 kS/s/ch sample rate
• ±10 V, ±5 V, 0-10 V, 0-5 V input ranges
• Two 16-bit analog outputs
• Four digital I/O
• Two counter inputs
• Two quadrature encoder inputs
• Two timer outputs
• No external power required

• Product Compliance:
  • HTC: 8471.80.9000
  • ECCN: EAR99

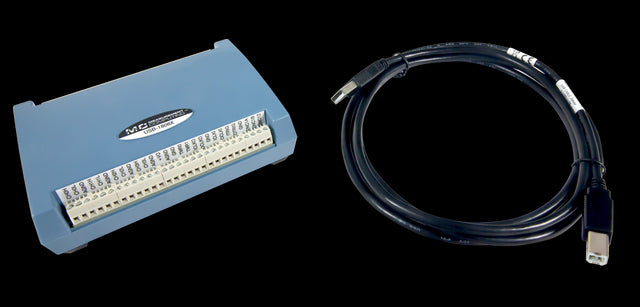

Includes:

• USB-1808X
• USB cable
• Printed insert: DAQami Quick Start
• MCC packaging assembly/foam, etc

Software:

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.

DAQami and DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
