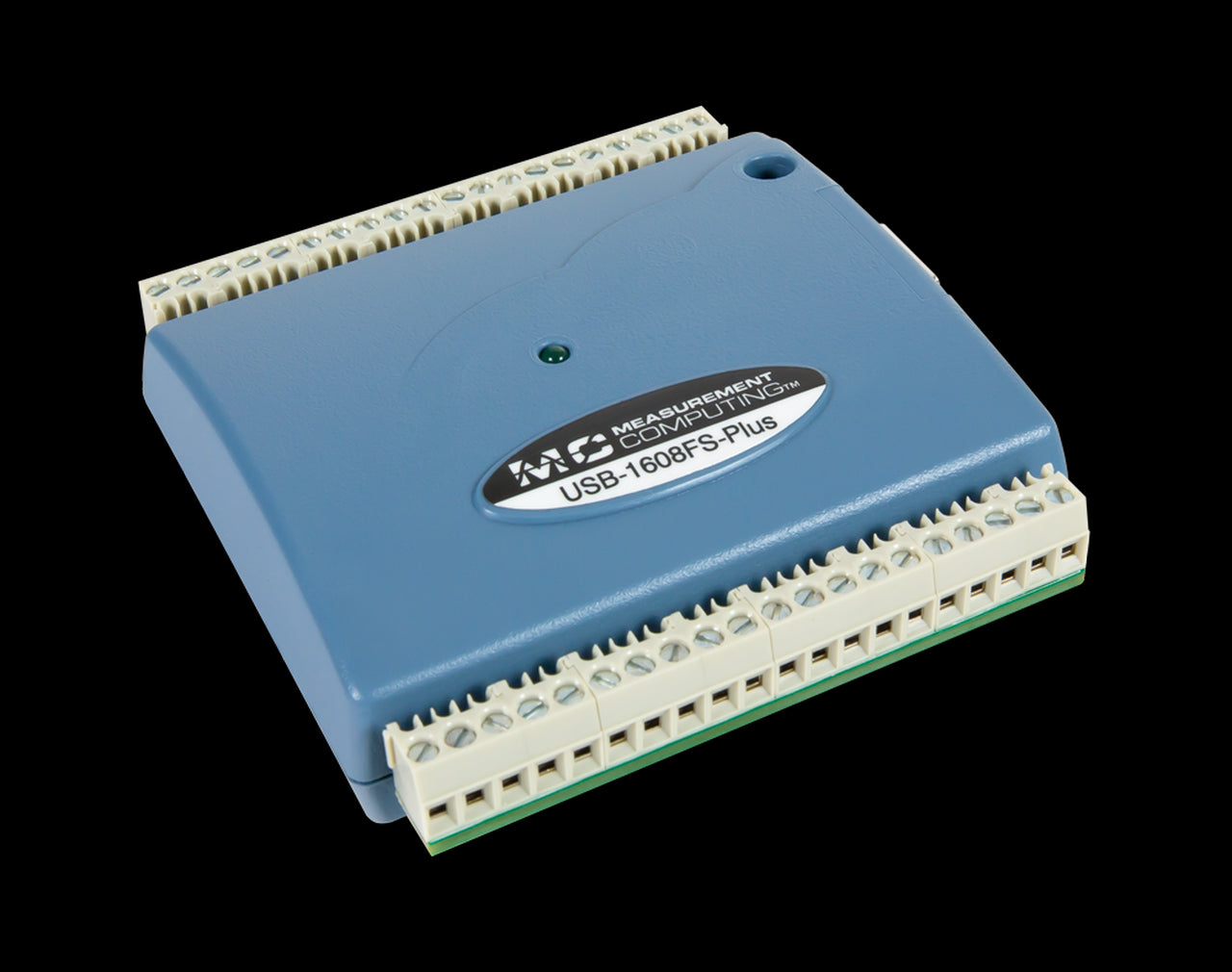

MCC USB-1608FS-Plus: Simultaneous USB DAQ Device

Digilent is now a proud distributor of Measurement Computing Corporation (MCC) DAQ and data logging products. MCC is a leading supplier of data acquisition solutions that are easy-to-use, easy-to-integrate, and easy-to-support.

The USB-1608FS-Plus features eight simultaneous analog inputs (A/D per channel), 16-bit resolution, 100 kS/s/ch sample rate (400 kS/s aggregate), one 32-bit counter, and eight digital I/O.

Software support includes free DAQami software for out-of-the-box data logging, viewing of data, and generating signals. Also included are drivers for the most popular applications and programming languages including Visual C++®, Visual C#®, Visual Basic®.NET, DASYLab®, LabVIEW™, MATLAB®, Linux®, and Python™.

An OEM, board-only version of the USB-1608FS-Plus with header connectors instead of screw terminals is available and can be ordered directly from MCC.

Features:

• 8 SE simultaneous analog inputs
• 16-bit resolution
• 100 kS/s/ch sample rate (400 kS/s aggregate)
• ±10 V, ±5 V, ±2 V, ±1 V input ranges
• Eight digital I/O
• One counter input
• No external power required

• Product Compliance:
  • HTC: 8471.80.9000
  • ECCN: EAR99

Included:

• USB-1608FS-Plus
• USB cable
• Printed insert: DAQami Quick Start
• MCC packaging assembly/foam, etc.

Software:

Prioritizing on ease of use and flexibility, MCC offers out-of-the-box software plus drivers for the most popular programming languages and applications.

Out-of-the-box software includes DAQami for data logging, visualization, and signal generation. For a more full-featured and customizable experience, DASYLab® provides real-time analysis and control, plus the ability to create custom applications without programming.

DAQami and DASYLab can be purchased directly from MCC.

For maximum customization, drivers are included for Visual C++®, Visual C#®, Visual Basic®.NET, LabVIEW™, MATLAB®, Linux®, and Python™.
