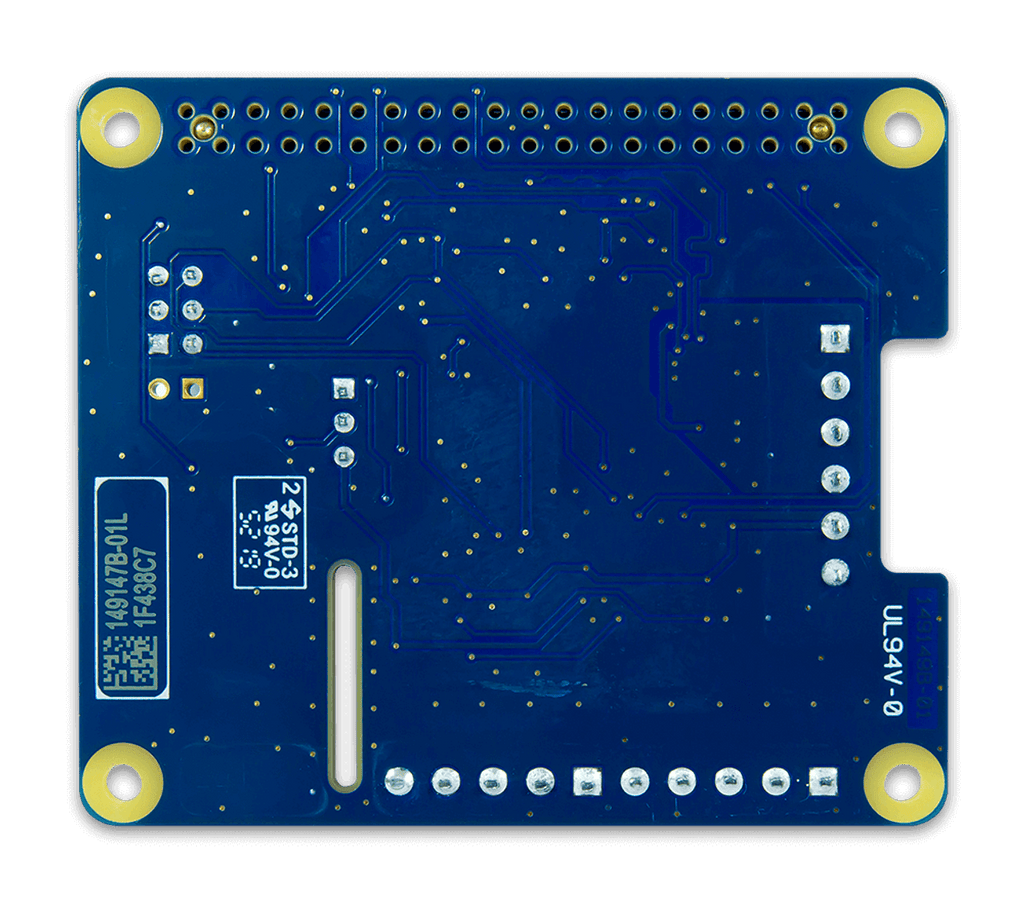

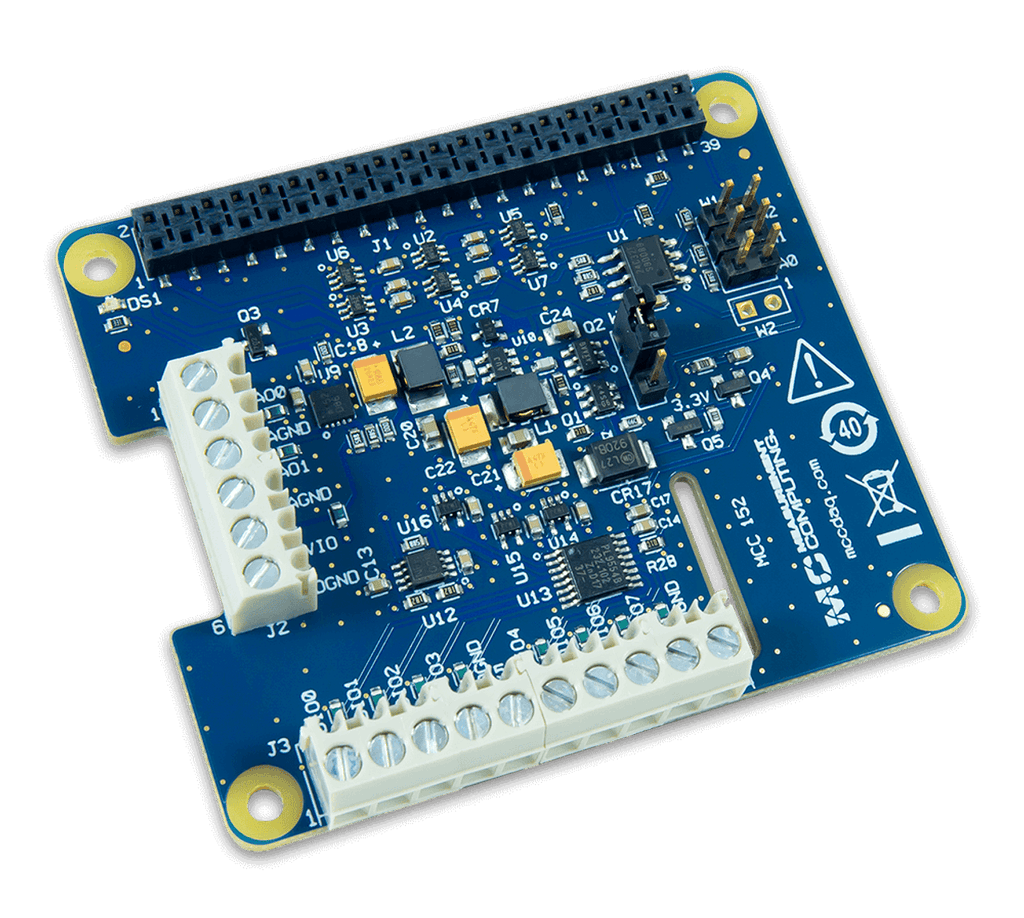

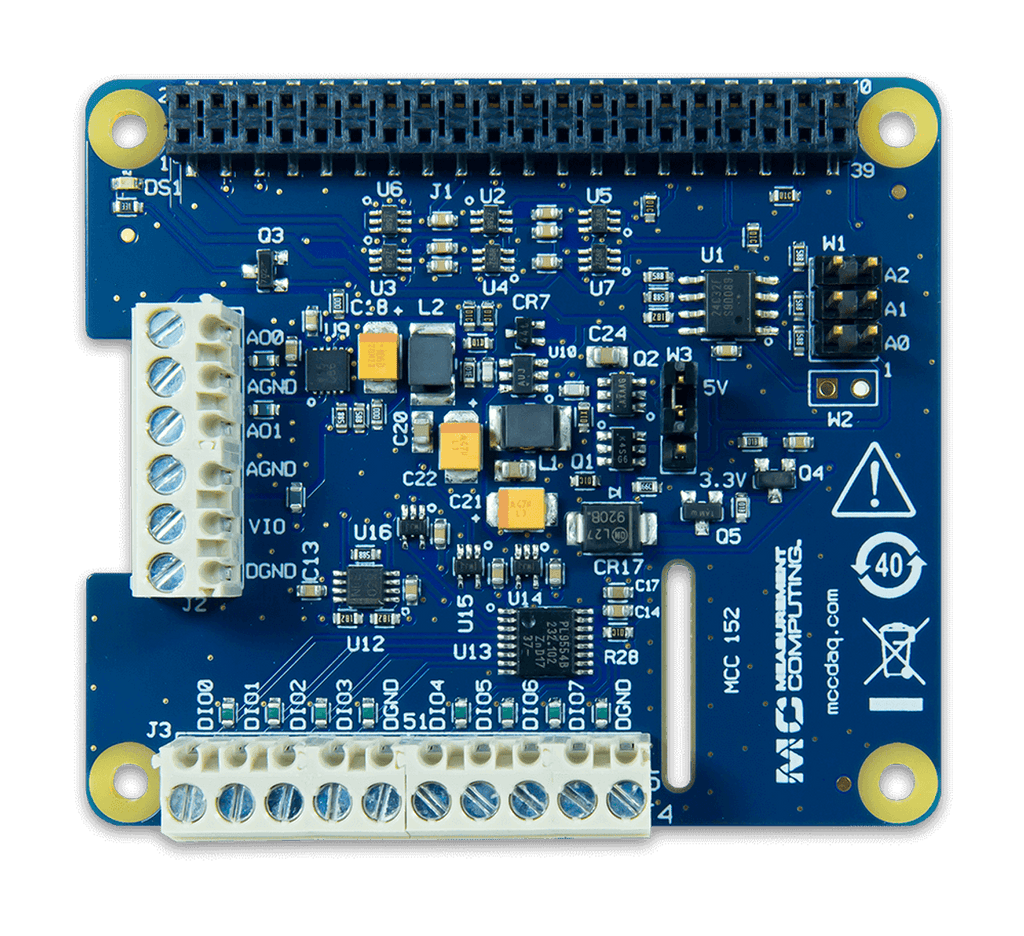

MCC 152: Voltage Output and DIO DAQ HAT for Raspberry Pi®

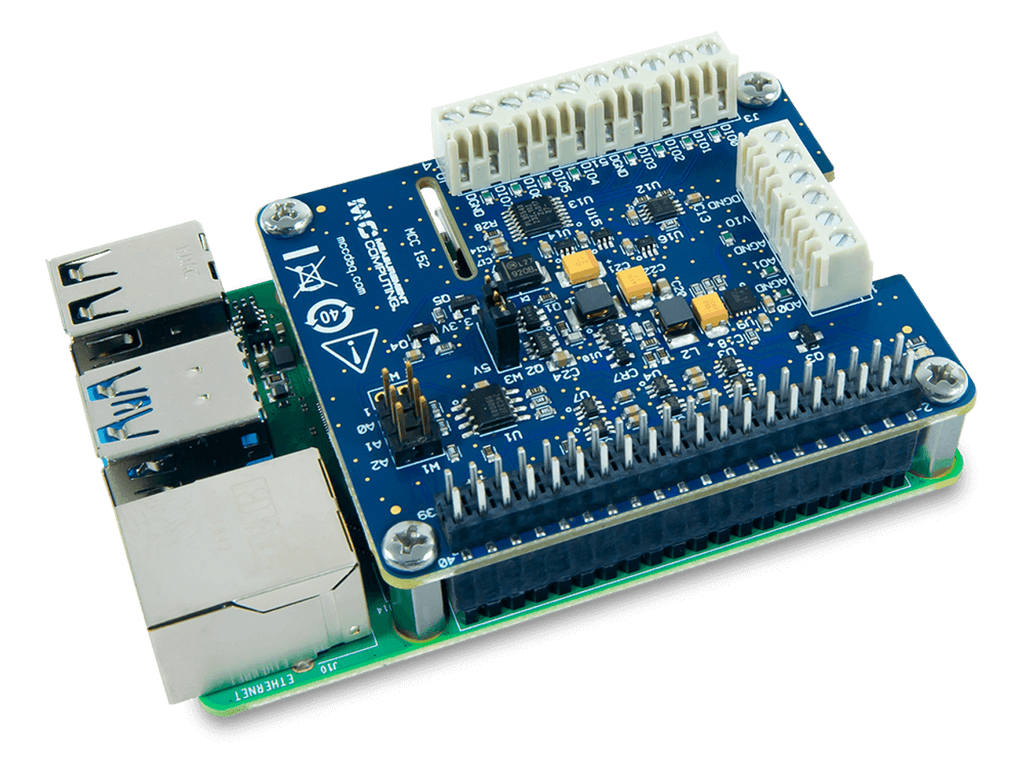

The Measurement Computing MCC 152 Voltage Output and DIO HAT features two channels of analog voltage output and eight digital I/O for Raspberry Pi-based systems. The 12-bit voltage outputs feature a 0-5 V range and can be updated at up to 5 kS/s. Up to eight MCC HATs can be stacked onto one Raspberry Pi.

All DAQ HATs include C/C++^® and Python^™ examples and open-source library. Comprehensive API and hardware documentation are also provided.

There are five devices in the MCC DAQ HAT Series. Models are available with voltage inputs, thermocouple inputs, IEPE-based sensor inputs, analog outputs, and digital I/O allowing users to configure multifunction, Raspberry Pi-based data logger solutions.

Raspberry Pi is not included with the MCC 152.

Features:

• Two 12-bit simultaneous voltage outputs
• 5 mA output drive, sourcing
• 0.8 V/µs slew rate
• Eight bidirectional digital bits
• 5V / 3.3V operation; CMOS input thresholds
• Programmable input polarity
• Screw terminal connections

Included:

• One MCC 152 DAQ HAT
• 2x20 Header connector (plugs into the 40 pin GPIO connector on the Pi board)
• Jumpers (3)
• Standoffs (4)
• Screws (4)
• Nuts (4)
• Printed insert: Getting Started with MCC DAQ HATs
• MCC packaging assembly/foam, etc.
