MCC 118 Voltage Measurement DAQ HAT, 12b, 100kS/s, OEM
DG-6069-410-000-OEM
₹ 10,266.00
Taxes included.
Shipping calculated at checkout.
Description

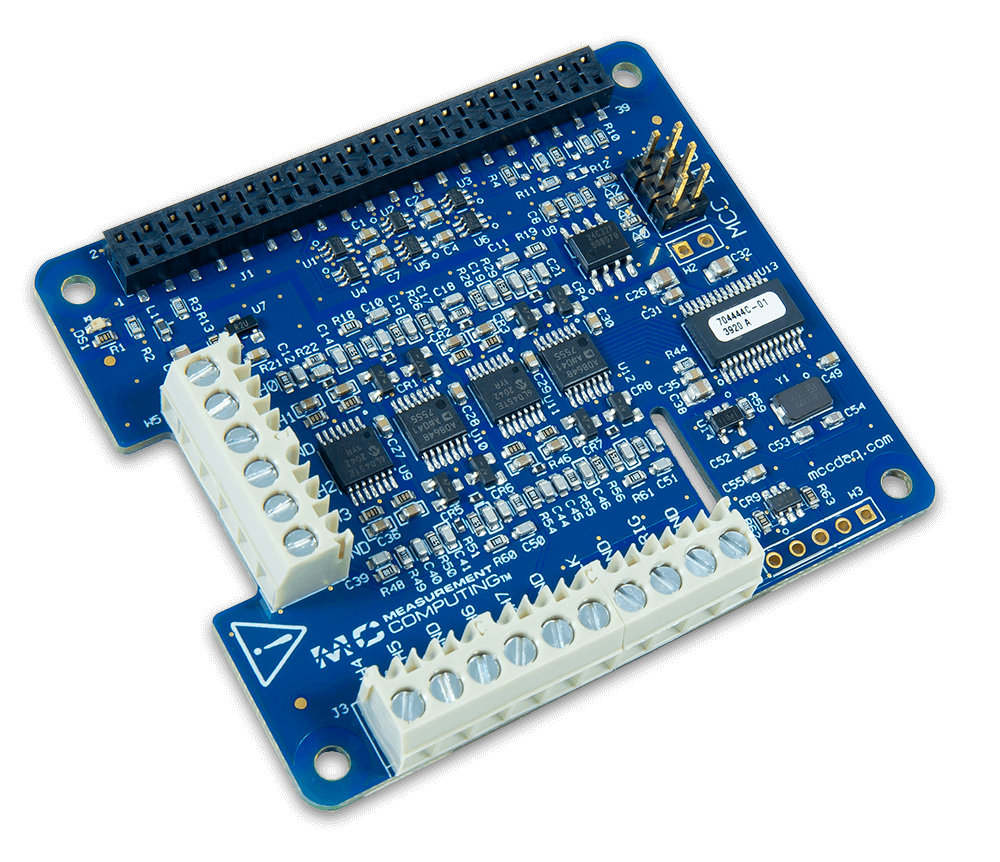

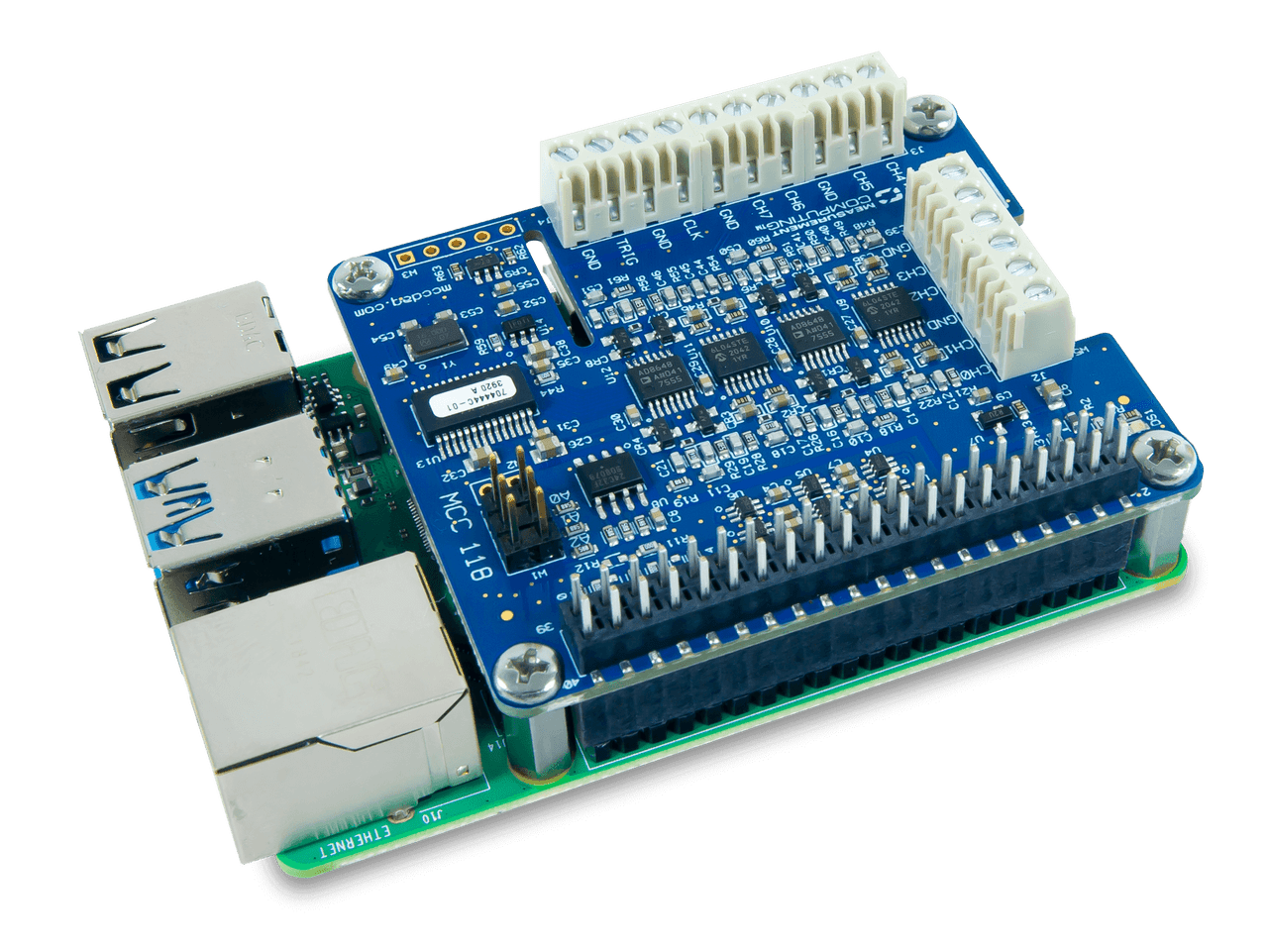

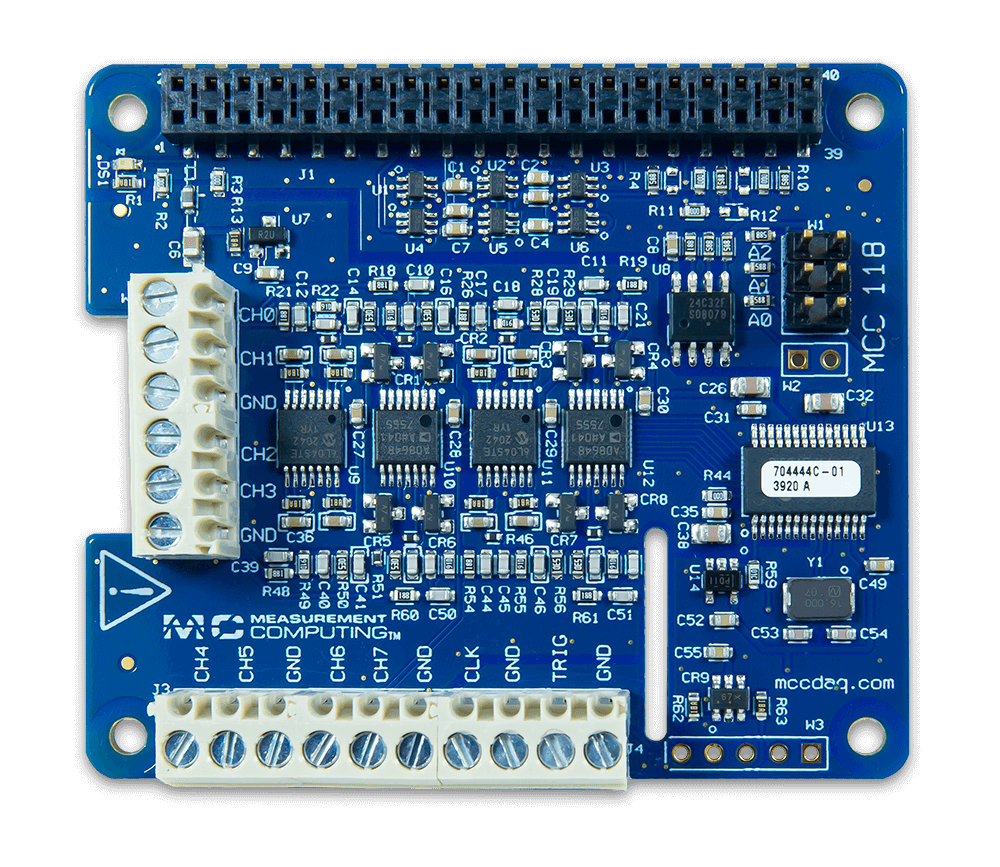

The MCC 118 DAQ HAT features eight channels of analog voltage measurement for Raspberry Pi-based data acquisition systems, with a maximum sample rate of 100 kS/s. This OEM version omits the screw terminal connectors, using header connectors only. Up to eight MCC HATs can be stacked onto one Raspberry Pi, providing up to 64 channels and 320 kS/s aggregate throughput.
- 8 single-ended, 12-bit voltage inputs; ±10V input range
- 100 kS/s max sample rate (320 kS/s aggregate for stacked boards)
- Onboard sample buffers for high-speed acquisition
- External scan clock I/O and external digital trigger input
- Open-source MCC DAQ HAT Library (C/C++, Python) for Raspberry Pi OS, available on GitHub
Raspberry Pi not included.
Shipping & Compliance Details
- Country of Origin: HU
- HTS Code: 8471809000
- RoHS Compliant: Yes
