OAK-FFC-OV9282-W
₹ 11,799.00
Skip to product information
Out of stock
Luxonis
OAK-FFC-OV9282-W
Luxonis-OAK-FFC-OV9282-W
₹ 11,799.00
Taxes included.
Shipping calculated at checkout.
Description

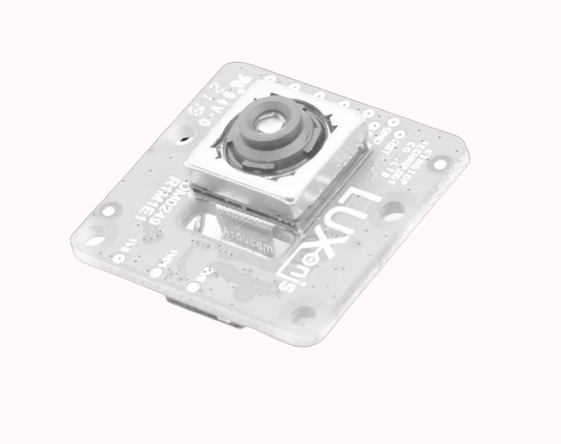

The OAK-FFC-OV9282-W is a wide field-of-view carrier board for the OV9282 global-shutter camera module, designed for OAK-FFC-3P and OAK-FFC-4P baseboards and ideal for builders needing ultra-wide, high-speed mono capture.
Key highlights
- OV9282 sensor: 1MP (1280 x 800) at up to 120 FPS.
- Ultra-wide FOV: 150° DFOV / 127° HFOV / 79.5° VFOV coverage.
- Fixed focus: sharp from 19.6 cm to infinity.
- Baseboard ready: works with OAK-FFC-3P and OAK-FFC-4P.
Specifications
| Specs | Value |
|---|---|
| Sensor | OV9282 |
| DFOV / HFOV / VFOV | 150° / 127° / 79.5° |
| Resolution | 1MP (1280x800) |
| Focus | FF: 19.6cm - ∞ |
| Max Framerate | 120 FPS |
| Pixel Size | 3µm x 3µm |
| Distortion | < 38% |
| Lens size | 1/4” |
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
