OAK-FFC-IMX378-FF
₹ 10,599.00
Skip to product information
Out of stock
Luxonis
OAK-FFC-IMX378-FF
Luxonis-OAK-FFC-IMX378-FF
₹ 10,599.00
Taxes included.
Shipping calculated at checkout.
Description

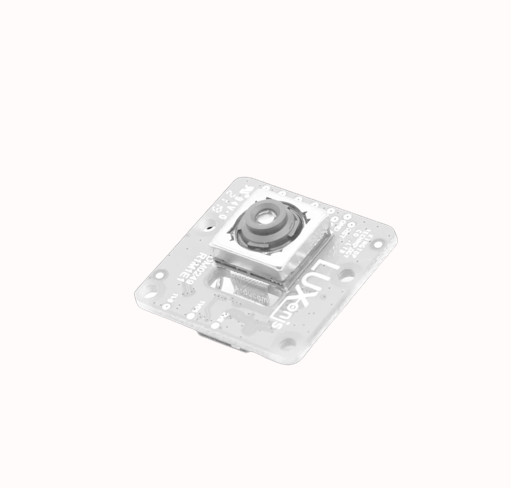

The OAK-FFC-IMX378-FF is a fixed-focus carrier board for the 12MP IMX378 camera module, designed for OAK-FFC-3P and OAK-FFC-4P baseboards and suited to builders who need low-distortion, high-resolution color imaging.
Key highlights
- 12MP color: 4032 x 3040 IMX378 sensor.
- Low distortion: under 1.5% for accurate imaging.
- 60 FPS: smooth high-frame-rate capture.
- Fixed focus: sharp from 50 cm to infinity.
- Baseboard ready: works with OAK-FFC-3P and OAK-FFC-4P.
Specifications
| Specs | Value |
|---|---|
| Sensor | IMX378 |
| DFOV / HFOV / VFOV | 82° / 69° / 55° |
| Resolution | 12MP (4032x3040) |
| Focus | FF: 50cm - ∞ |
| Max Framerate | 60 FPS |
| Pixel Size | 1.55µm x 1.55µm |
| Distortion | < 1.5% |
| Lens size | 1/2.3” |
Documentation & resources
Full hardware docs and the DepthAI SDK are available from Luxonis.
