C2000 Piccolo MCU F28027 LaunchPad™ development kit

Step 1: Buy the C2000 MCU F28027 LaunchPad

Step 2: Step 2: Follow the get started section

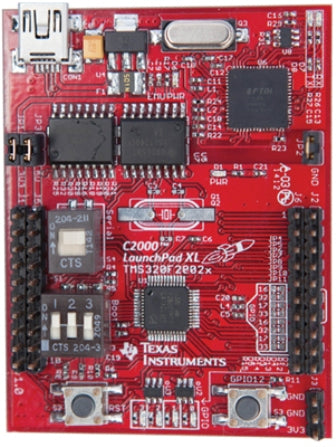

LAUNCHXL-F28027 is a low cost evaluation and development tool for the F2802x series in the TI MCU LaunchPad ecosystem which is compatible with various plug-on BoosterPacks. The LaunchPad provides a standardized and easy to use platform to use while developing your next application.

Features

Hardware features

• USB connected isolated XDS100 JTAG debug probe for real-time debug and flash programming
• 2x 20-pin headers/connectors with access to all device pins
• Programmable buttons and LEDs
• Superset TMS320F28027: 60 MHz C28x CPU, 64 KB Flash, 8 PWM Channels, 12-bit ADC, capture interface, UART, SPI, and more
• Hardware Files are in C2000Ware at boards\LaunchPads\LAUNCHXL_F28027

• Free download of Code Composer Studio IDE
• Free download of controlSUITE for device drivers and example projects
• MathWorks Embedded Target Support

Get started

• Install Code Composer Studio IDE and controlSUITE
• Connect the LaunchPad using the included mini-USB cable to a computer
• Open a serial terminal program of your choice (Putty, HyperTerm, etc.) and configure it to access the LaunchPad virtual COM port with 115200 Baud, 8-bit data, No parity, and single stop Bit. The COM port number can be found by opening your computer’s Device Manager
  • Ensure that the XDS200v2’s second port is a serial port. Refer to the XDS100 Wiki for the configuration details
  • Ensure that S4 is in the UP position to enabled the USB<->UART channel
• When connected to your computer, the device’s internal temperature sensor is sampled to establish a reference temperature and GPIO3 LED is lit in the nibble wide LED display (8 in hexadecimal)
• Any increase or decrease in temperature is displayed as an increment or decrement of this binary display
• The serial terminal will display the latest temperature reading
• Build and load other examples in controlSUITE
• Ask questions on the TI C2000 e2e forum

What's Included

• Piccolo F28027 LaunchPad
• Mini USB Cable
• Quick Start Guide
