Waveshare Electronics
IMX335 5MP USB Camera (A)
SKU: Waveshare 18584
₹ 4,599.00
Taxes included.
Shipping calculated at checkout.
Description
IMX335 5MP USB Camera, Large Aperture F1.08, 30FPS 2K Video Recording, Plug-and-Play, Driver Free
5MP M16 camera module
IMX335 sensor, USB port, manually focusing
Specifications
| Pixels | 5MP | |
|---|---|---|
| Sensor | IMX335 | |
| Interface | USB (UVC 1.0 compliant) | |
| Camera | Sensor size | 1/2.8 inch |
| Aperture (F) | 2.1 | |
| Focal length (EFL) | 4.0 mm | |
| Field of view (FOV) | 106.9°(D) 89.1°(H) 46.9°(V) | |
| Focusing | manually focusing | |
| Image | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 20 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| Operating voltage | 5V ± 5% | |
| Camera size | 23.50 × 19.50 × 36.94 mm | |
| Module size | 38.00 × 38.00 mm | |

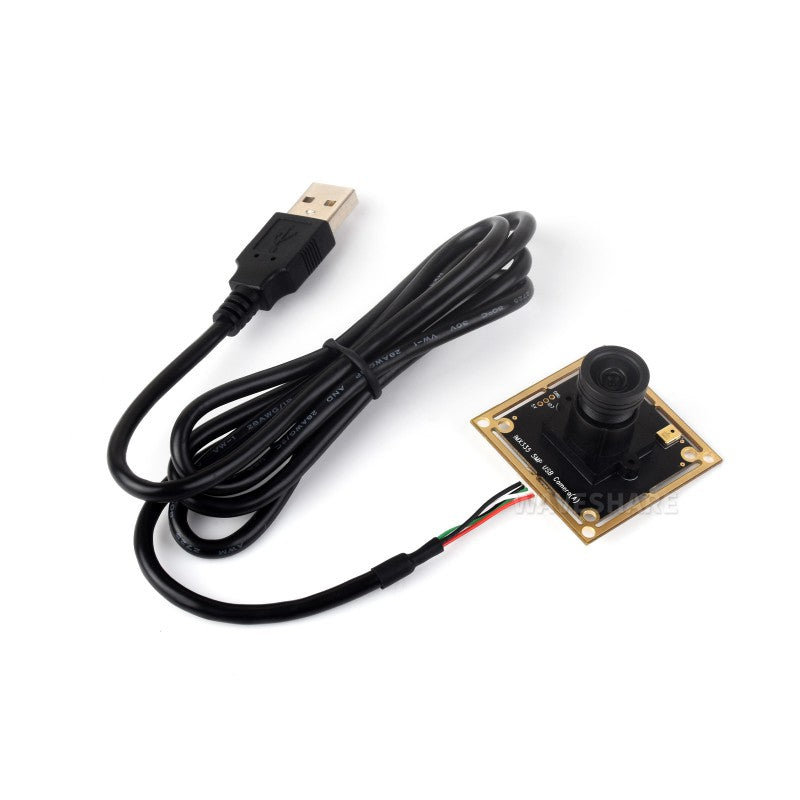

Connecting with USB cable
Outline dimensions
Selection Guide
| Part Number | Pixels | Sensor | Best Resolution | Dimension | Field of View | Feature |
|---|---|---|---|---|---|---|
| OV2710 2MP USB Camera (A) | 2MP | OV2710 | 1920x1080 | 38x38mm | 145° | Low-light sensitivity |
| OV5693 5MP USB Camera (A) | 5MP | OV5693 | 2592x1944 | 18×40mm | 135° | Auto focus |
| OV5693 5MP USB Camera (B) | 5MP | OV5693 | 2592x1944 | 8.5×60.2mm | 75° | Small size, auto focus |
| OV5640 5MP USB Camera (B) | 5MP | OV5640 | 2592x1944 | 9×62mm | 68° | Small size, auto focus |
| OV5640 5MP USB Camera (C) | Small size | |||||
| IMX335 5MP USB Camera (A) | 5MP | IMX335 | 2592x1944 | 38×38mm | 106.9° | Manual focus, low-light sensitivity, wide dynamic range |
| IMX335 5MP USB Camera (B) | 5MP | IMX335 | 2592x1944 | 25×24mm | 175° | Fixed-focus, wide angle, low-light sensitivity, wide dynamic range |
| IMX179 8MP USB Camera (A) | 8MP | IMX179 | 3288x2512 | 38x38mm | 145° | HD, embedded digital mic |
| IMX179 8MP USB Camera (B) | 8MP | IMX179 | 3264×2448 | 9×62mm | 75° | HD, small size, auto focus |
| IMX258 13MP OIS USB Camera (A) | 13MP | IMX258 | 4208×3120 | 38×38mm | 127° | HD, OIS |
