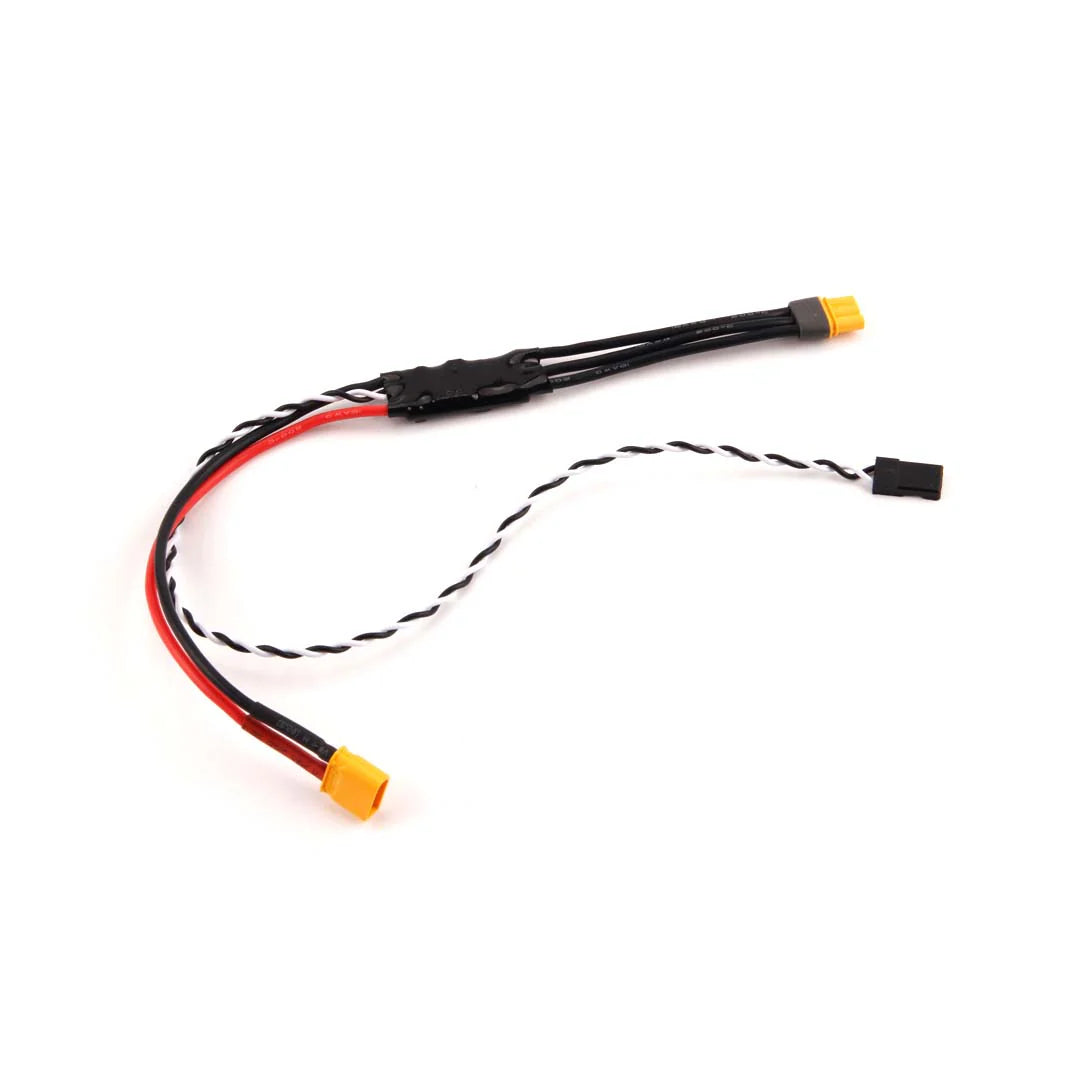

Holybro BLHeli S 20A ESC

Description

Holybro 20A ESC is compatible with X500 and also offers PMW,Oneshot,DSchot and MiltiShot.

Features

• EFM8BB21F16G MCU, 8-bit C8051 core with pipelining and a maximum operating frequency of 50 MHz.
• Dedicated high frequency driver
• maximum speed is 500k eRPM
• The code supports regular 1-2ms pulse width PWM input, as well as oneshot and multshot
• The input signal is automatically detected by the ESC at power-up

Technical Data

• Model: BLHeli-S ESC
• Con. Current: 20A
• Burst Current(10S): 30A
• BEC: No
• LiPo cells: 2-4S
