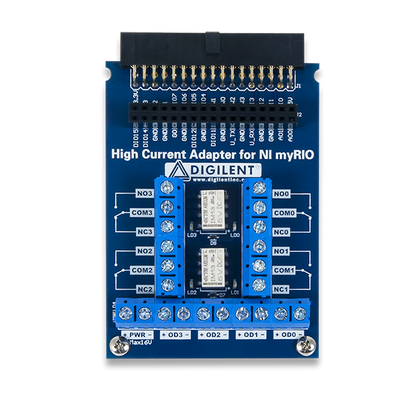

High Current Adapter for NI myRIO

With the High Current Adapter, you can use your NI myRIO to interact with high current applications such as driving LED Strips, relays, and servos. (For motor applications, please see the myRIO Motor Adapter Board.)

The High Current Adapter is able to run applications from 3V-16V and can deliver current up to 4A, providing users with a way to plug their applications in directly without any additional electronics required.

Features:

• Uses the myRIO Expansion Port (MXP) connector

• Supports 3V - 16V output voltage (external power supply required)

• 4 open-drain outputs
  • Continuous current: 3.0A (25°C) / 2.2A (85°C)
  • Peak output current: 4.1A (t<5s)
• 4 standard 3 terminal relay outputs
  • Common, normally closed, normally open
  • Relay output max switching voltage: 30V
  • Rated Current: 1A
• 34-pin female breakout allowing direct user access to signal pins

What's Included:

• High Current Adapter

• Custom Digilent cardboard box with protective foam
