Feetech STS3215
C018 Servo – 12V 30KG
₹ 2,399.00
Skip to product information
In stock
MG Super Labs
Feetech STS3215
WR Feetech STS3215 C046
₹ 2,399.00
Taxes included.
Shipping calculated at checkout.
Description

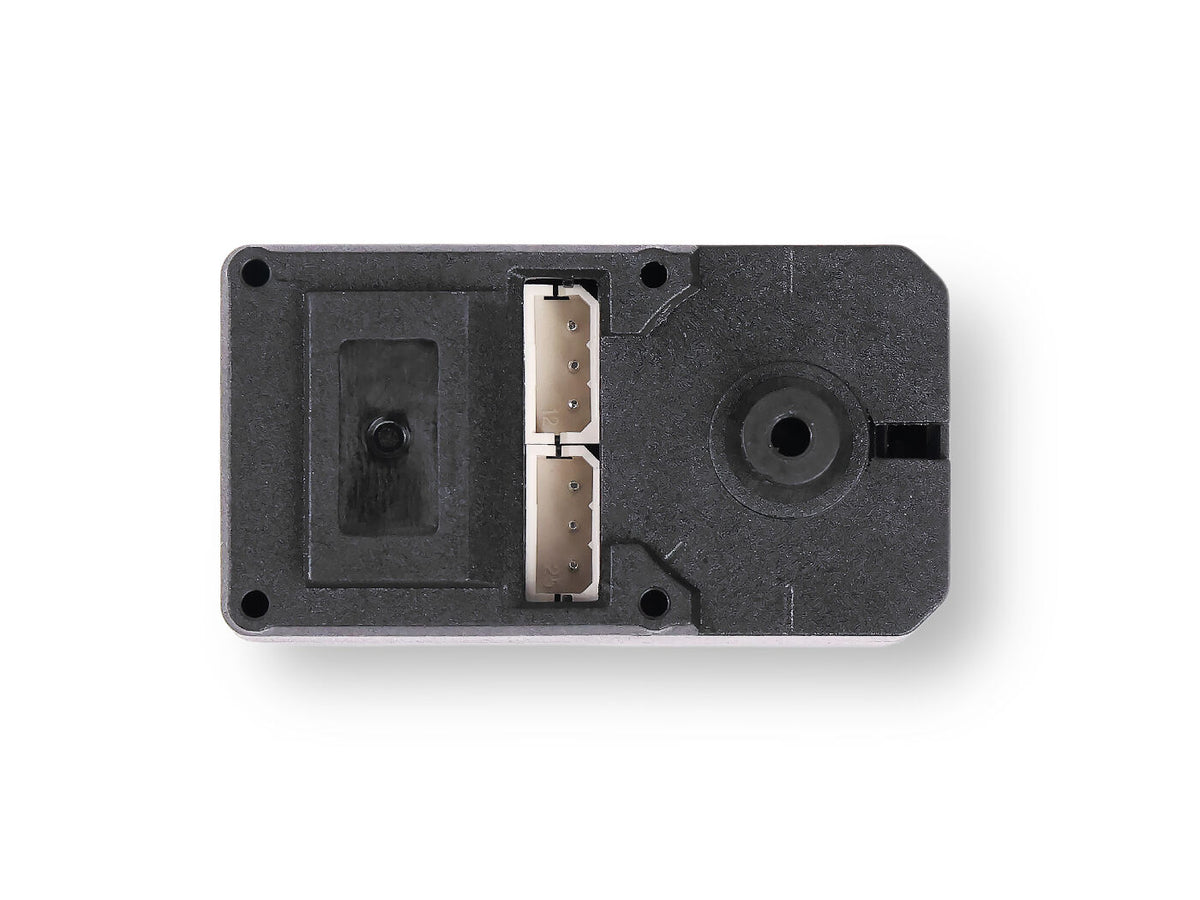

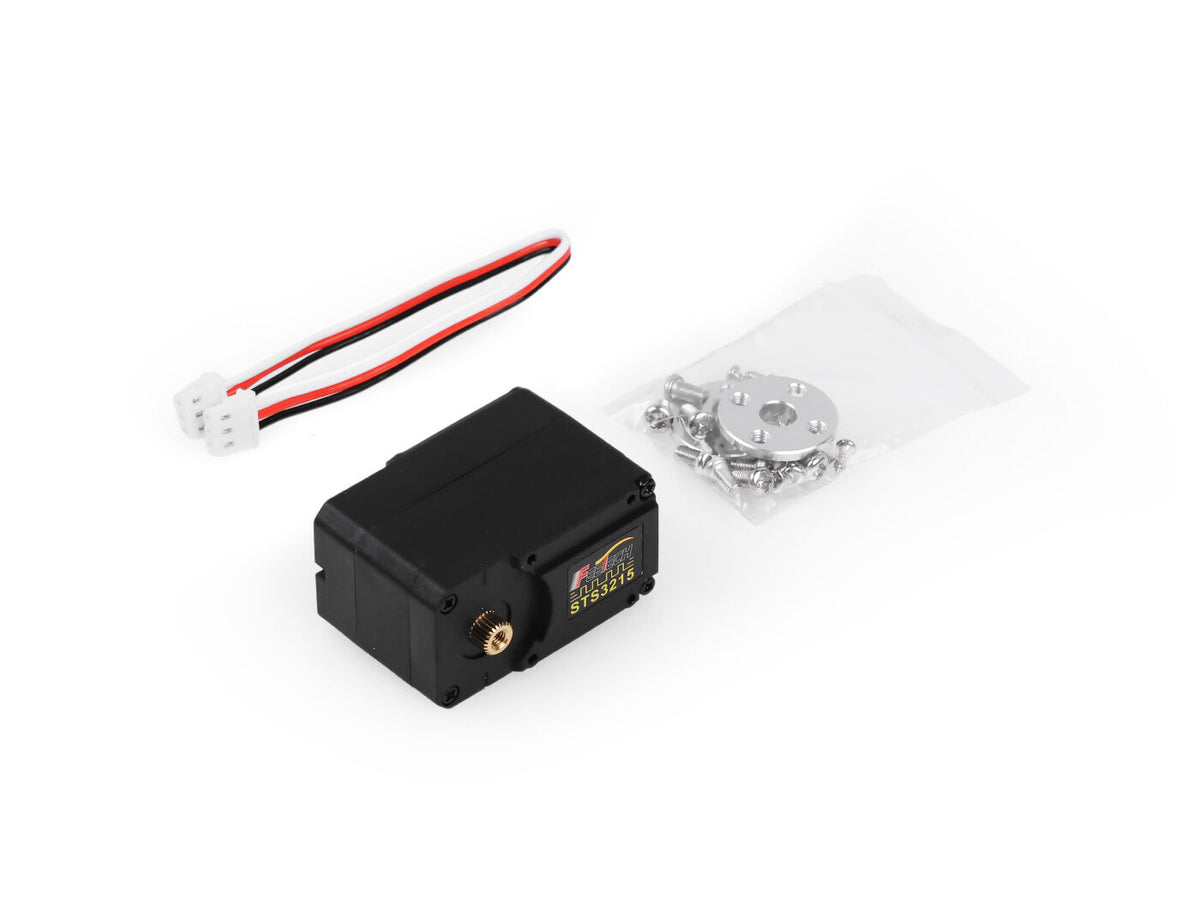

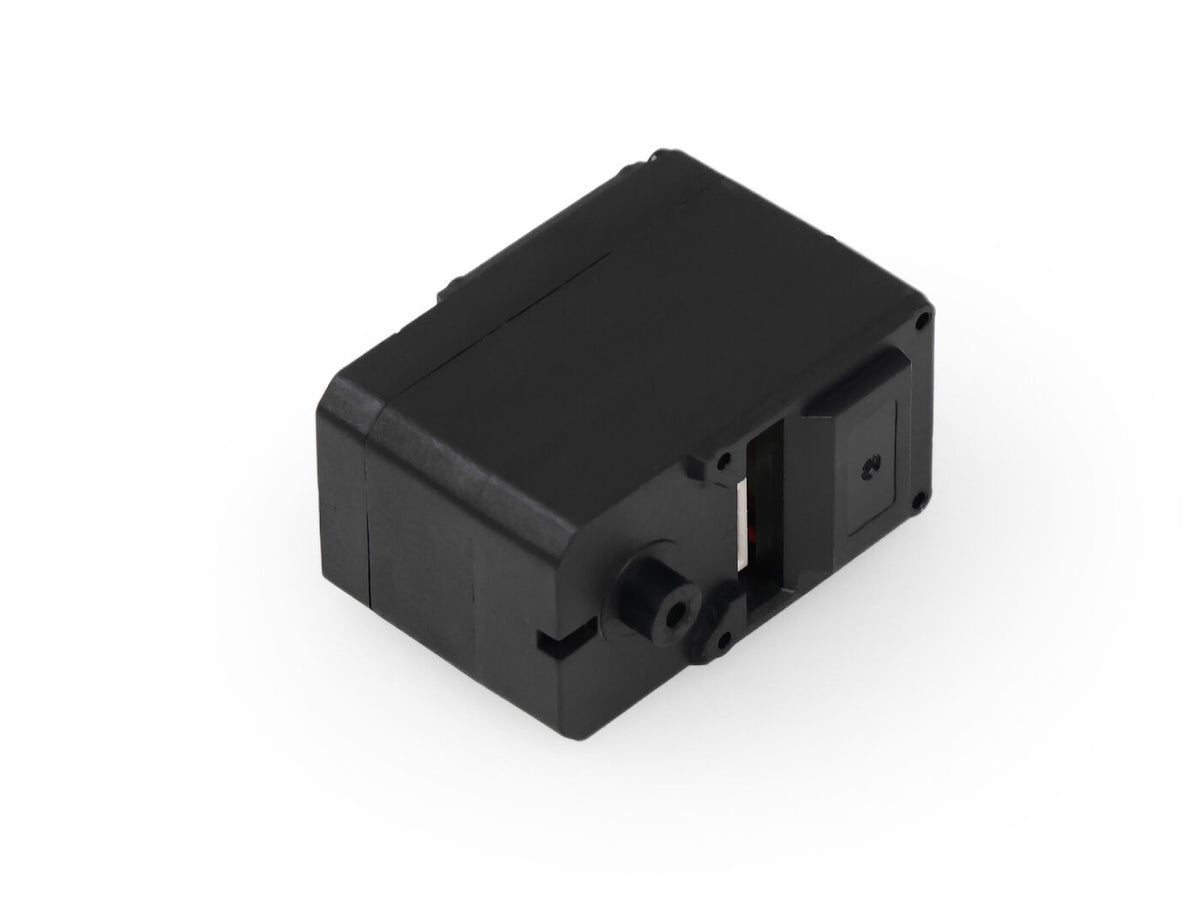

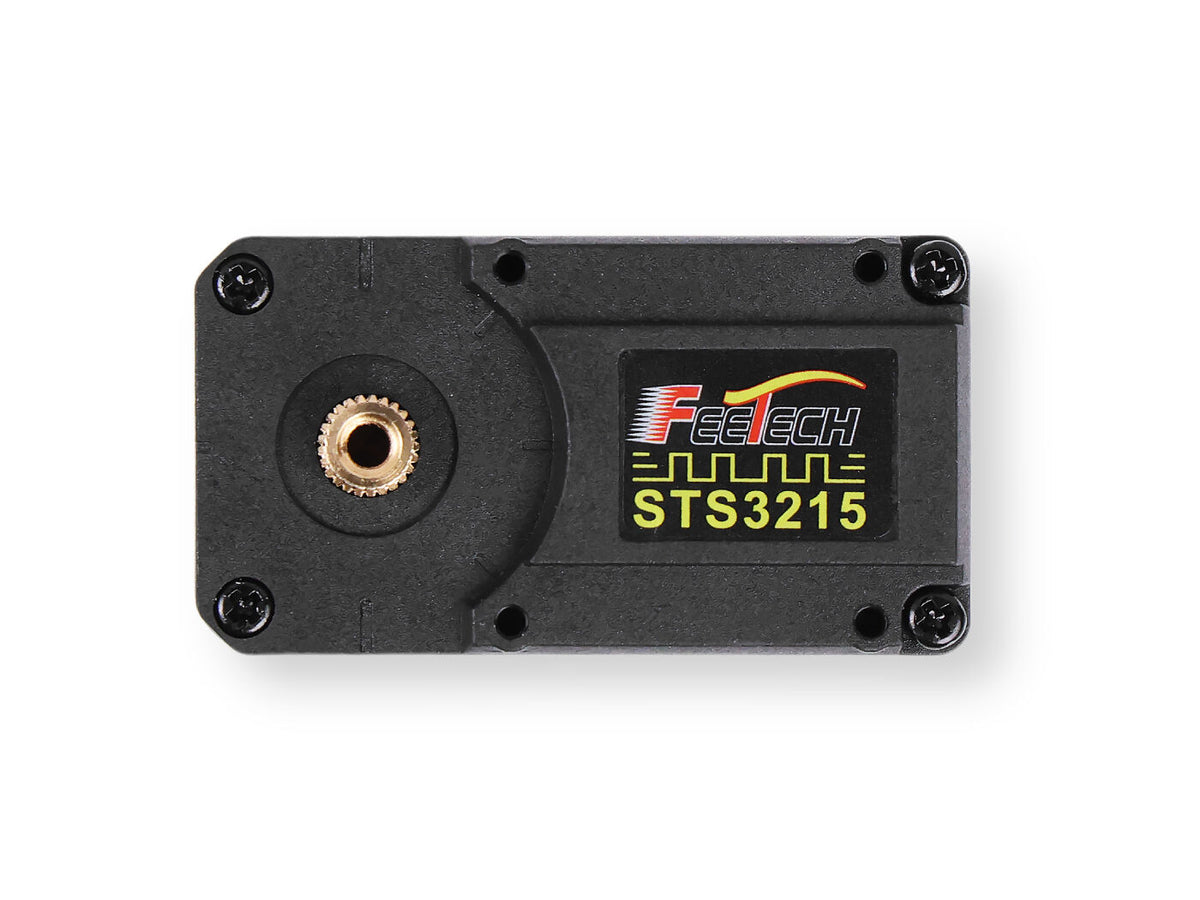

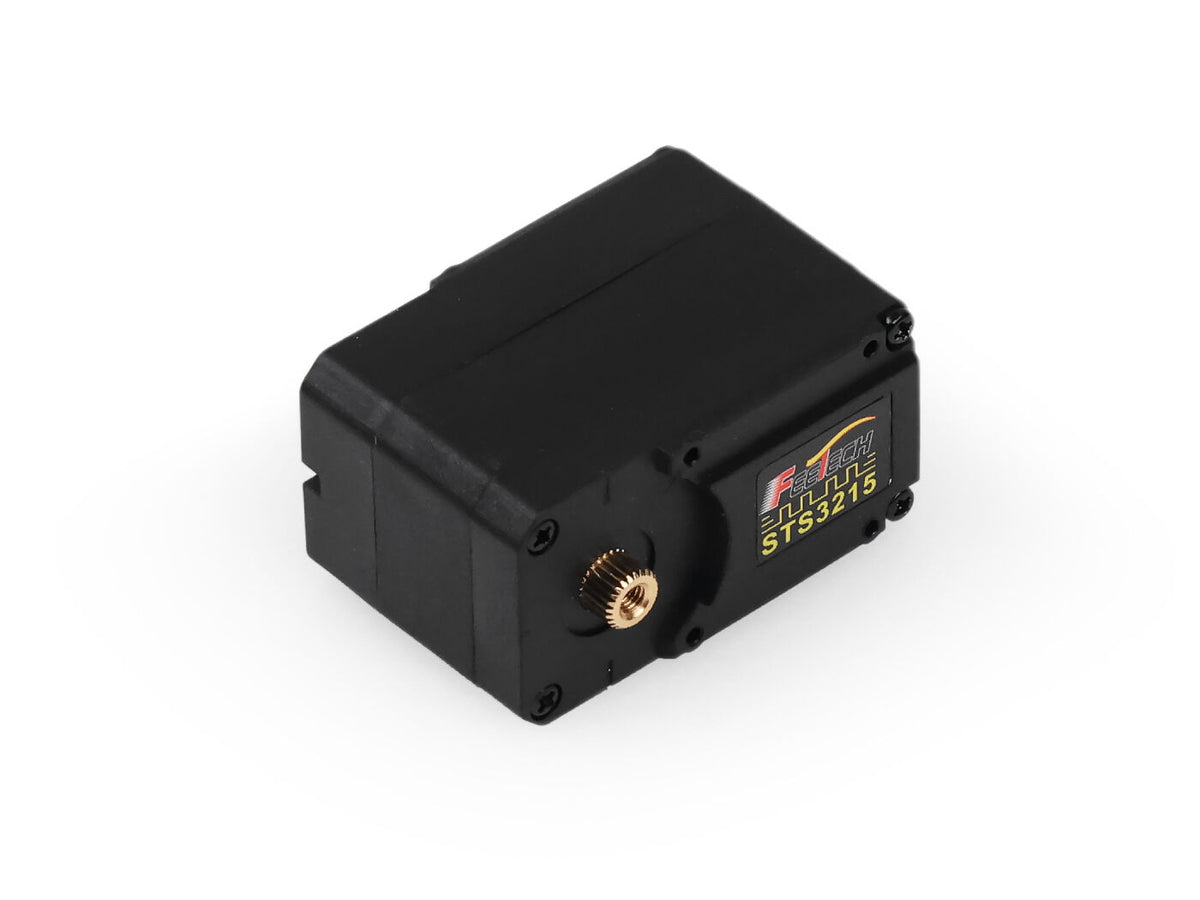

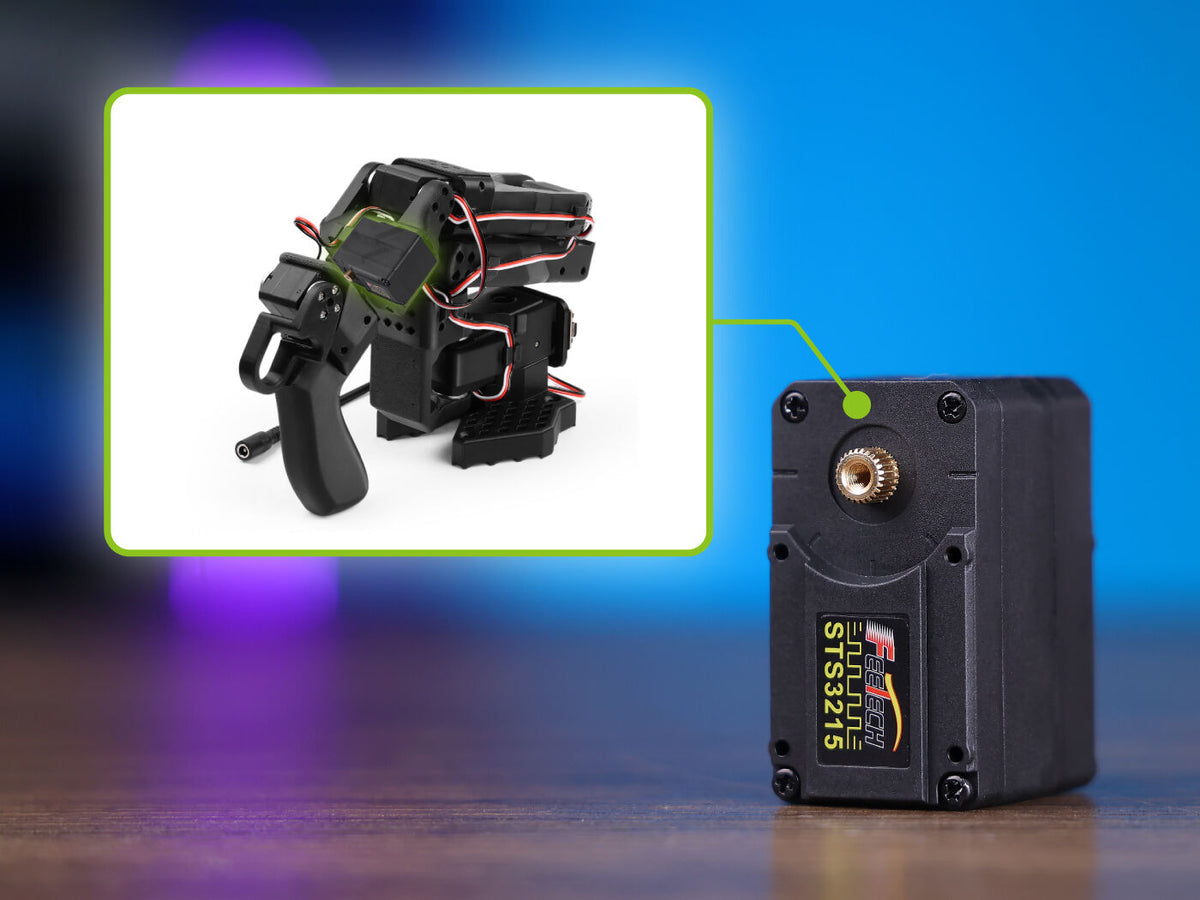

The Feetech STS3215 is a popular digital serial bus smart servo offering 360-degree control and closed-loop telemetry, widely used in DIY robotics and open-source robotic arms like the SO-ARM100.
Key Specifications & Features
Operating Voltage: Available in 6V–7.4V (approx. 19 kg.cm torque) and 12V (up to 30 kg.cm stall torque) variants.
Encoder: High-precision 12-bit magnetic encoding sensor (4096 steps position feedback).
Control Interface: TTL serial bus communication supporting daisy-chain connections and programmable parameters (speed, acceleration, ID).
Feedback Telemetry: Real-time data reporting for position, speed, load, voltage, current, and temperature with built-in overload protection.
