Ettus USRP B205mini-i: 1x1, 70MHz-6GHz SDR/Cognitive Radio

Ettus USRP B205mini-i: 1x1, 70MHz-6GHz SDR/Cognitive Radio

DG-6002-410-021

Rs. 120,759.00
Rs. 120,759.00
Sale Sold out
Taxes included. Shipping calculated at checkout.

Out of stock

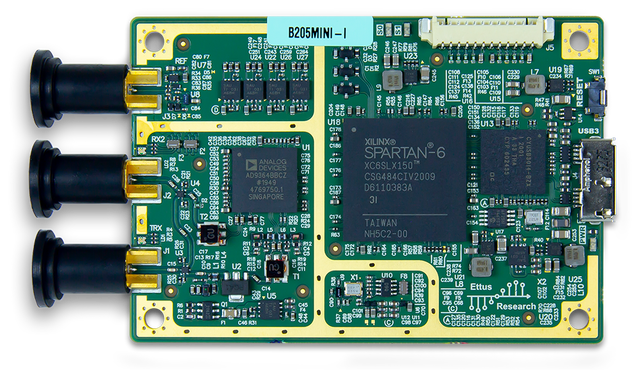

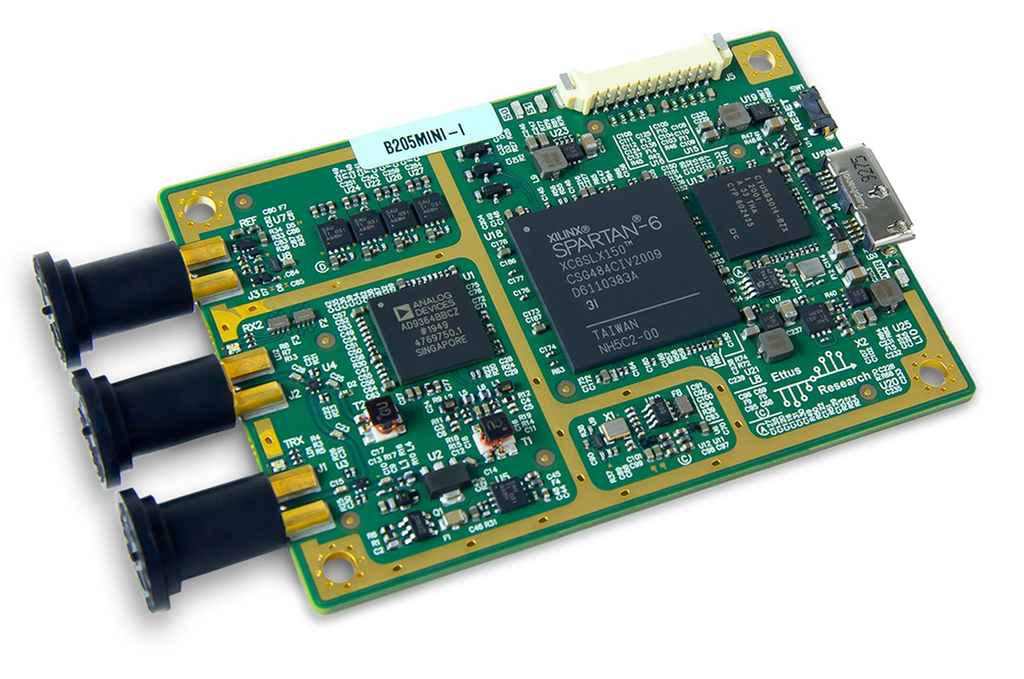

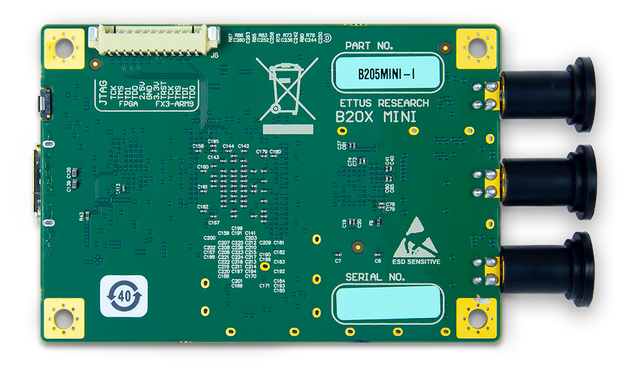

The USRP B205mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by Ettus Research™ and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade Xilinx Spartan-6 XC6SLX150 FPGA. The similar Ettus USRP B200mini is limited to a narrower operating temperature range and utilizes a smaller FPGA.

The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B205mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.

Experimentation with Low-cost SDR

Experiment with the USRP B205mini-i across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.

Features
RF Specifications
    • Channels: 1 TX, 1 RX
    • Frequency range: 70 MHz to 6 GHz
    • Instantaneous Bandwidth: Up to 56 MHz
    • IIP3 (at typical NF): -20 dBm
    • Power Output: >10 dBm
    • Receive Noise Figure: <8 dB
Conversion Performance and Clocks
    • ADC Sample Rate (Max.): 61.44 MS/s
    • ADC Resolution: 12 bits
    • DAC Sample Rate (Max.): 61.44 MS/s
    • DAC Resolution: 12 bits
    • Host Sample Rate (16b): 61.44 MS/s
    • Frequency Accuracy: +/-2.0 ppm
Power
    • USB Power: 5V
Physical
    • Dimensions: 83.3 x 50.8 x 8.4 mm
    • Weight: 24.0 g
Environment
    • Operating Temp. Range: 0 - 45 °C (extended to -40-75 °C with enclosure kit)
    • USRP Hardware Driver 3.9.2 (or later)
    • GNU Radio
Synchronization
    • 10 MHz clock reference
    • PPS time reference
Product Compliance
    • HTC: 8471809000
    • ECCN: 3A992.a

What's Includes

  • USRP B205mini-i (Board Only)
  • USB 3.0 cable
