Phidgets

40 CPR Quadrature Encoder

40 CPR Quadrature Encoder

Phidgets-ENC4109_0

Rs. 1,159.00
Rs. 1,159.00
Sale Sold out
Tax included.

1 in stock

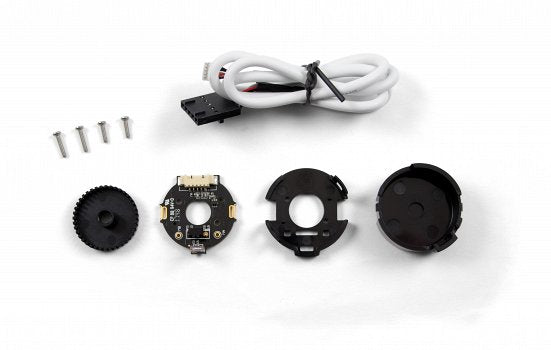

This simple and affordable quadrature-output encoder fits onto the rear shaft of a motor so its position and velocity can be monitored.

There are so many projects that require motor position control that Phidgets decided to make an inexpensive, reliable option. The ENC4109 is exactly that: an affordable optical quadrature encoder that is compatible with the mounting pattern of the majority of the DC and stepper motors sold here (the same mounting pattern as the higher precision 3531_0 Optical Rotary Encoder HKT22).

Specifications

Encoder Properties
Controlled By Encoder Interface
Output Circuit Type Push-Pull
Encoder Speed Max 6000 RPM
Encoder Resolution 40 CPR
Electrical Properties
Supply Voltage Min 2.7 V DC
Supply Voltage Max 7 V DC
Output Frequency Max 12.5 kHz
Physical Properties
Operating Temperature Min -40 °C
Operating Temperature Max 85 °C
IP Rating IP65
View full details
