Embedded Vision Bundle

The Embedded Vision Bundle makes a valuable tool for anyone looking develop their own embedded vision products and applications, or to learn more about embedded vision concepts. The bundle includes the Zybo Z7-20 Zynq-7000 ARM/FPGA SoC development board, the Pcam 5C 5 megapixel color camera module, and the 15-pin flat-flexible cable (FFC). Data is transferred using the Omnivision OV5640 image sensor's native MIPI CSI-2 interface, resulting in extremely low latency. We've made this uniquely low-level camera solution available free and open-source on the Digilent Wiki, including D-PHY receiver, CSI-2 decoder, Bayer to RGB converter, and gamma correction IP.

Included in the kit:

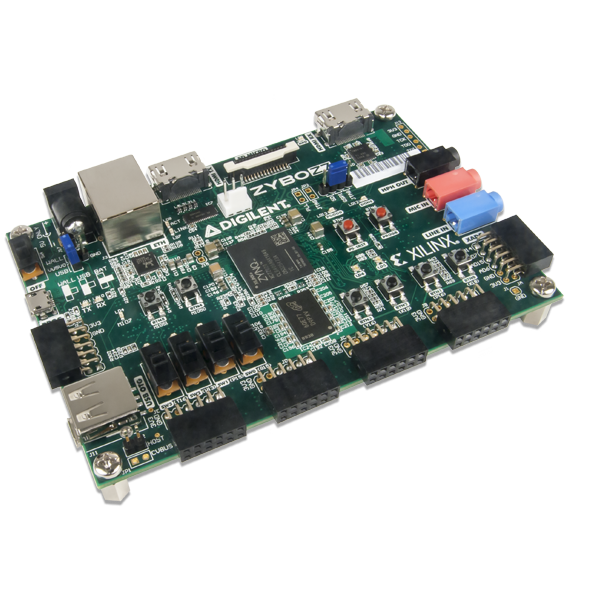

• Zybo Z7-20 Zynq-7000 ARM/FPGA SoC Development Board
• SDSoC Voucher
• Pcam 5C 5 MP Fixed Focus Color Camera Module
• 10 cm FFC Cable
• Factory Installed Fixed Focus Lens with M12 Lens Mount
