DT9824, Simultaneous USB DAQ, 24B, 4800Hz/CH
₹ 223,138.00
Skip to product information
Out of stock
MCC

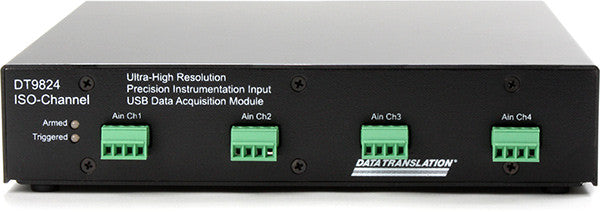

DT9824, Simultaneous USB DAQ, 24B, 4800Hz/CH
DG-6069-410-135
₹ 223,138.00
Taxes included.
Shipping calculated at checkout.
Description
The DT9824 is a USB-based DAQ module offering four simultaneous, fully isolated 24-bit analog inputs designed for high stability and accuracy. Digilent's ISO-Channel technology isolates every analog and digital signal individually for strong noise immunity, making it well suited to chromatography, seismic, weigh-scale, and medical applications.
- 4 simultaneous analog inputs, 24-bit resolution, up to 4.8 kS/s/ch
- ±500 V galvanic channel-to-channel isolation
- 8 digital inputs and 8 digital outputs, isolated up to 250 V
- Bus-powered via USB 2.0; no external power required
- Compatible with LabVIEW and MATLAB; includes free QuickDAQ software
Shipping & Compliance Details
- Country of Origin: HU
- HTS Code: 8471809000
- RoHS Compliant: Yes
