Voice Recorder Module-Breakout

INTRODUCTION

Wanna buy a simple & practical voice recorder? This one is right for you! The voice recorder module supports 4 controlling modes (Arduino, AT command, on-board buttons, and ADKEY), and multi-segment voice recording. You can directly press the on-board buttons to record or play voice without using a controller. Moreover, the 16MB storage on the module can store up to 40 minutes of voice recording and the recorded files can be copied to your computer via the type-C interface.

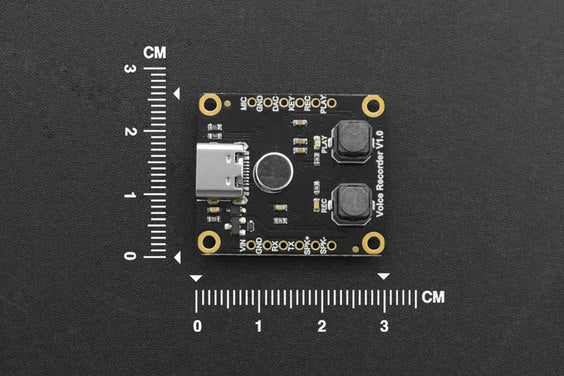

Board Overview

FEATURES

• Support about 40 minutes voice recording
• Support multi-segment voice recording
• Voice recording/playing via on-board buttons
• On-board power amplifier
• Support analog U-disk

APPLICATIONS

• DIY Plush Toys
• Handmade Personalized Gift
• Event Voice Memo

SPECIFICATION

• Operating Voltage: 3.3~5V
• Operating Current: >10mA
• Storage: 16MB
• Sampling Rate: 48kbs
• Communication: UART
• Dimension: 26*30mm/1.02*1.18”

SHIPPING LIST

• Voice Recorder Module-Breakout x1
• 2.54-6P Single-Row-Pin Black x2
