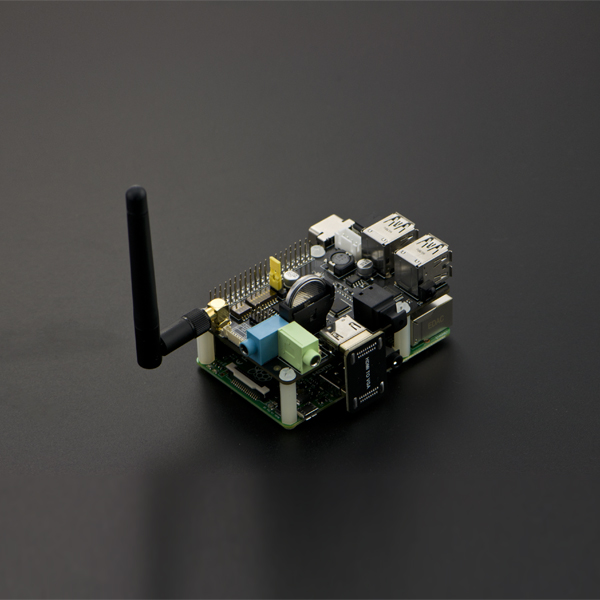

Expansion Shield X200 for Raspberry Pi B+/2B/3B

INTRODUCTION

The Expansion Shield X200 is a most cost-effective shield which could apply to Raspberry Pi Model B+ and Raspberry Pi 2 Model B. It integrates a lot of very useful functions such as RTC real time clock; audio input and output; VGA output; USB hub; WIFI; 8-way GPIO. With this shield, you can build Raspberry Pi projects more easily and save both time and cost.

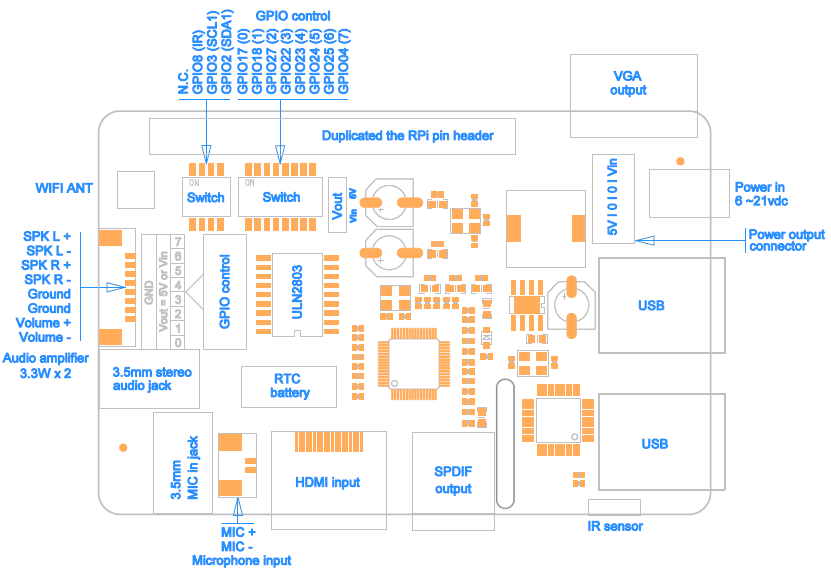

SPECIFICATION

• Input Voltage: 6V to 21Vdc converted to 5V, 3A via step-down DC/DC converter to power the Raspberry Pi
• VGA output: HDMI to VGA converter supporting up to UXGA (1600×1200) and 1080p with 10-bit DAC
• Audio: 3.5mm MIC in jack
•        3.5mm stereo audio jack
•        SPDIF output
•        Audio IO connector (Microphone input and stereo audio amplifier 3.3Wx2)
• Wireless: WiFi (IEEE 802.11b/g/n) with external antenna
•           IR sensor (38KHz)
• USB Storage: Self-powered USB hub with 3 ports
• Real-time clock (RTC): Based on DS3231SN with included CR2032 battery
• GPIO Control: 8-channel Darlington driver chip  (ULN2803) allowing to control electronic circuits which require more current
• Misc: Power output socket
•       Camera flex slot so camera can still be used with the expansion  board attached
•       DIP switch to remove connection from RPi’s pin header
•       Directly connected on top of the Raspberry Pi using the board GPIO header pins
•       No wiring nor soldering is required
•       Duplicated the 40-pin header of the R-Pi in order to support existing expansion boards
•       Suitable for Raspberry Pi Model B+ and Raspberry Pi 2 Model B NEW!
• Dimensions: 85 x 56mm (Same size as Raspberry Pi)

Note: When you power Raspberry Pi with the shield power resource, please don't power it again via the Micro-USB port, it will damage the board!

SHIPPING LIST

• X200 Raspberry Pi expansion board x1
• HDMI adapter x1
• USB adapter x1
• 2.4GHz WIFI antenna x1
• nylon spacers (M3 x 20mm) x4
• nylon screws  (M3 x 6mm) x8
