DFRobot

DF Metal Geared 15Kg Standard Servo 270° (DSS-M15S)

DF Metal Geared 15Kg Standard Servo 270° (DSS-M15S)

DFR-SER0038

Rs. 1,479.00
Rs. 0.00 Rs. 1,479.00
Sale Sold out
Taxes included. Shipping calculated at checkout.
DSS-M15S is a heavy-duty metal gear standard servo with 270°wide angle, high torque power, improved stability and durability.

Able to take in 6V and deliver a strong torque power of over 15Kg, this tough 270°servo will never let you down when you need it. Tested with high load capacity for 12 hours long, this DSS-M15S servo demonstrates a maximum torque of 18Kg without much vibration or heat.

In addition, we enclose carefully selected steering parts, including an aluminum alloy wheel and a long bracket, to enhance servo performance.

SPECIFICATION

  • Voltage: 4.8-7.2 Volts
  • Torque: 13.5Kg*cm/15Kg*cm (6.0V/7.0V)
  • Speed: 0.18 sec/60°/0.16 sec/60° (6.0V/7.0V)
  • Free Run Current: 80mA/100mA (6.0V/7.0V)
  • Stall Current: 1.8A/2A (6.0V/7.0V)
  • Standby Current: 4mA/5mA (6.0V/7.0V)
  • Rotation: 270°
  • Wheel Gear: Metal
  • Gear Ratio: 310:1
  • Dimension: 54.5*20*47.5mm(2.15*0.79*1.87")
  • Signal: RC PWM
  • Pulse Range: 500-2500 us
  • Frequency: 50-330Hz（Arduion-compatible）

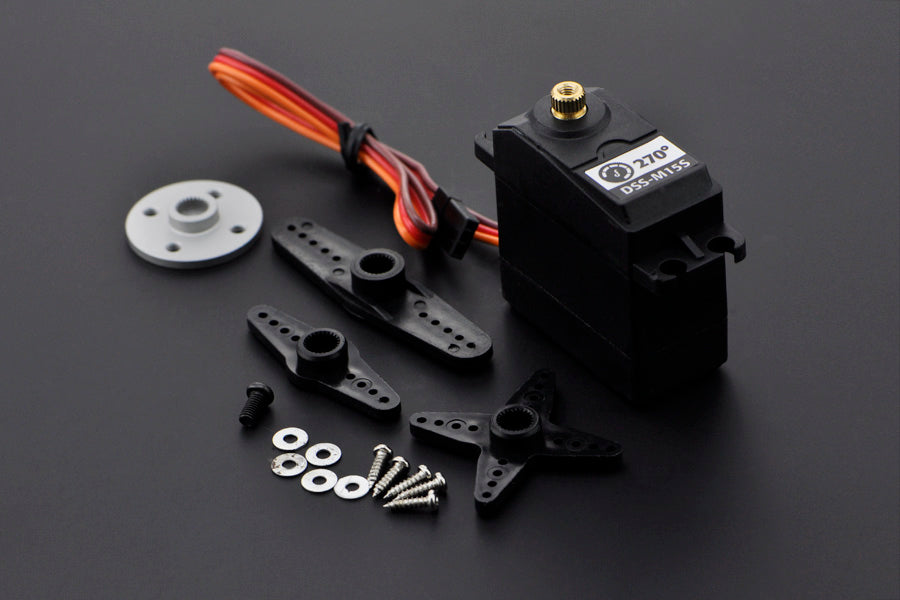

SHIPPING LIST

  • DSS-M15S Servo x1
  • Metal round servo horn x1
  • X servo horn x1
  • long straight servo horn x1
  • Straight servo horn x1
  • M2*8 self tapping screw x5
  • M2 screw washer x5
  • M3*6 screw x1
