CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V

CE-VZ02-32MS1-0.5 DC Voltage Sensor 0-200V

SKU:Phidgets-3509_1

Regular price Rs. 12,639.00
Regular price Sale price Rs. 12,639.00
Sale Sold out
Taxes included.

Out of stock

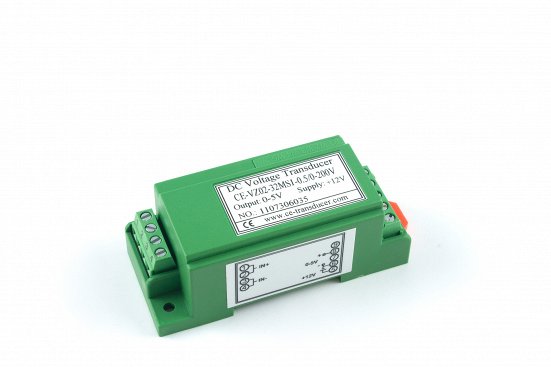

This DC Voltage sensor measures DC voltage up to 200V. Powered by an external 12VDC power supply, the DC Voltage Sensor provides a 0 to 5VDC analog signal that is linearly proportional to the voltage measured at the terminal blocks.

The DC Voltage Sensor can easily be mounted using the screw holes, or on a 35mm wide DIN rail for quick installation. The terminal blocks accommodate conductors of up to AWG #16.

The voltage sensor connects to an analog input on Phidgets I/O boards. The formula to translate the output voltage into measured voltage is:

V = Vout * 40

Connection

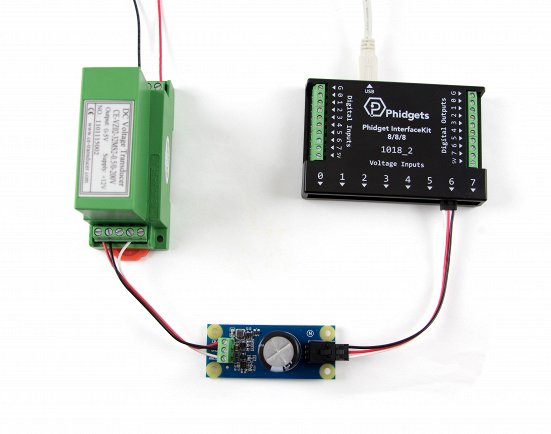

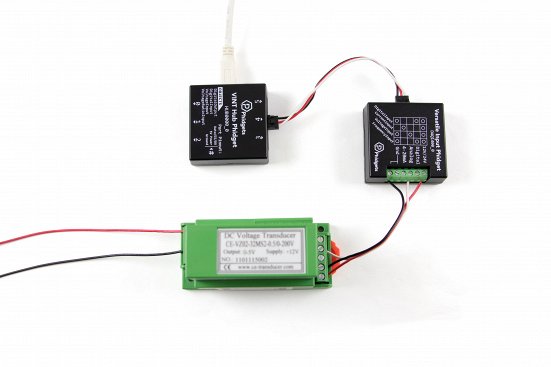

You can use a 12V sensor adapter to connect this sensor to your InterfaceKit or Hub. See the Connection & Compatibility tab for more details.

Product Specifications

Sensor Properties
Sensor Type Voltage (DC)
Sensor Output Type Non-Ratiometric
Input Voltage Min (DC) 0 V DC
Input Voltage Max (DC) 200 V DC
Measurement Error Max 0.5 %
Sensor Response Time Max 400 ms
Electrical Properties
Supply Voltage Min 12 V DC
Supply Voltage Max 12 V DC
Current Consumption Max 4.2 mA
Isolation Voltage (DC) 2.5 kV DC
Output Voltage Min 0 V DC
Output Voltage Max 5 V DC
Physical Properties
Recommended Wire Size 12 - 24 AWG
Operating Temperature Min 0 °C
Operating Temperature Max 50 °C
