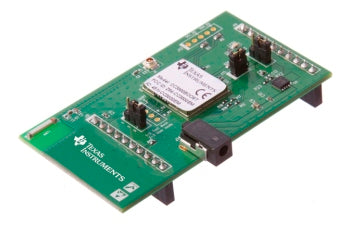

CC3000 BoosterPack

The CC3000 BoosterPack showcases the SimpleLink™ Wi-Fi CC3000 module, a self-contained wireless network processor that simplifies the process of implementing Internet connectivity. SimpleLink Wi-Fi minimizes host microcontroller (MCU) software requirements making it the ideal solution for embedded applications using any low-cost and low-power MCU.

This BoosterPack aids in the evaluation and development of CC3000 solutions and contains the CC3000 module, power supply, and standard BoosterPack headers to connect to MSP430™, Tiva™ C Series, and future TI MCU LaunchPad evaluations kits.

Additionally, this complete platform solution includes software drivers, sample applications, API guide, user documentation and a world-class support community.

Features

• Wireless Network Processor
• IEEE 802.11 b/g
• Embedded IPv4 TCP/IP Stack
• Best-in-class Radio Performance:
• Tx Power: +18dBm at 11Mbps, CCK
• Rx Sensitivity: -86dBm, 8% PER, 11Mbps
• Works with low MIPS, Low Cost Microcontrollers with Compact Memory Footprint:
• FCC/IC/CE certified reference design with dipole or chip antenna HW
• Design Files and Design Guide Available from TI
• Integrated Crystal and Power Management
• Small Form Factor: 16.3mm × 13.5mm × 2mm
• Operating Temperature Range: -20°C to 70°C
• Based in TI's 7th Generation of Proven Wi-Fi Solutions
• Complete Platform Solution Including User and Porting Guides, API Guide, Sample Applications, and Support Community
