GPIO Breakout BoosterPack

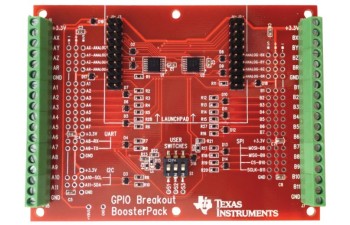

The GPIO Breakout Booster Pack is a low-cost IO breakout board for Tiva™ C Series Launch Pad Booster Pack XL pin out. Every available signal is connected to a 0.1-inch header position in addition to the majority being connected to 3.5-mm screw terminals for easy access when prototyping. Every digital signal is ESD protected and every analog signal is routed through a unity-gain amplifier to simplify development with a Tiva C Series Launchpad.

Features

• 3.5-mm screw terminal for all unused I/O
• 8 analog
• 22 digital
• 2 3.3-V terminals
• 4 ground terminals
• Analog channels equipped with unity-gain amplifiers
• ESD protection on every I/O signal and power rail
• 3-position user DIP switch
• Plated through-holes on a 0.1-inch grid for each I/O signal
• Six 0.125"-diameter mounting holes
• Dual HID gamepad demo
