Digilent

Atlys Spartan-6 FPGA Trainer Board

Atlys Spartan-6 FPGA Trainer Board

SKU:DG-410-178

Regular price Rs. 48,999.00
Regular price Sale price Rs. 48,999.00
Sale Sold out
Taxes included.

Out of stock

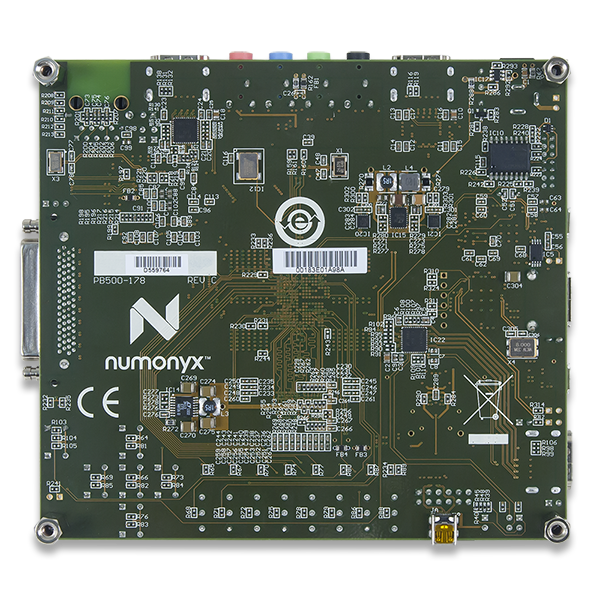

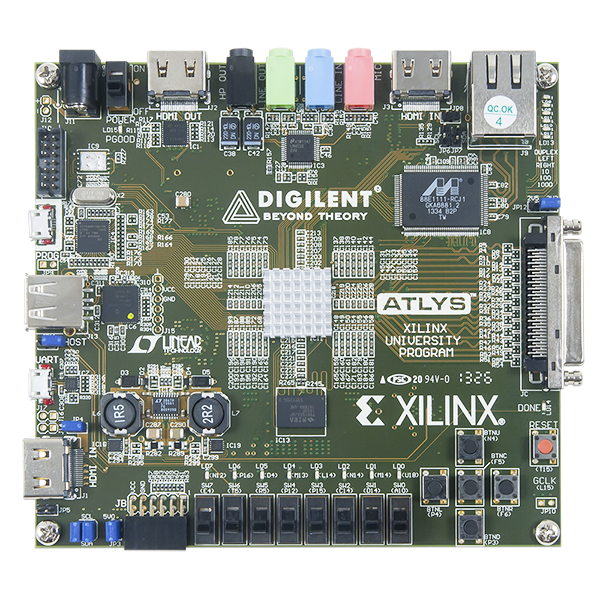

The Atlys circuit board is a complete, ready-to-use digital circuit development platform based on a Xilinx® Spartan®-6 LX45 FPGA. The on-board collection of high-end peripherals, including Gbit Ethernet, HDMI Video, 128 MB DDR2 memory array, audio and USB ports make the Atlys board an ideal host for complete digital systems built around embedded processors like Xilinx's MicroBlaze™. Atlys is fully compatible with all Xilinx CAD tools, including ChipScope™, EDK, and the free WebPACK™, so designs can be completed with no extra costs.

The Atlys board can be communicated with, and programmed by, Digilent Adept software. In addition, the board can be programmed by Xilinx's iMPACT™ using the Digilent Plugin for Xilinx Tools.

Note:

The required USB-UART driver is available for free download from Exar.

Linux® developers: The Atlys board is supported by PetaLinux SDK for an out-of-the-box embedded Linux solution.

Stats:

Processor/IC: Xilinx Spartan-6 LX45 FPGA, 324-pin BGA package

Connector(s):

  • One Vmod (high-speed VHDC) connector
  • One 12-pin Pmod port
  • One RJ-45 connector for 10/100/1000 Ethernet PHY and RS-232 serial
  • Two HDMI video input ports & two HDMI output pirts
  • Two on-board USB2 ports for programming & data transfer
  • AC-97 audio with line-in, line-out, microphone, & headphone

Programming:JTAG programming interfaces compatible with Xilinx's iMPACT and Digilent Adept

Features:

  • Xilinx Spartan-6 LX45 FPGA, 324-pin BGA package

  • Numonyx™
  • Linear Technology™
  • 6,822 slices each containing four 6-input LUTs and eight flip-flops
  • 2.1Mbits of fast block RAM
  • 4 clock tiles (8 DCMs & 4 PLLs)
  • 6 phased-locked loops
  • 58 DSP slices
  • 500 MHz+ clock speeds
  • 128 MB DDR2 16-bit wide data
  • 16 MB x4 SPI Flash for configuration & data storage
  • 100 MHz CMOS oscillator
  • Real time power monitors on all power rails
  • JTAG programming interfaces compatible with Xilinx's iMPACT and Digilent Adept
  • Ships with a 20W power supply and USB cable
  • One RJ-45 connector for 10/100/100 Ethernet PHY and RS-232 serial
  • Two HDMI video input ports & two HDMI output ports
  • AC-97 Codec with line-in, line-out, mic, & headphone
  • Two on-board USB2 ports for programming & data transfer
  • One Vmod (high-speed VHDC) connector
  • One 12-pin Pmod port
  • USB-UART and USB-HID port (for mouse/keyboard)
  • GPIO includes 8 LEDs, 6 buttons, and 8 slide switches
  • 48 I/Os routed to expansion connectors

Included:

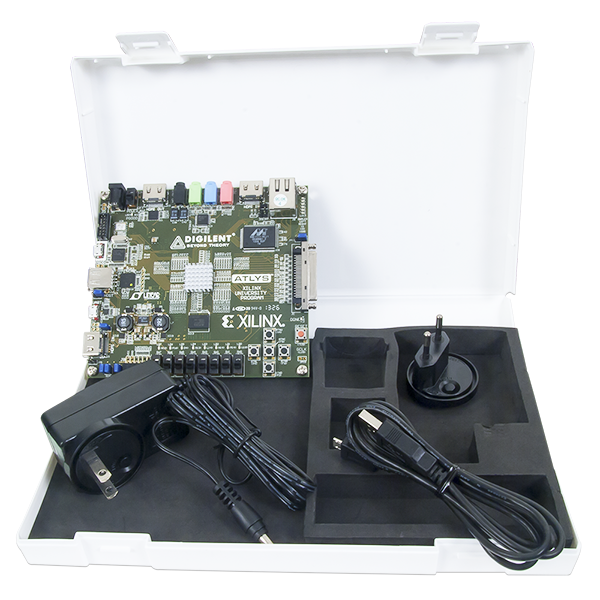

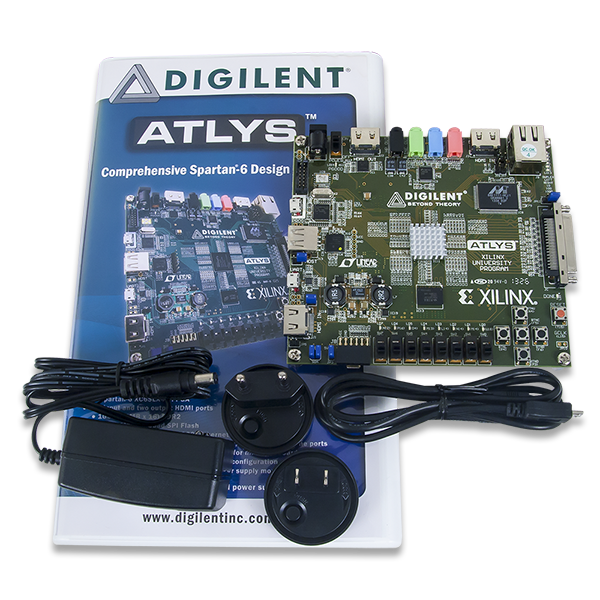

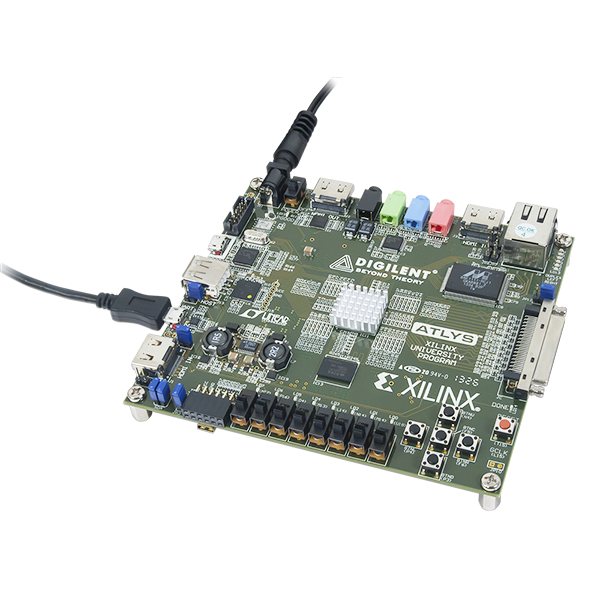

  • Atlys board
  • Custom Digilent cardboard box with protective foam
  • One USB A to micro-B cable
  • One external power supply
