Atlas Scientific

Atlas Scientific Wi-Fi Pool Kit

Atlas Scientific Wi-Fi Pool Kit

AS-Wi-Fi-PK

Rs. 59,449.00
Rs. 59,449.00
Sale Sold out
Tax included.

Out of stock

The Wi-Fi Pool Kit reads pH, ORP, and temperature. The pH readings are automatically temperature compensated and uploaded to ThingSpeak, which allows for remote readings on a phone, tablet or PC. The code and instructions are available in the download section of this page.

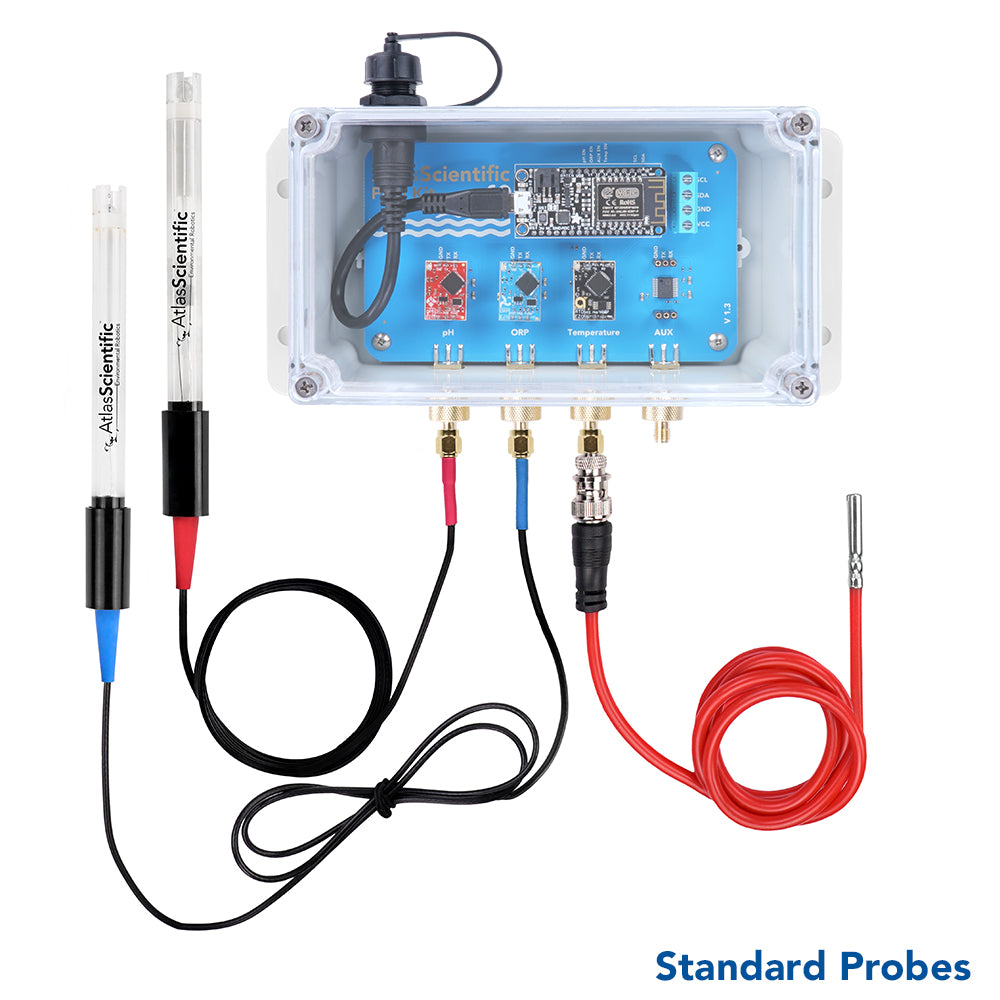

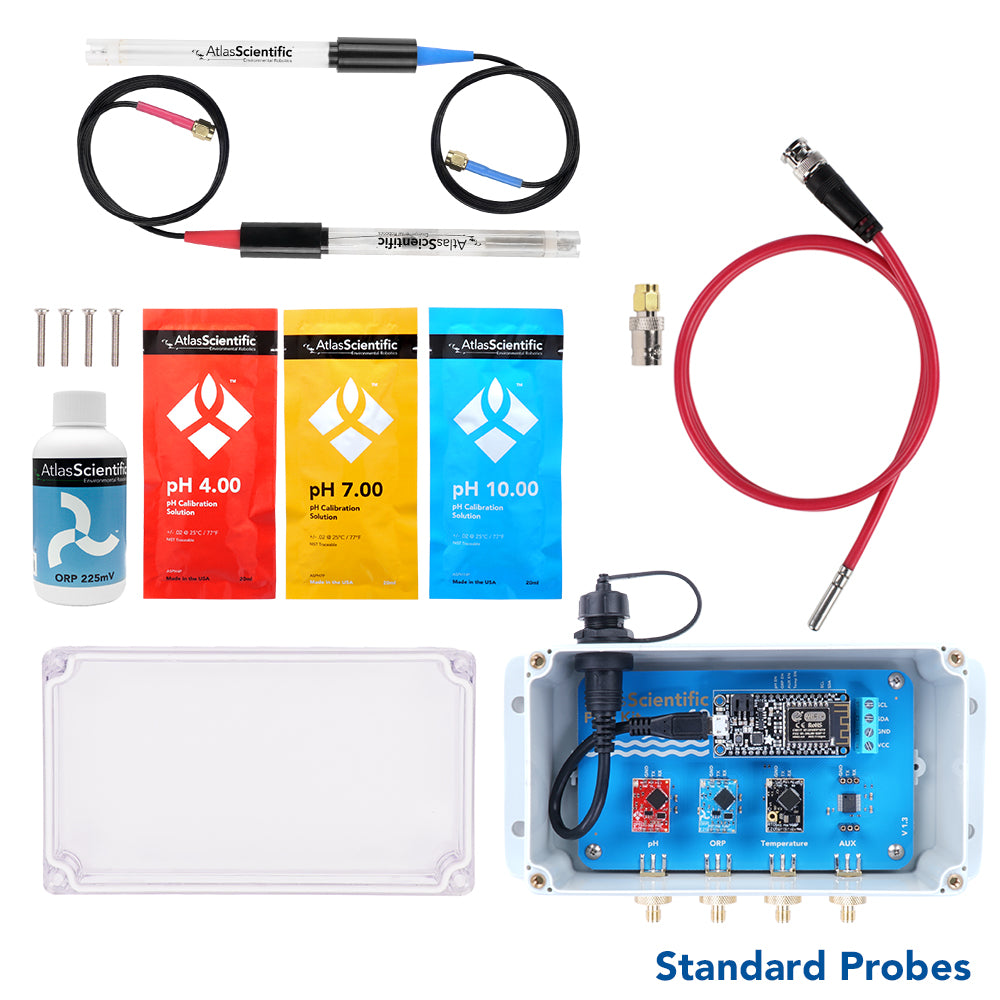

The Wi-Fi Pool Kit comes with:

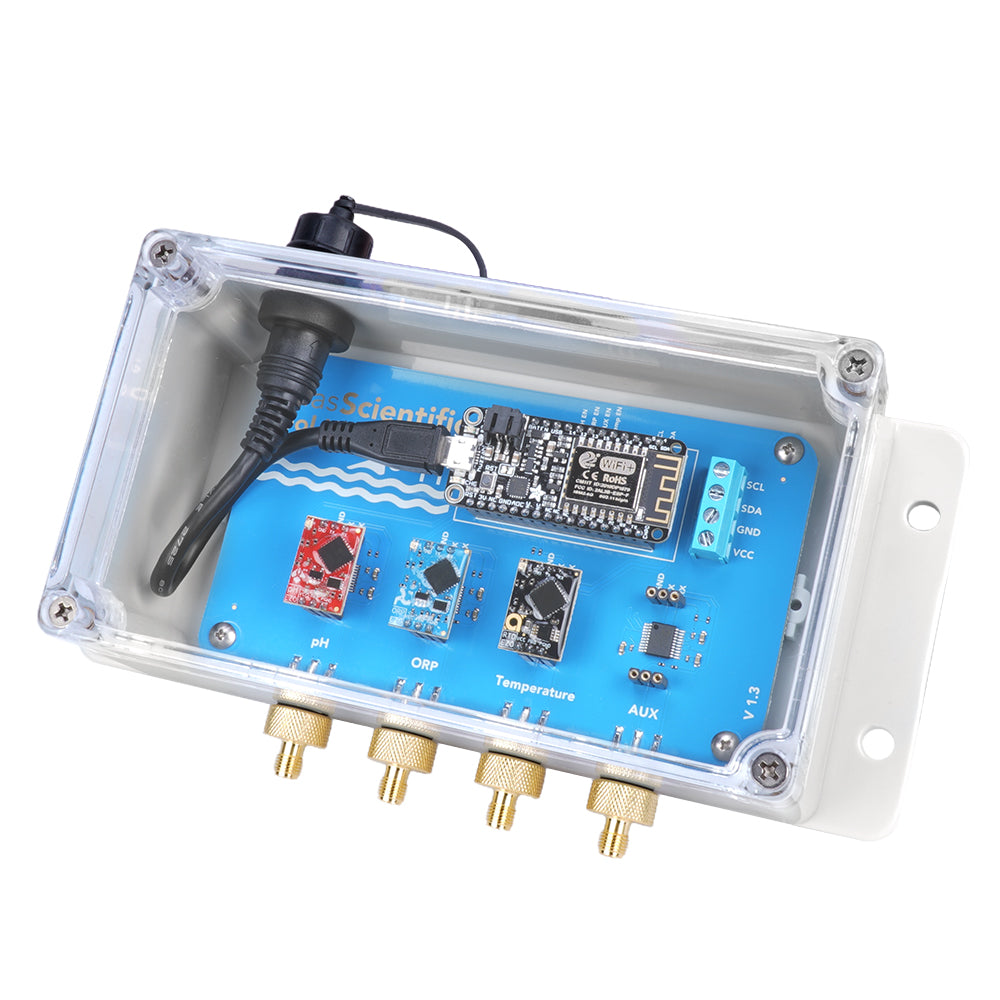

1x Enclosure with hardware assembled within
1x EZO pH circuit
1x EZO ORP circuit
1x EZO RTD Temperature circuit

1x Consumer grade pH probe
1x Consumer grade ORP probe
1x PT-1000 temperature probe

OR

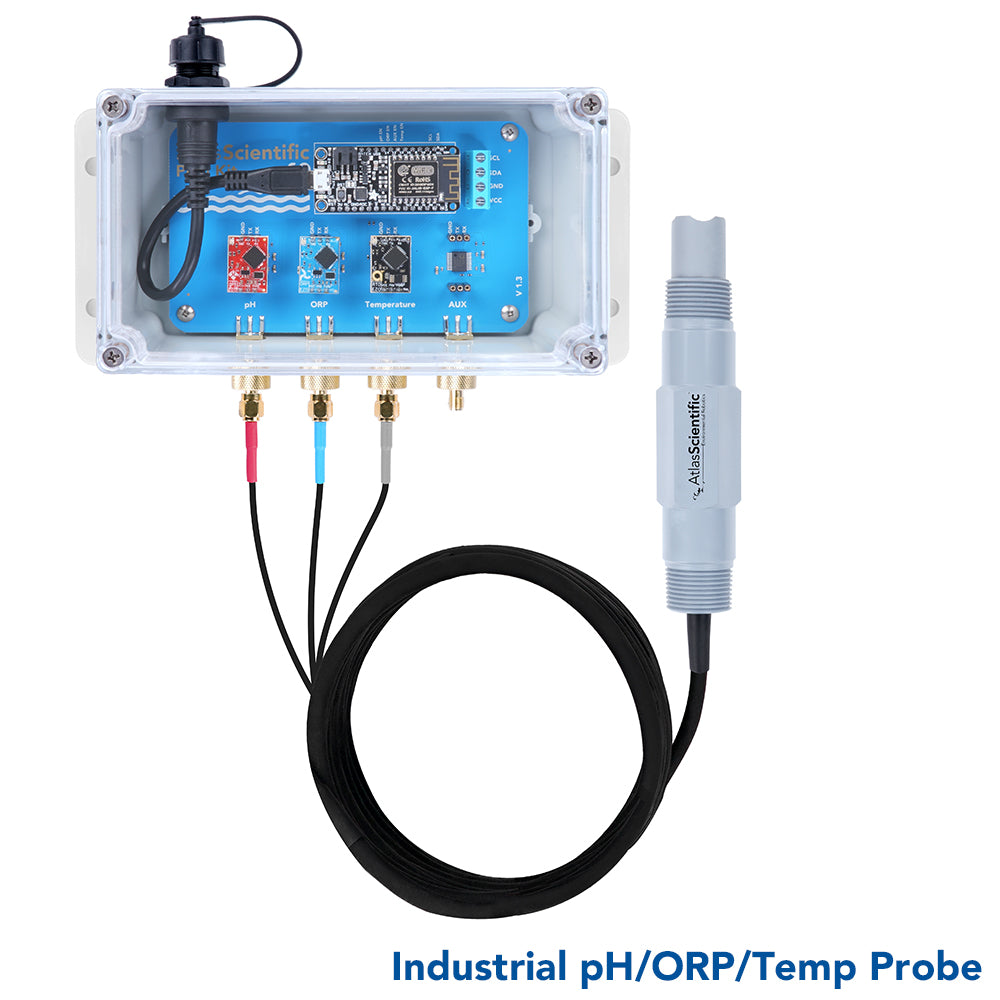

1x Industrial pH/ORP/Temp probe

1x ORP 225mV calibration solution
6x 20ml calibration solution pouches (2x pH 4, 2x pH 7 and 2x pH 10)

Specification

• No soldering required
• No programming necessary
• Automatically uploads data to ThingSpeak cloud
• Access to data on phone, tablet or PC
• Auto temperature compensation for pH
• Pre-drilled / wall mountable case with clear top
• pH range 0 − 14 / resolution 0.01
• ORP range +/-1100mV
• Operating voltage : 5V
• Current consumption : 280mA at 5V
• Three electrically isolated slots (pH, ORP and AUX)
• One auxiliary (AUX) slot for an additional sensor
• Calibration solutions included.
• I2C mode only

Related Documents

EZO-PMP™ Dosing Pump Stand Wi-Fi Pool Kit Setup Guide

EZO™ pH Circuit Wi-Fi Pool Kit - Thingspeak code

EZO™ pH Circuit Connecting probes into a pipe
