Atlas Scientifics Industrial Monitoring Kit

The Industrial Monitoring Kit is a multi-parameter process monitor, capable of reading from eight probes at once. Real-time values are easily visible through the 4×40 character LCD display, with a simple and intuitive menu screen for calibration and temperature compensation. Real-time values can also be transmitted via 4-20mA signals or Serial data protocol. The modular design allows for the operator to quickly add in any combination of probes. This system can be used for basic water quality monitoring or integrated into a fully automated process control system.

The Industrial Monitoring Kit can be configured for Serial Data output or analog 4-20mA output.

Data output
Serial – RS232 data communication
4-20mA – Analog output

Probes, circuits, calibration & isolation
None – No probes, circuits, calibration solutions, and isolators
Fully loaded – Comes with 1x EZO-pH, 1x EZO-DO, 1x EZO-EC, 1x EZO-ORP
and 3x EZO-RTD, their respective industrial probes, calibration solutions,
7x isolators, and 8x Male BNC Connectors with Terminal Screws.

If you choose “Fully Loaded” option, you will not need to include additional isolators.

Isolators
Choose the amount of isolators that you’ll need.
The following sensors need isolation:
pH, ORP, D.O. & EC

Please contact us for any questions or quotes.

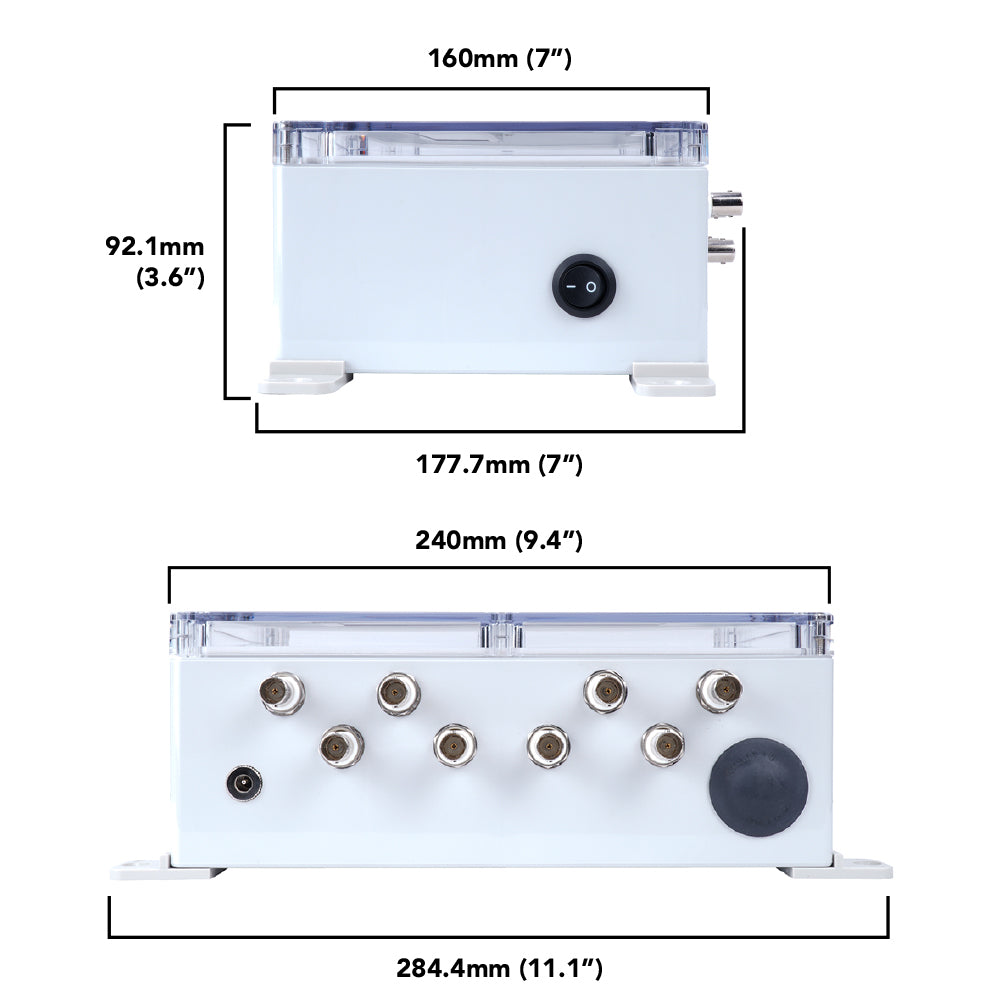

Specifications:

Documents:

• Industrial Monitoring Kit Datasheet

• Industrial Monitoring Kit 3D model (*.step)

• CE Certificate
