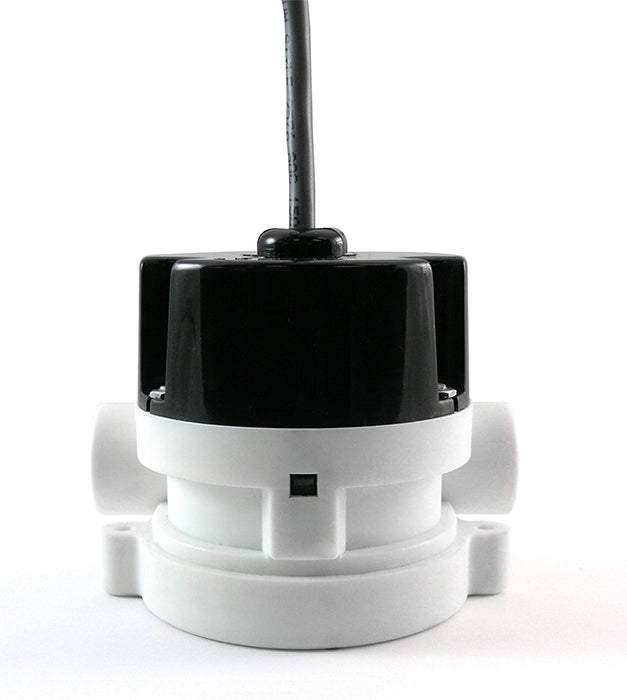

Atlas Scientific 1/4" Flow Meter

Description

Specification

• Tinned lead connector
• Accurate to ± 5%
• Material: Polypropylene

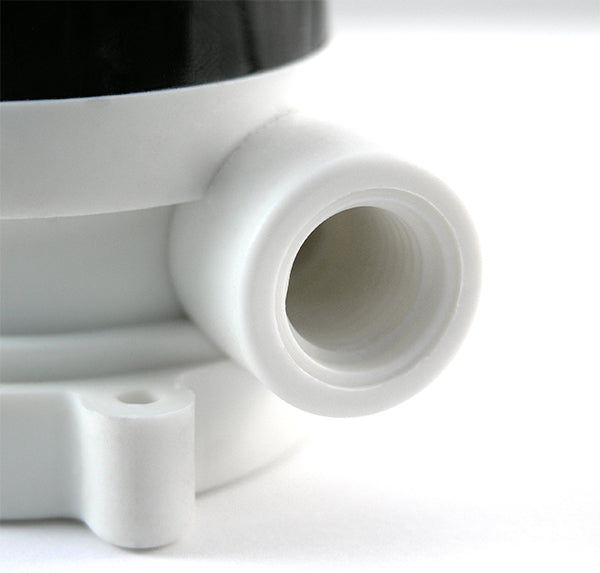

• 1/4” Female NPT Input/Output
• Minimum flow rate 378 mL / min (0.1 GPM)
• Maximum flow rate 19 L / min (5 GPM)
• Weighs 101.5g
• Operating temperature -29º C to 82º C (-20º F to 180º F)
• Max operating pressure 689 KPA (100 PSI)
• Max viscosity 200 SSU
• 71.1cm (28”) long 3 lead cable

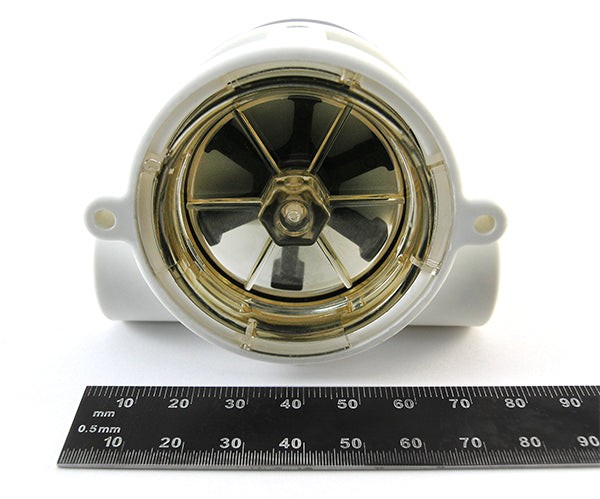

• Dimensions 77.5mm X 58.5mm (3.03" X 2.30")
• Food Safe
• Gasoline Safe
• Diesel Safe
• Kerosene Safe

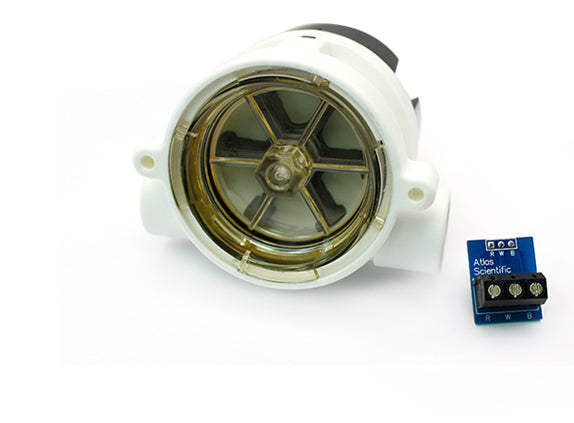

• Includes 1 Flow Connector Board (soldering required)
