Atlas Scientific

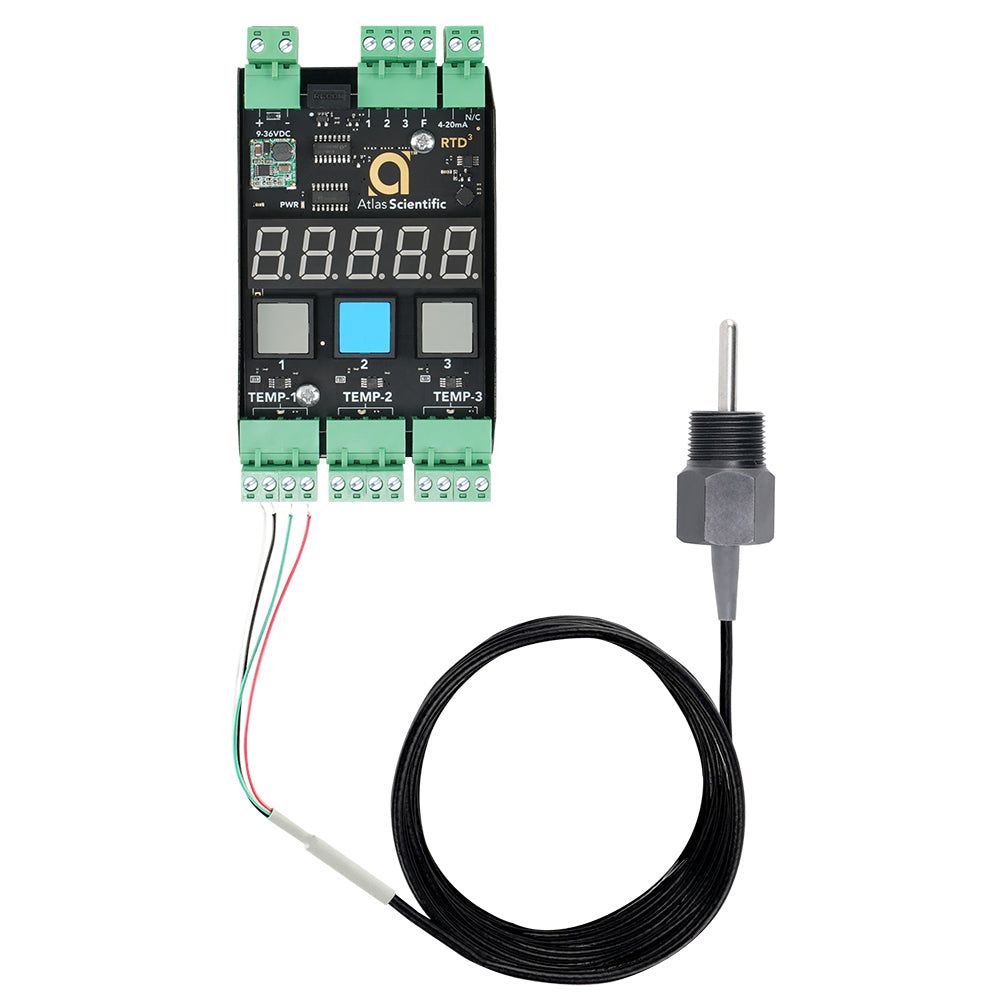

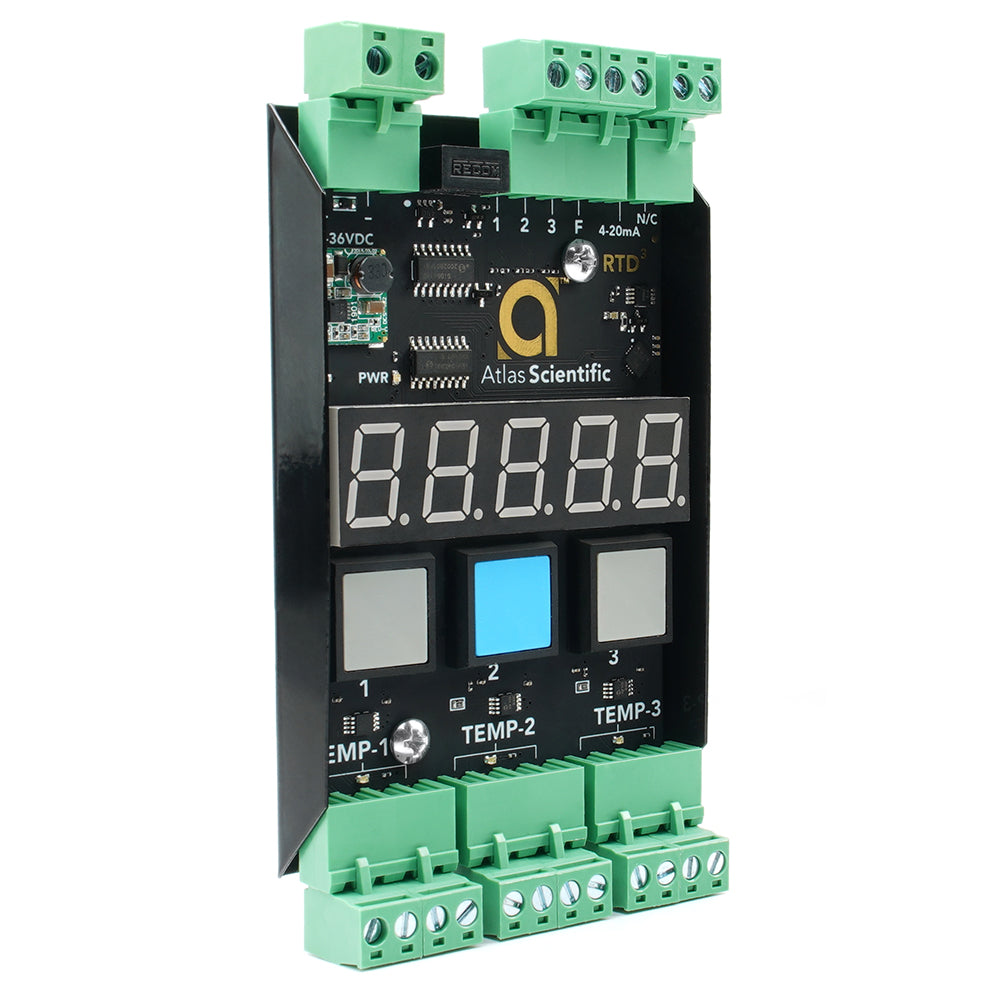

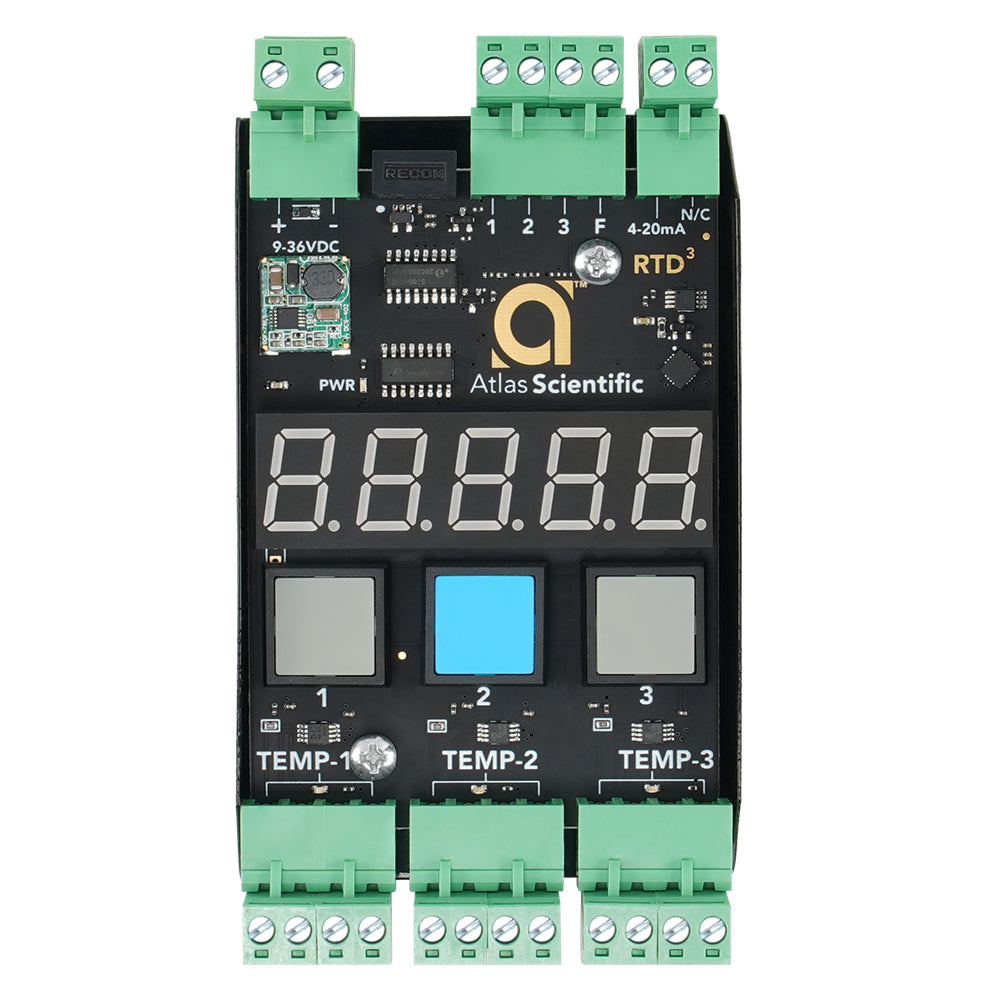

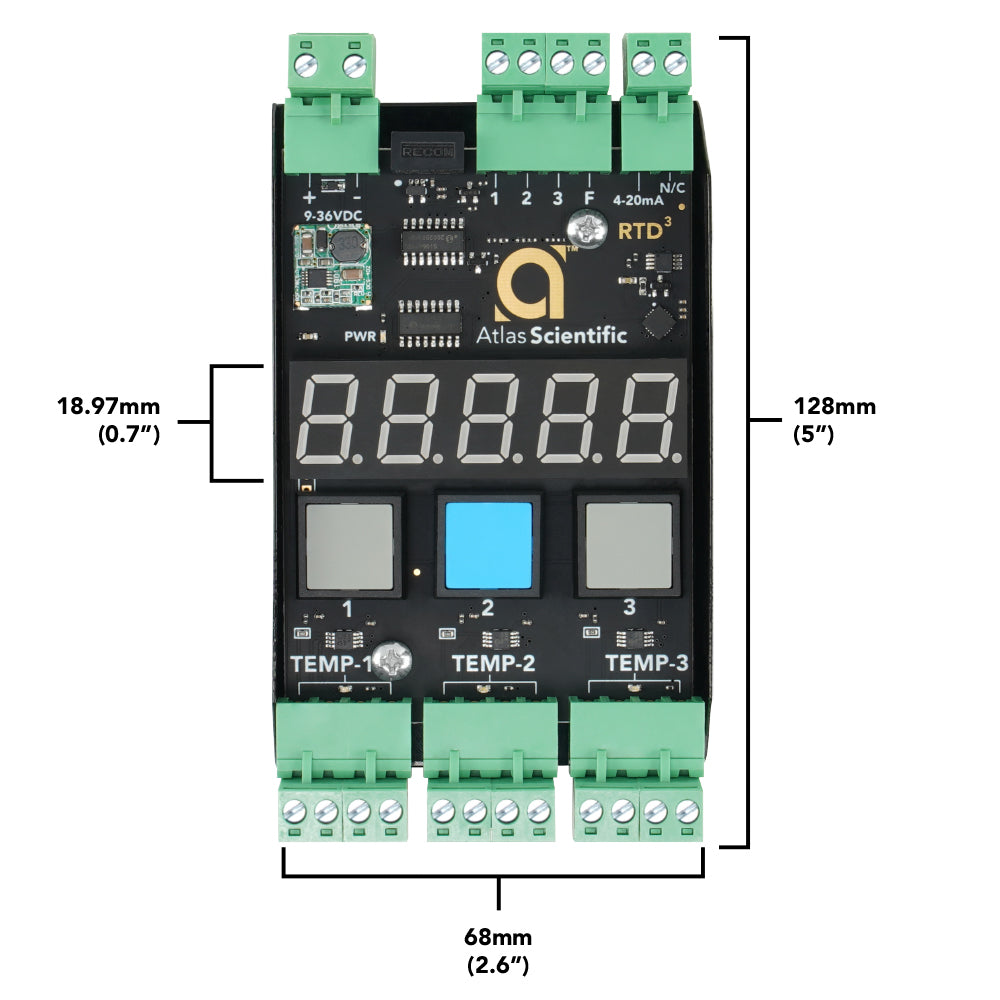

RTD3 Industrial Temperature Transmitter
RTD3 Industrial Temperature Transmitter
SKU:AS-RTD3-IND
Regular price
Rs. 15,939.00
Regular price
Sale price
Rs. 15,939.00
Unit price
/
per
Taxes included.
Shipping calculated at checkout.
Couldn't load pickup availability
Share
If you have ever had to add an RTD module to a PLC, then you know firsthand just how complicated and expensive they can be. The RTD3 transmitter is designed to be a simple and cost-effective alternative to traditional RTD modules for PLCs. The RTD3 lets you connect and calibrate up to 3 temperature probes simultaneously.
Use your PLCs 4-20mA input to get the temperature readings.
The large display makes it easy to see the temperature and know which probe the reading is coming from.
Specification
Reads | Temperature (up to 3 probes) |
Full Range | -126 °C to 1,254 °C |
Range with Atlas industrial probe | -55 °C to 220 °C |
Accuracy | +/- 0.1 °C |
Scale | °C or °F |
Calibration | Single point @0 °C |
Supported probes | Any type & brand PT-100 or PT-1000 RTD |

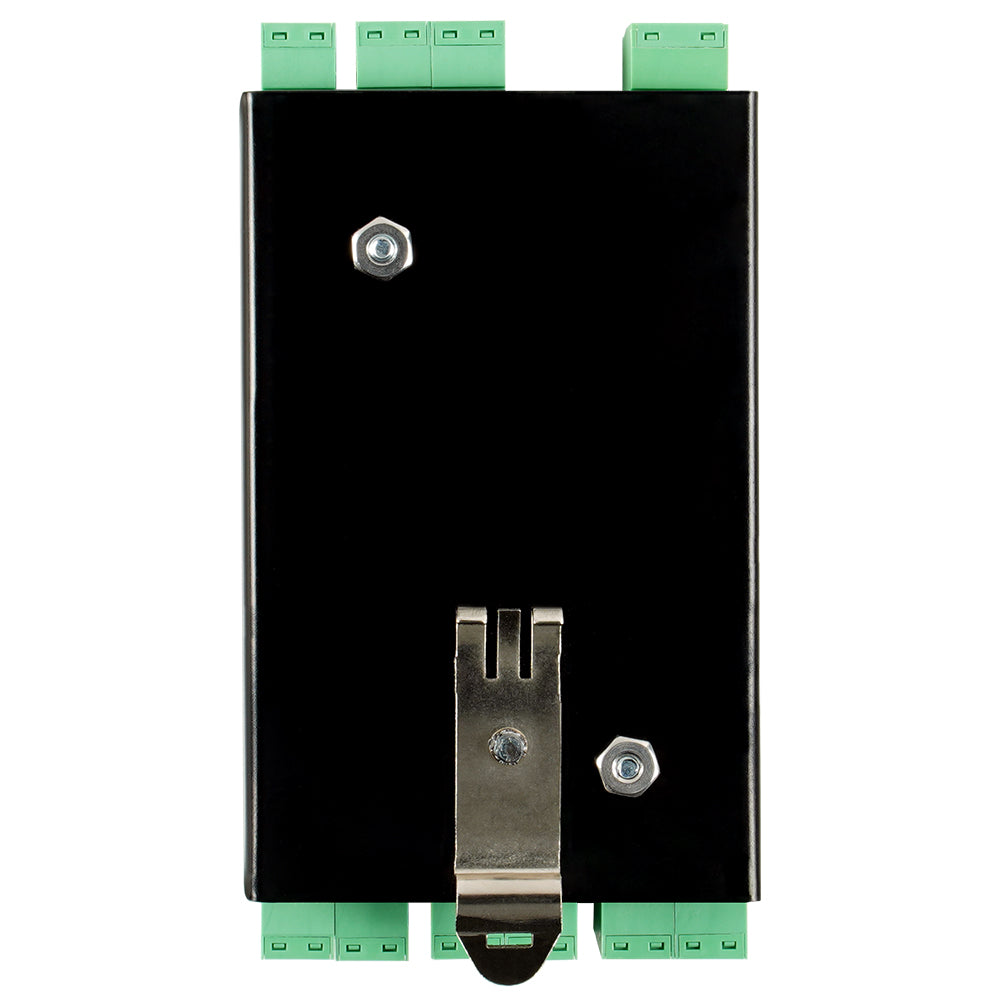

Mount | 35mm Din rail |
Output | 4 − 20mA |
Operating voltage | 9VDC − 36VDC |
