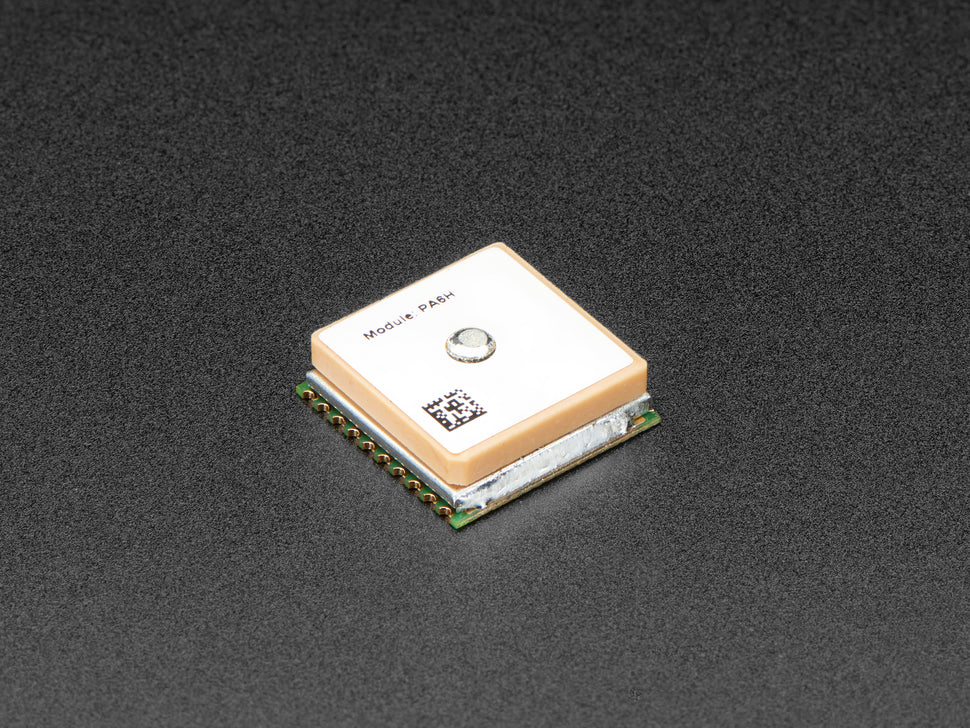

Ultimate GPS Module - 66 channel w/10 Hz updates

For those who want to integrate our awesome Ultimate GPS module into their own projects, we now have the raw sub-module available. Don't be fooled by it's small size, this is a very sensitive, high quality GPS module with all the extras you could want and more at under 6 grams!

It's got everything you want and more:

• -165 dBm sensitivity, 10 Hz updates, 66 channels
• Ultra low power usage: 20mA current draw while tracking
• 3.3V operation,
• RTC battery-compatible
• Built-in datalogging
• PPS output on fix
• We have received reports that it works up to ~32Km altitude (the GPS theoretically does not have a limit until 40Km)
• Internal patch antenna + connection for optional external active antenna
• Fix status output
• Ultra small size: only 16mm x 16mm x 5mm and 4 grams

This item is just the GPS module itself, no breakout board or other components included. The module can be soldered by hand without too much difficulty, we have it in our Eagle Library (GPS_FGPMMOPA6H) to make it easy to use.

Technical details

• Satellites: 22 tracking, 66 searching
• Ultra small size: only 16mm x 16mm x 5mm and 4 grams
• Update rate: 1 to 10 Hz
• Position Accuracy: < 3 meters (all GPS technology has about 3m accuracy)
• Velocity Accuracy: 0.1 meters/s
• Warm/cold start: 34 seconds
• Acquisition sensitivity: -145 dBm
• Tracking sensitivity: -165 dBm
• Maximum Altitude for PA6H: tested at 27,000 Meters
• Maximum Velocity: 515m/s
• Vin range: 3.0-4.3VDC
• MTK3339 Operating current: 25mA tracking, 20 mA current draw during navigation
• Output: NMEA 0183, 9600 baud default
• DGPS/WAAS/EGNOS supported
• FCC E911 compliance and AGPS support (Offline mode : EPO valid up to 14 days )
• Up to 210 PRN channels
• Jammer detection and reduction
• Multi-path detection and compensation
